PACKAGE DIMENSIONS. SC−88A (SC−70 5 Lead), 1.25x2. SYMBOL. MIN. NOM. MAX. TOP VIEW. SIDE VIEW. END VIEW. Notes:
Model Line for this Datasheet
Text Version of Document
MECHANICAL CASE OUTLINE

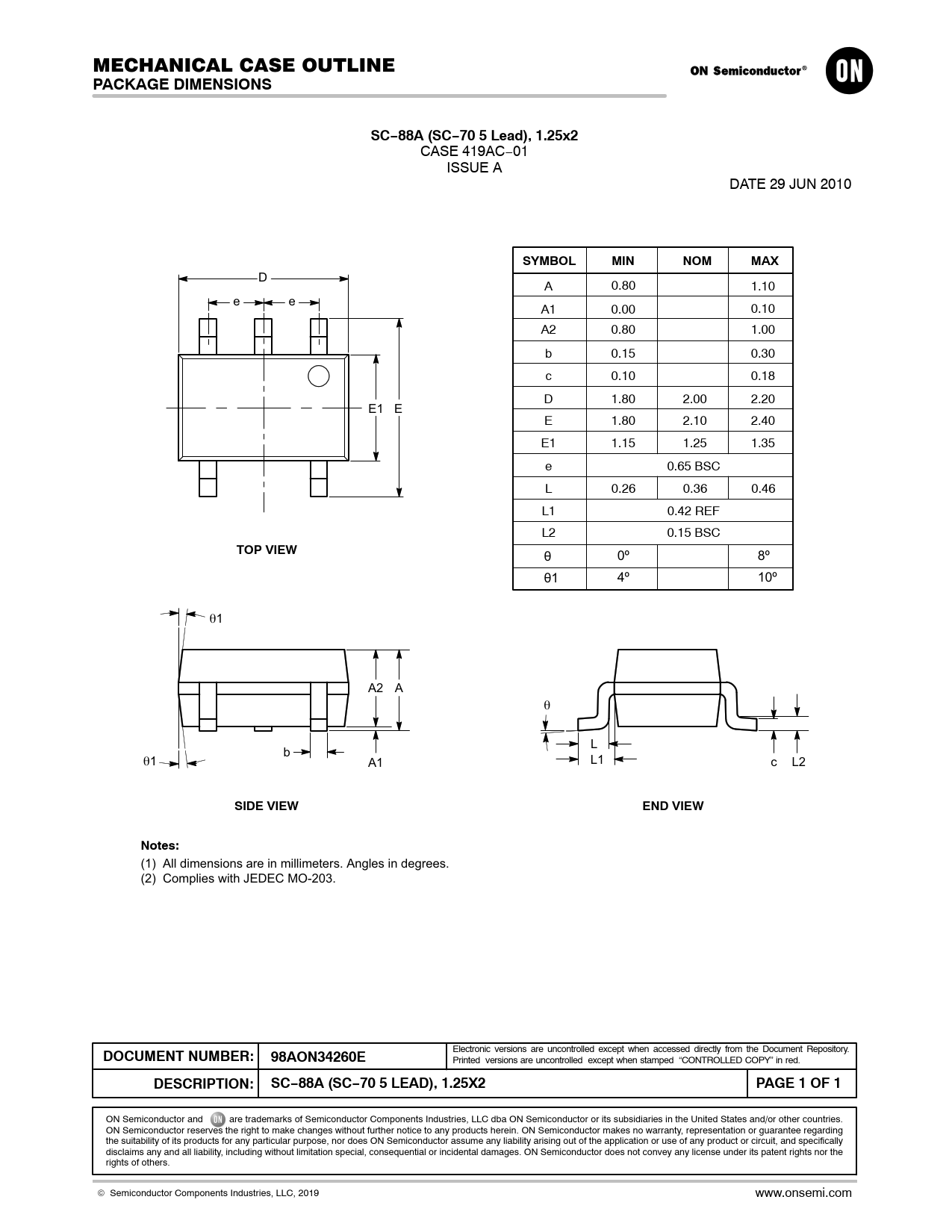

PACKAGE DIMENSIONS SC−88A (SC−70 5 Lead), 1.25x2
CASE 419AC−01 ISSUE A DATE 29 JUN 2010
SYMBOL MIN NOM MAX
D A 0.80 1.10 e e A1 0.00 0.10 A2 0.80 1.00 b 0.15 0.30 c 0.10 0.18 D 1.80 2.00 2.20 E1 E E 1.80 2.10 2.40 E1 1.15 1.25 1.35 e 0.65 BSC L 0.26 0.36 0.46 L1 0.42 REF L2 0.15 BSC
TOP VIEW
θ 0º 8º θ1 4º 10º q1 A2 A q L b L1 q1 A1 c L2
SIDE VIEW END VIEW Notes:
(1) All dimensions are in millimeters. Angles in degrees. (2) Complies with JEDEC MO-203.
DOCUMENT NUMBER: 98AON34260E
Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.
DESCRIPTION: SC−88A (SC−70 5 LEAD), 1.25X2 PAGE 1 OF 1
