Datasheet VCNL3036X01 (Vishay)
| Manufacturer | Vishay |
| Description | High Resolution Digital Proximity Sensor With I2C Interface |
| Pages / Page | 16 / 1 — VCNL3036X01. High Resolution Digital Proximity Sensor With I2C Interface. … |
| File Format / Size | PDF / 239 Kb |
| Document Language | English |
VCNL3036X01. High Resolution Digital Proximity Sensor With I2C Interface. FEATURES. PROXIMITY FUNCTION
Model Line for this Datasheet
Text Version of Document

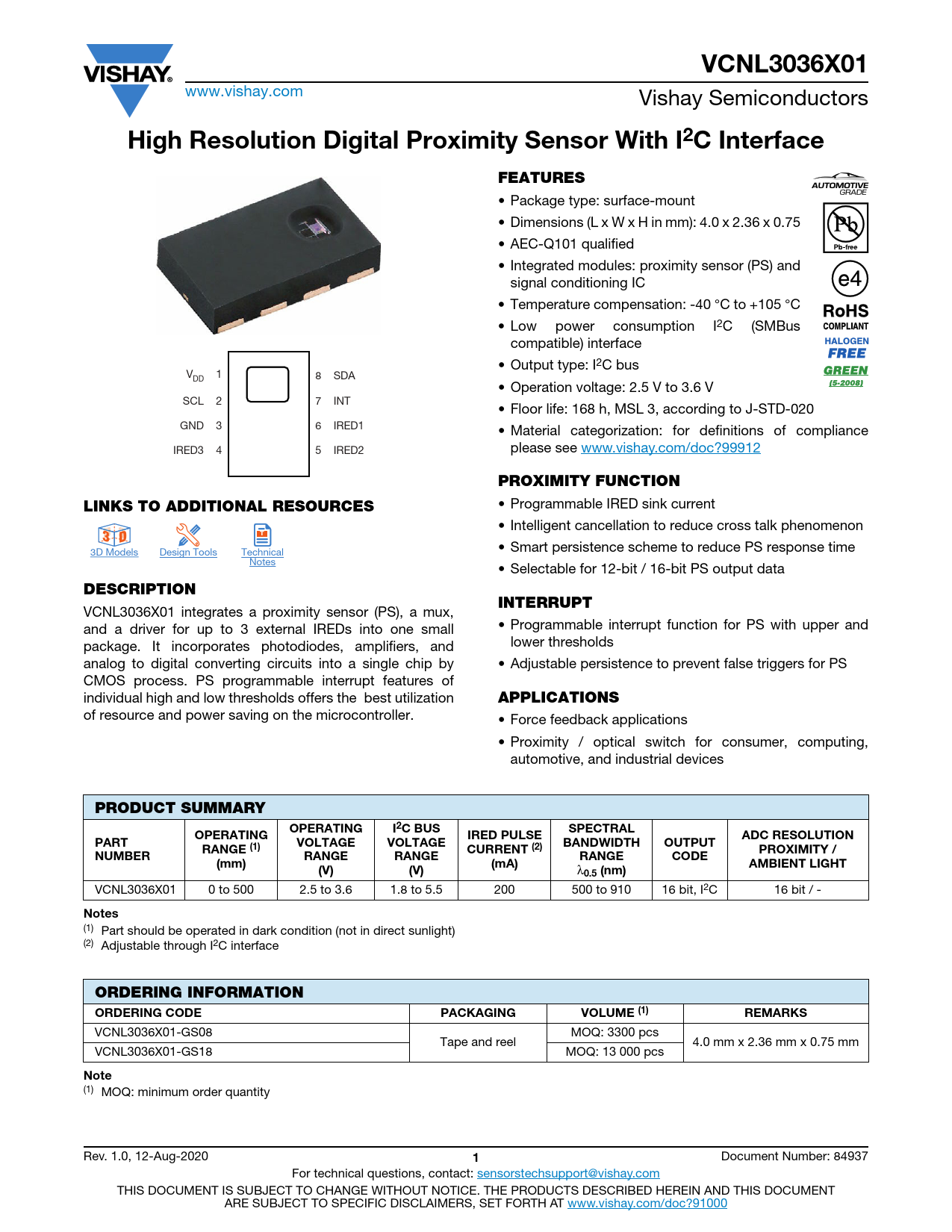

VCNL3036X01
www.vishay.com Vishay Semiconductors
High Resolution Digital Proximity Sensor With I2C Interface FEATURES
• Package type: surface-mount • Dimensions (L x W x H in mm): 4.0 x 2.36 x 0.75 • AEC-Q101 qualified • Integrated modules: proximity sensor (PS) and signal conditioning IC • Temperature compensation: -40 °C to +105 °C • Low power consumption I2C (SMBus compatible) interface • Output type: I2C bus V 1 DD 8 SDA • Operation voltage: 2.5 V to 3.6 V SCL 2 7 INT • Floor life: 168 h, MSL 3, according to J-STD-020 GND 3 6 IRED1 • Material categorization: for definitions of compliance IRED3 4 5 IRED2 please see www.vishay.com/doc?99912
PROXIMITY FUNCTION LINKS TO ADDITIONAL RESOURCES
• Programmable IRED sink current • Intelligent cancellation to reduce cross talk phenomenon
D 3 3 D T
• Smart persistence scheme to reduce PS response time 3D Models Design Tools Technical Notes • Selectable for 12-bit / 16-bit PS output data
DESCRIPTION INTERRUPT
VCNL3036X01 integrates a proximity sensor (PS), a mux, and a driver for up to 3 external IREDs into one small • Programmable interrupt function for PS with upper and package. It incorporates photodiodes, amplifiers, and lower thresholds analog to digital converting circuits into a single chip by • Adjustable persistence to prevent false triggers for PS CMOS process. PS programmable interrupt features of individual high and low thresholds offers the best utilization
APPLICATIONS
of resource and power saving on the microcontroller. • Force feedback applications • Proximity / optical switch for consumer, computing, automotive, and industrial devices
PRODUCT SUMMARY OPERATING I2C BUS SPECTRAL OPERATING IRED PULSE ADC RESOLUTION PART VOLTAGE VOLTAGE BANDWIDTH OUTPUT RANGE (1) CURRENT (2) PROXIMITY / NUMBER RANGE RANGE RANGE CODE (mm) (mA) AMBIENT LIGHT (V) (V)
λ
0.5 (nm)
VCNL3036X01 0 to 500 2.5 to 3.6 1.8 to 5.5 200 500 to 910 16 bit, I2C 16 bit / -
Notes
(1) Part should be operated in dark condition (not in direct sunlight) (2) Adjustable through I2C interface
ORDERING INFORMATION ORDERING CODE PACKAGING VOLUME (1) REMARKS
VCNL3036X01-GS08 MOQ: 3300 pcs Tape and reel 4.0 mm x 2.36 mm x 0.75 mm VCNL3036X01-GS18 MOQ: 13 000 pcs
Note
(1) MOQ: minimum order quantity Rev. 1.0, 12-Aug-2020
1
Document Number: 84937 For technical questions, contact: sensorstechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
