PERFORMANCE CHARACTERISTICS

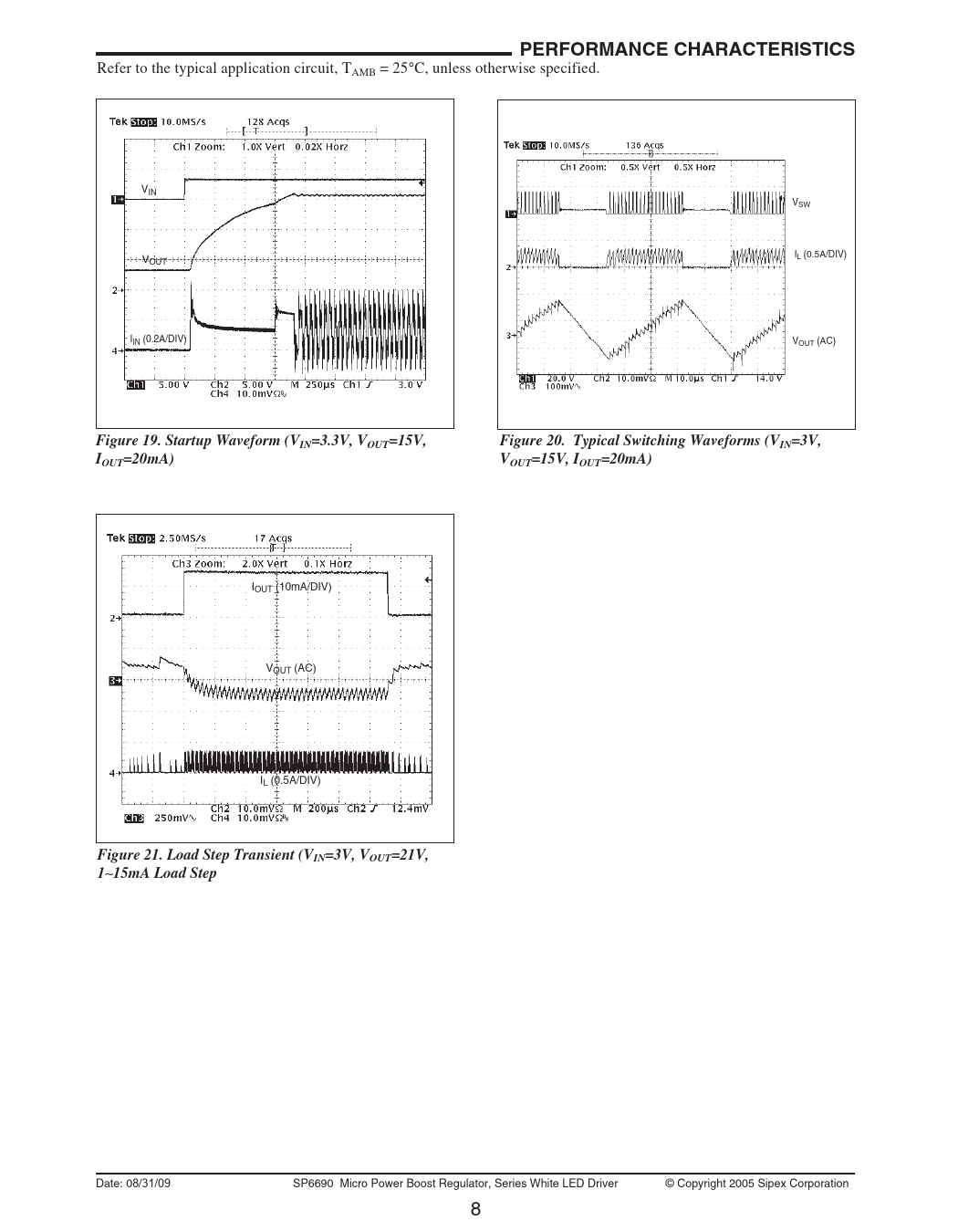

Refer to the typical application circuit, TAMB = 25°C, unless otherwise specified. VIN VSW IL (0.5A/DIV) VOUT IIN (0.2A/DIV) VOUT (AC)
Figure 19. Startup Waveform (VIN=3.3V, VOUT=15V, Figure 20. Typical Switching Waveforms (VIN=3V, IOUT=20mA) VOUT=15V, IOUT=20mA)
IOUT (10mA/DIV) VOUT (AC) IL (0.5A/DIV)
Figure 21. Load Step Transient (VIN=3V, VOUT=21V, 1
∼
15mA Load Step
Date: 08/31/09 SP6690 Micro Power Boost Regulator, Series White LED Driver © Copyright 2005 Sipex Corporation 8
