Datasheet DPO2039DABQ-13 (Diodes) - 2
| Manufacturer | Diodes |
| Description | 4-CH Over-Voltage Protection for CC/DIFF Pins on USB Type-C |
| Pages / Page | 13 / 2 — DPO2039DABQ-13. Typical Application Circuit. 2039. BQ-. Figure 1. Typical … |
| File Format / Size | PDF / 1.0 Mb |
| Document Language | English |
DPO2039DABQ-13. Typical Application Circuit. 2039. BQ-. Figure 1. Typical Application Circuit. Pin Descriptions. Pin Number. Pin Name
Model Line for this Datasheet
Text Version of Document
DPO2039DABQ-13 Typical Application Circuit
VCC CSYS 1 1 uF μF
T
15 U 14
C
S B
U
VSYS GND T VDIFF1C 1 12 VDIFF1S y DIFF1
D
DIFF1 DIFF1C DIFF1S p e VDIFF2C 11 To system - 2 VDIFF2S
O
C DIFF2 DIFF2C DIFF2S DIFF2
R
R e VCC1C 3 DP
DP
O
O
203
2039
9D
DA
AB
BQ-
Q
13
10 VCC1S c CC1 CC1C CC1S CC1 e
P
p VCC2C USB PD controller at 4 CC2C 9 CC2 CC2S VCC2S CC2 c
W
el
E
NC NC CB FAULTB
N
5 x 6 x 7 8 VCC RFAULTB 10kΩ

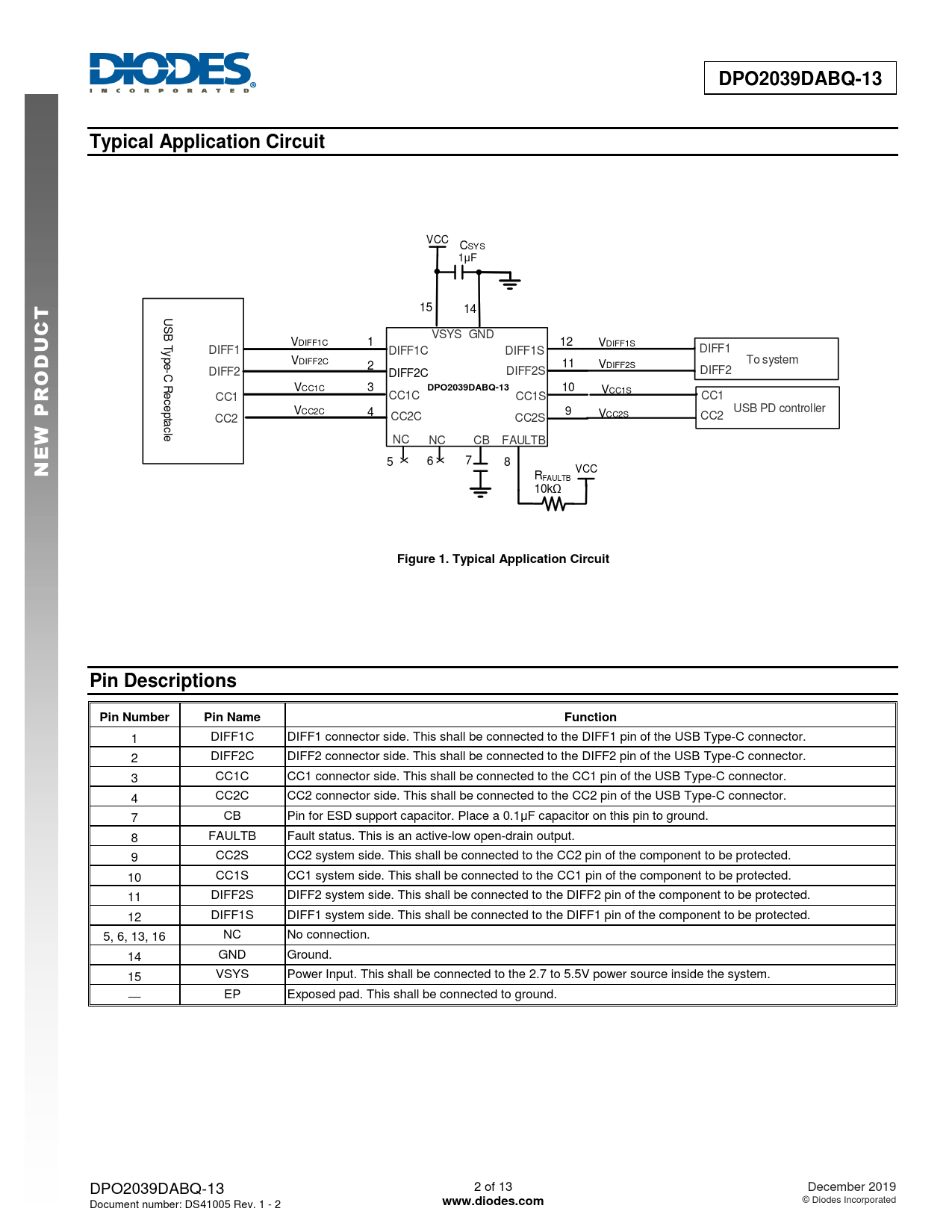

Figure 1. Typical Application Circuit Pin Descriptions Pin Number Pin Name Function
1 DIFF1C DIFF1 connector side. This shall be connected to the DIFF1 pin of the USB Type-C connector. 2 DIFF2C DIFF2 connector side. This shall be connected to the DIFF2 pin of the USB Type-C connector. 3 CC1C CC1 connector side. This shall be connected to the CC1 pin of the USB Type-C connector. 4 CC2C CC2 connector side. This shall be connected to the CC2 pin of the USB Type-C connector. 7 CB Pin for ESD support capacitor. Place a 0.1μF capacitor on this pin to ground. 8 FAULTB Fault status. This is an active-low open-drain output. 9 CC2S CC2 system side. This shall be connected to the CC2 pin of the component to be protected. 10 CC1S CC1 system side. This shall be connected to the CC1 pin of the component to be protected. 11 DIFF2S DIFF2 system side. This shall be connected to the DIFF2 pin of the component to be protected. 12 DIFF1S DIFF1 system side. This shall be connected to the DIFF1 pin of the component to be protected. 5, 6, 13, 16 NC No connection. 14 GND Ground. 15 VSYS Power Input. This shall be connected to the 2.7 to 5.5V power source inside the system. — EP Exposed pad. This shall be connected to ground. DPO2039DABQ-13 2 of 13 December 2019 Document number: DS41005 Rev. 1 - 2
