SAM9X60 SIP. SDR-SDRAM Features. Datasheet
Model Line for this Datasheet
Text Version of Document
SAM9X60 SIP SDR-SDRAM Features 2. SDR-SDRAM Features

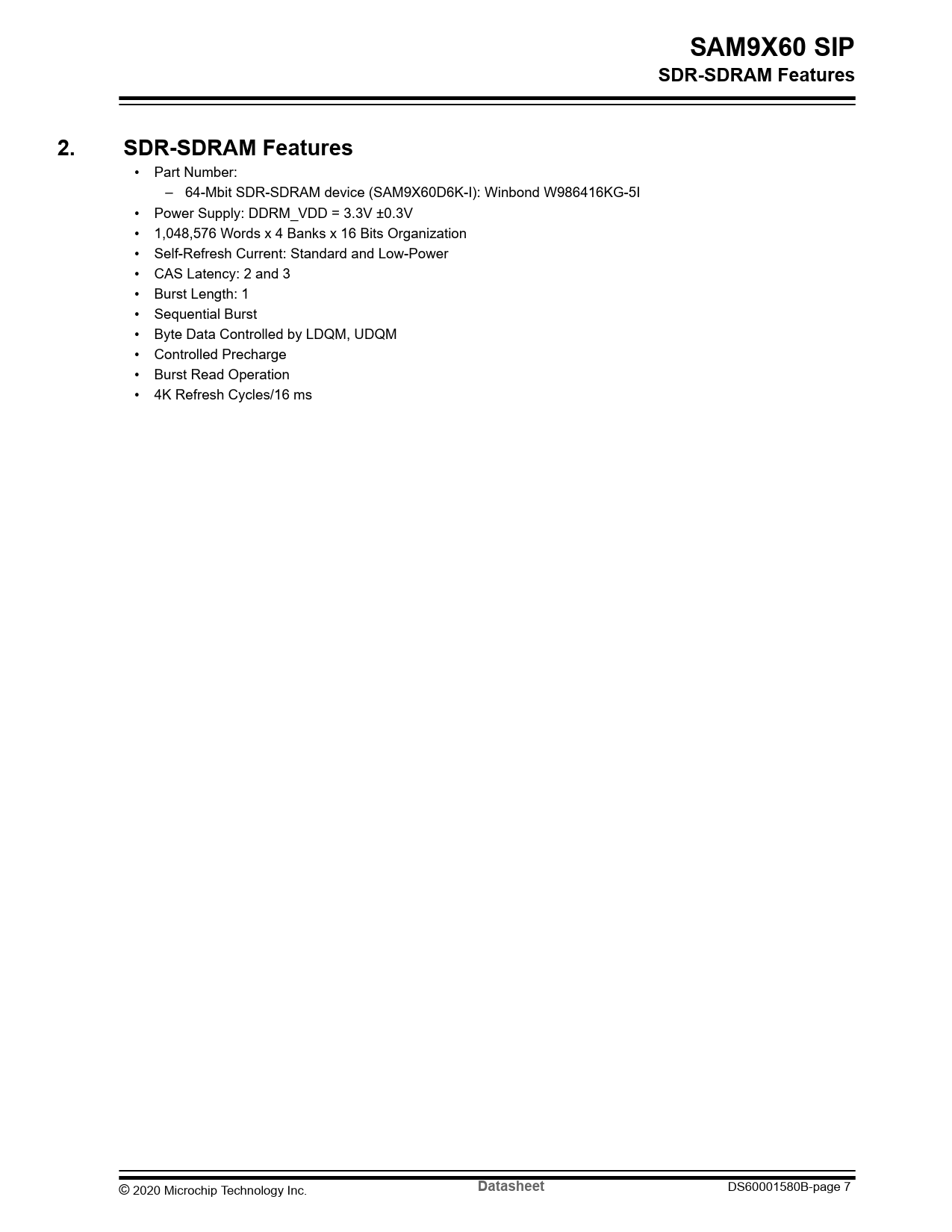

• Part Number: – 64-Mbit SDR-SDRAM device (SAM9X60D6K-I): Winbond W986416KG-5I • Power Supply: DDRM_VDD = 3.3V ±0.3V • 1,048,576 Words x 4 Banks x 16 Bits Organization • Self-Refresh Current: Standard and Low-Power • CAS Latency: 2 and 3 • Burst Length: 1 • Sequential Burst • Byte Data Controlled by LDQM, UDQM • Controlled Precharge • Burst Read Operation • 4K Refresh Cycles/16 ms © 2020 Microchip Technology Inc.
