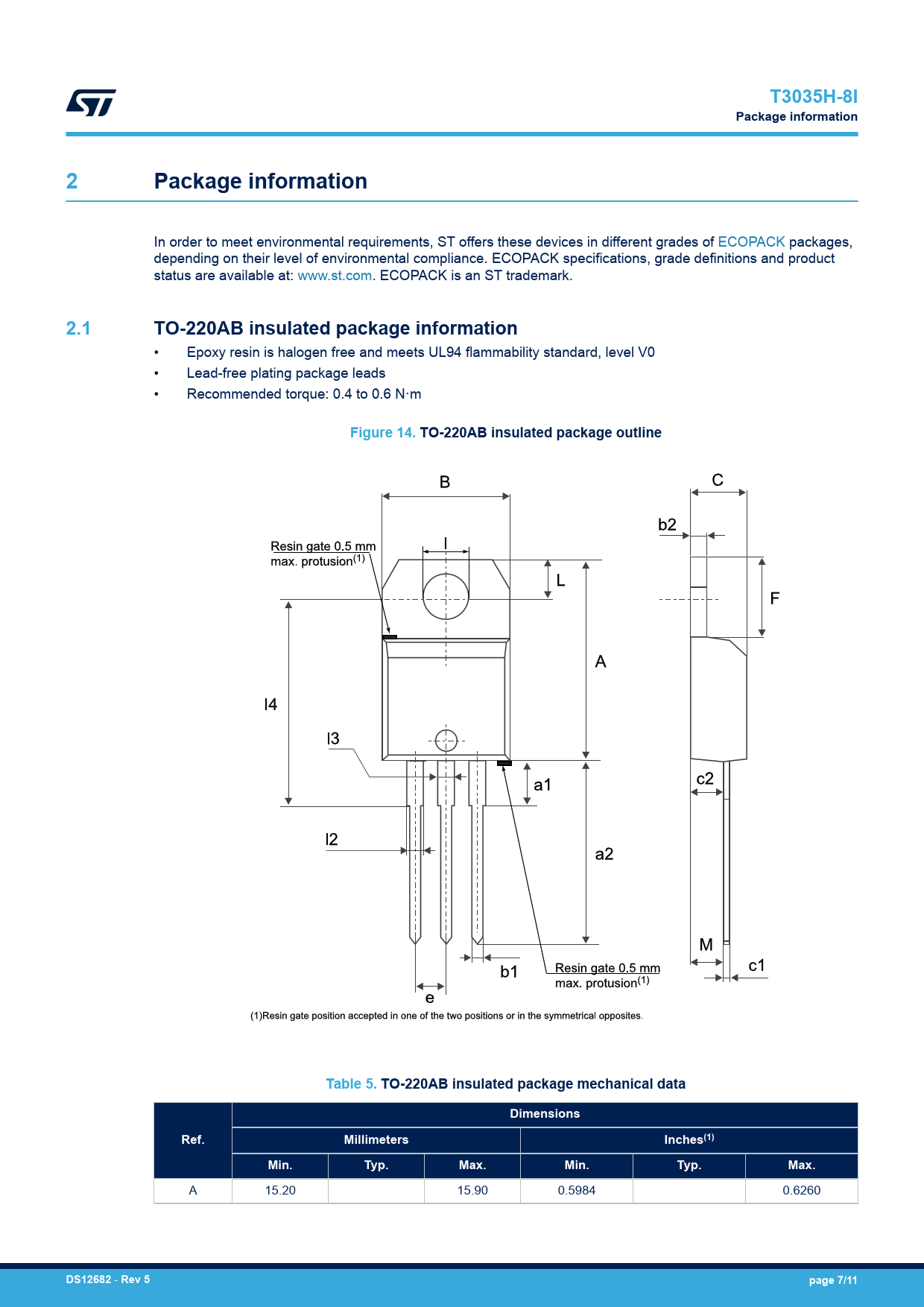

T3035H-8I. Package information. 2.1. TO-220AB insulated package information. Figure 14. TO-220AB insulated package outline
Model Line for this Datasheet
Text Version of Document
link to page 8
T3035H-8I Package information 2 Package information
In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK packages, depending on their level of environmental compliance. ECOPACK specifications, grade definitions and product status are available at: www.st.com. ECOPACK is an ST trademark.
2.1 TO-220AB insulated package information
• Epoxy resin is halogen free and meets UL94 flammability standard, level V0 • Lead-free plating package leads • Recommended torque: 0.4 to 0.6 N·m
Figure 14. TO-220AB insulated package outline Table 5. TO-220AB insulated package mechanical data Dimensions Ref. Millimeters Inches(1) Min. Typ. Max. Min. Typ. Max.
A 15.20 15.90 0.5984 0.6260
DS12682
-
Rev 5 page 7/11
Document Outline 1 Characteristics 1.1 Characteristics (curves) 2 Package information 2.1 TO-220AB insulated package information 3 Ordering information Revision history
