Datasheet T3035H-8T (STMicroelectronics) - 6
| Manufacturer | STMicroelectronics |
| Description | 30 A - 800 V - 150°C H-series Triac in TO-220AB |
| Pages / Page | 11 / 6 — T3035H-8T. Characteristics (curves) |
| File Format / Size | PDF / 266 Kb |
| Document Language | English |
T3035H-8T. Characteristics (curves)
Model Line for this Datasheet
Text Version of Document

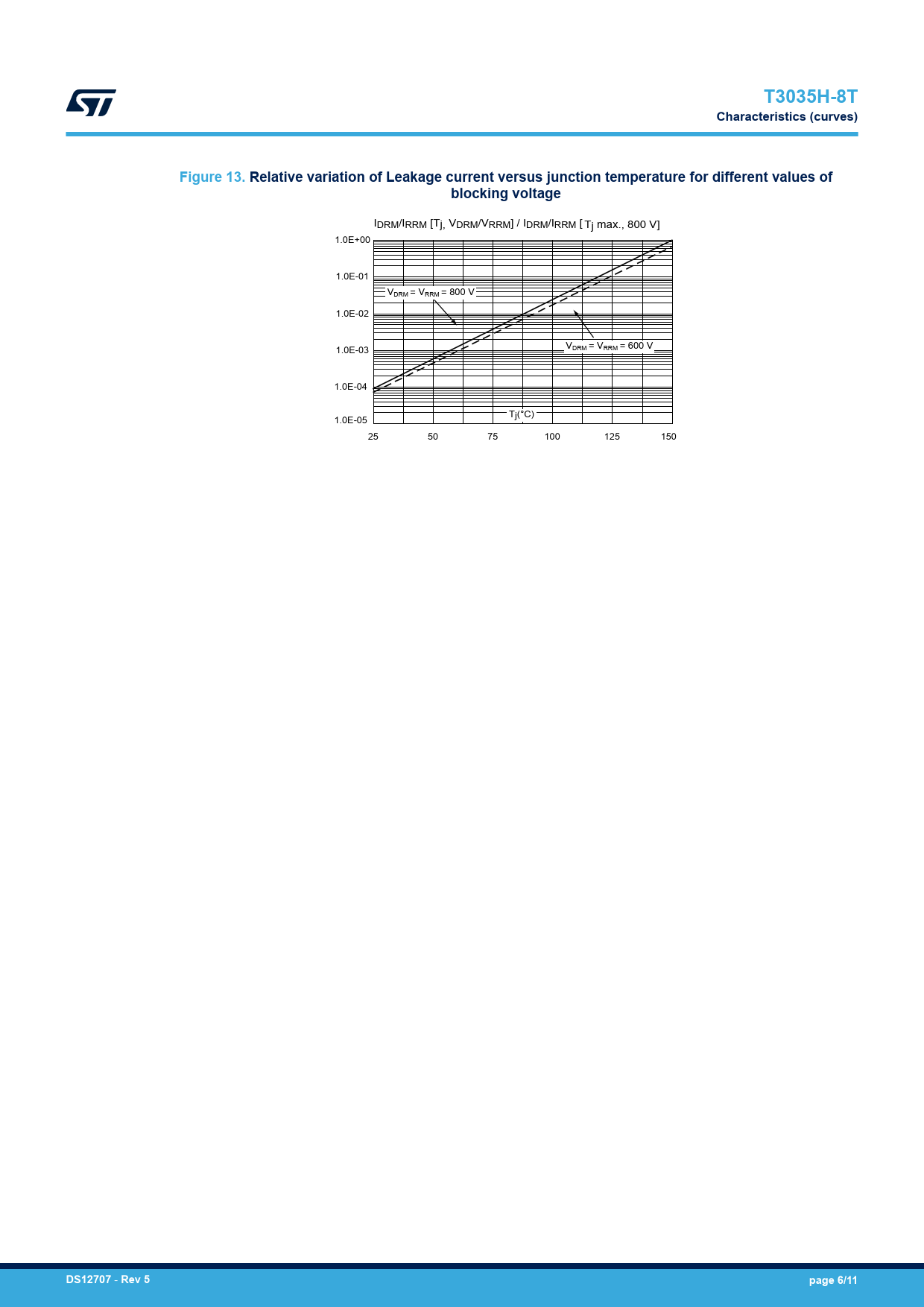

T3035H-8T Characteristics (curves) Figure 13. Relative variation of Leakage current versus junction temperature for different values of blocking voltage
IDRM/IRRM [Tj, VDRM/VRRM] / IDRM/IRRM [ Tj max., 800 V] 1.0E+00 1.0E-01 VDRM = VRRM = 800 V 1.0E-02 1.0E-03 VDRM = VRRM = 600 V 1.0E-04 T 1.0E-05 j(°C) 25 50 75 100 125 150
DS12707
-
Rev 5 page 6/11
Document Outline 1 Characteristics 1.1 Characteristics (curves) 2 Package information 2.1 TO-220AB package information 3 Ordering information Revision history
