2ED24427N01F. 10 A dual-channel low-side gate driver IC. Pin configuration, functionality and logic truth-table. 3.1
Model Line for this Datasheet
Text Version of Document

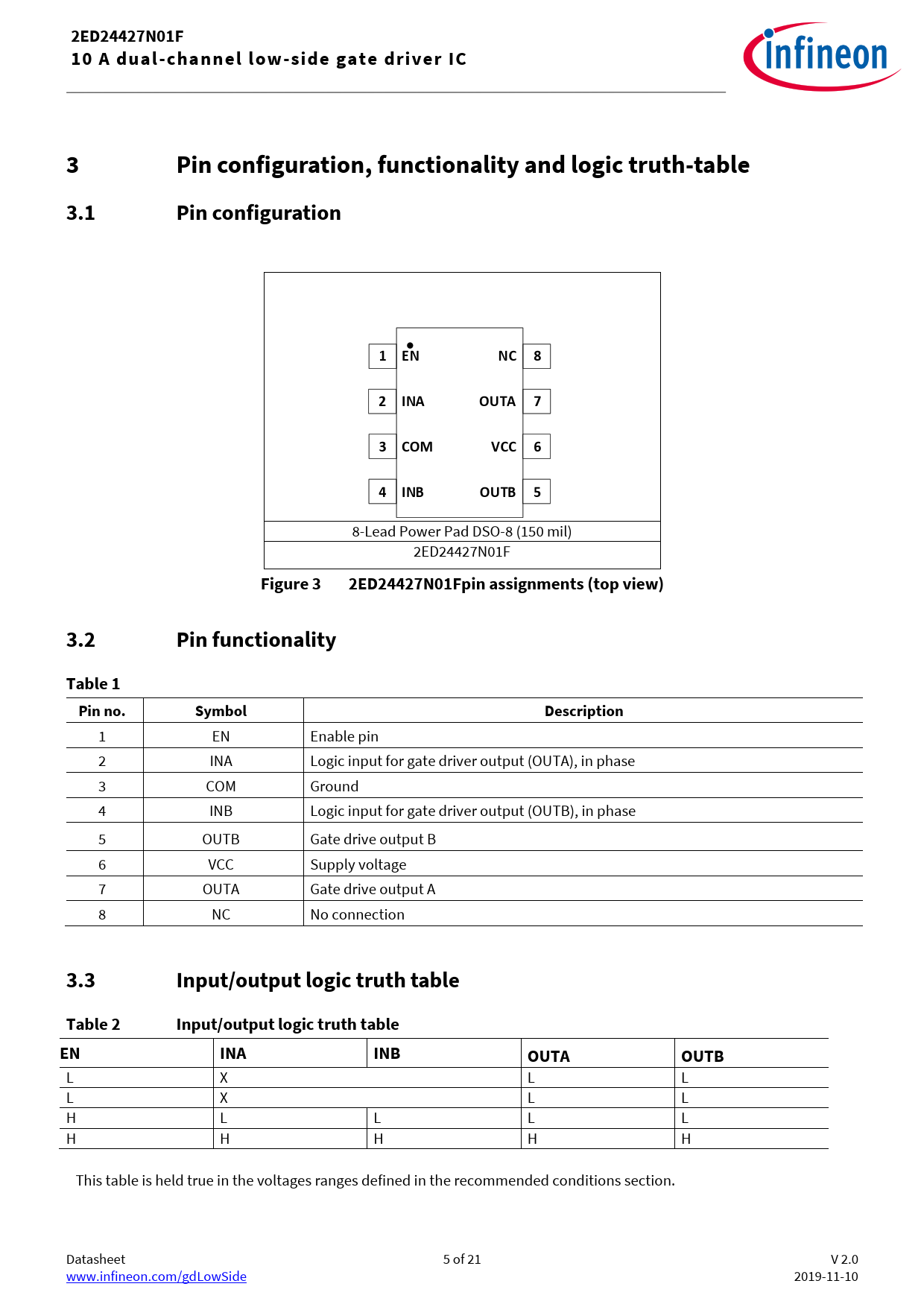

2ED24427N01F 10 A dual-channel low-side gate driver IC 3 Pin configuration, functionality and logic truth-table 3.1 Pin configuration 1 EN NC 8 2 INA OUTA 7 3 COM VCC 6 4 INB OUTB 5
8-Lead Power Pad DSO-8 (150 mil) 2ED24427N01F
Figure 3 2ED24427N01Fpin assignments (top view) 3.2 Pin functionality Table 1 Pin no. Symbol Description
1 EN Enable pin 2 INA Logic input for gate driver output (OUTA), in phase 3 COM Ground 4 INB Logic input for gate driver output (OUTB), in phase 5 OUTB Gate drive output B 6 VCC Supply voltage 7 OUTA Gate drive output A 8 NC No connection
3.3 Input/output logic truth table Table 2 Input/output logic truth table EN INA INB OUTA OUTB
L X L L L X L L H L L L L H H H H H This table is held true in the voltages ranges defined in the recommended conditions section. Datasheet 5 of 21 V 2.0 www.infineon.com/gdLowSide 2019-11-10
