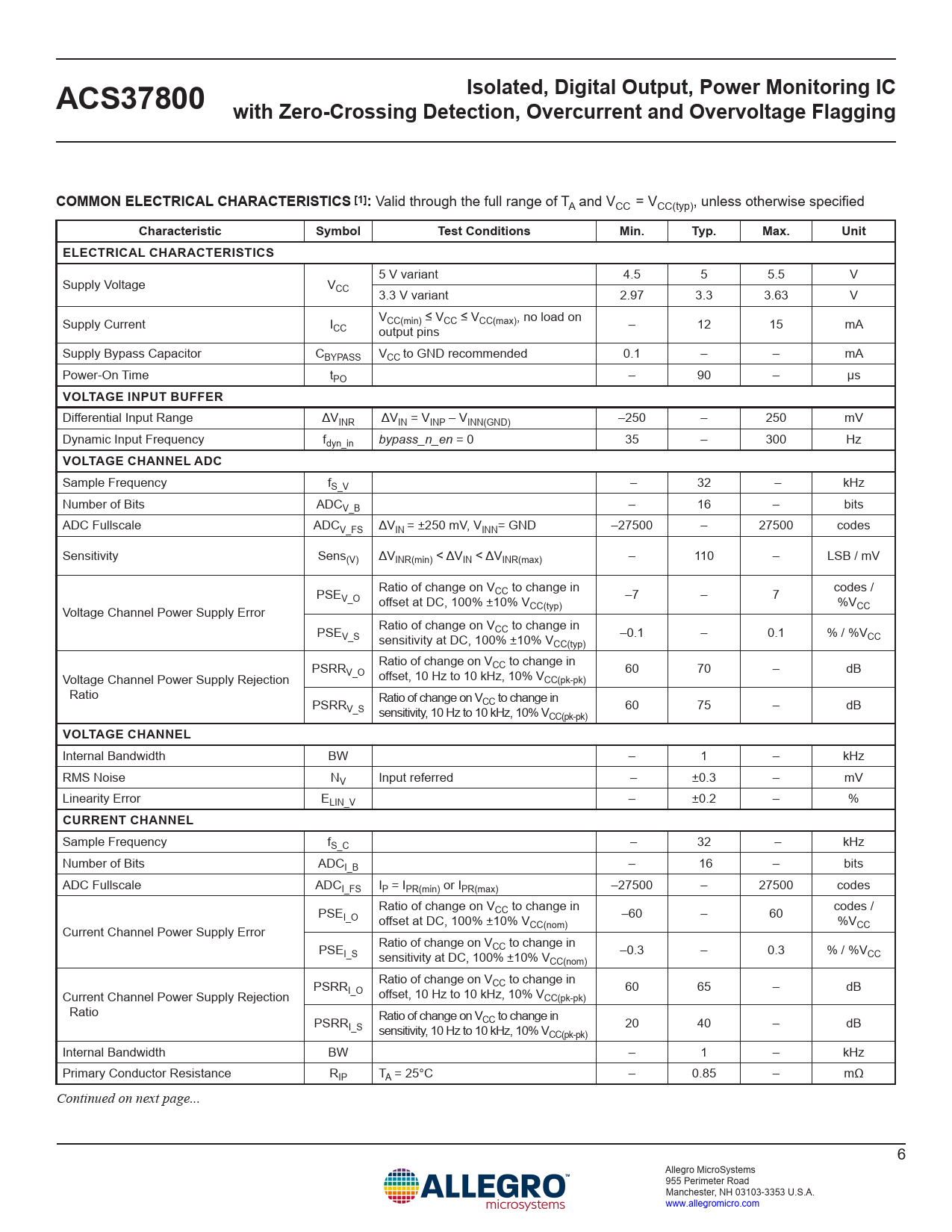

Isolated, Digital Output, Power Monitoring IC ACS37800 with Zero-Crossing Detection, Overcurrent and Overvoltage Flagging COMMON ELECTRICAL CHARACTERISTICS [1]:
Valid through the full range of TA and VCC = VCC(typ), unless otherwise specified
Characteristic Symbol Test Conditions Min. Typ. Max. Unit ELECTRICAL CHARACTERISTICS
5 V variant 4.5 5 5.5 V Supply Voltage VCC 3.3 V variant 2.97 3.3 3.63 V Supply Current I VCC(min) ≤ VCC ≤ VCC(max), no load on CC output pins – 12 15 mA Supply Bypass Capacitor CBYPASS VCC to GND recommended 0.1 – – mA Power-On Time tPO – 90 – µs
