Nexperia. PESD5V0C2BDF. Extremely low clamping low capacitance ESD protection. 8. Limiting values Table 5. Limiting values
Model Line for this Datasheet
Text Version of Document
link to page 3 link to page 3 link to page 3

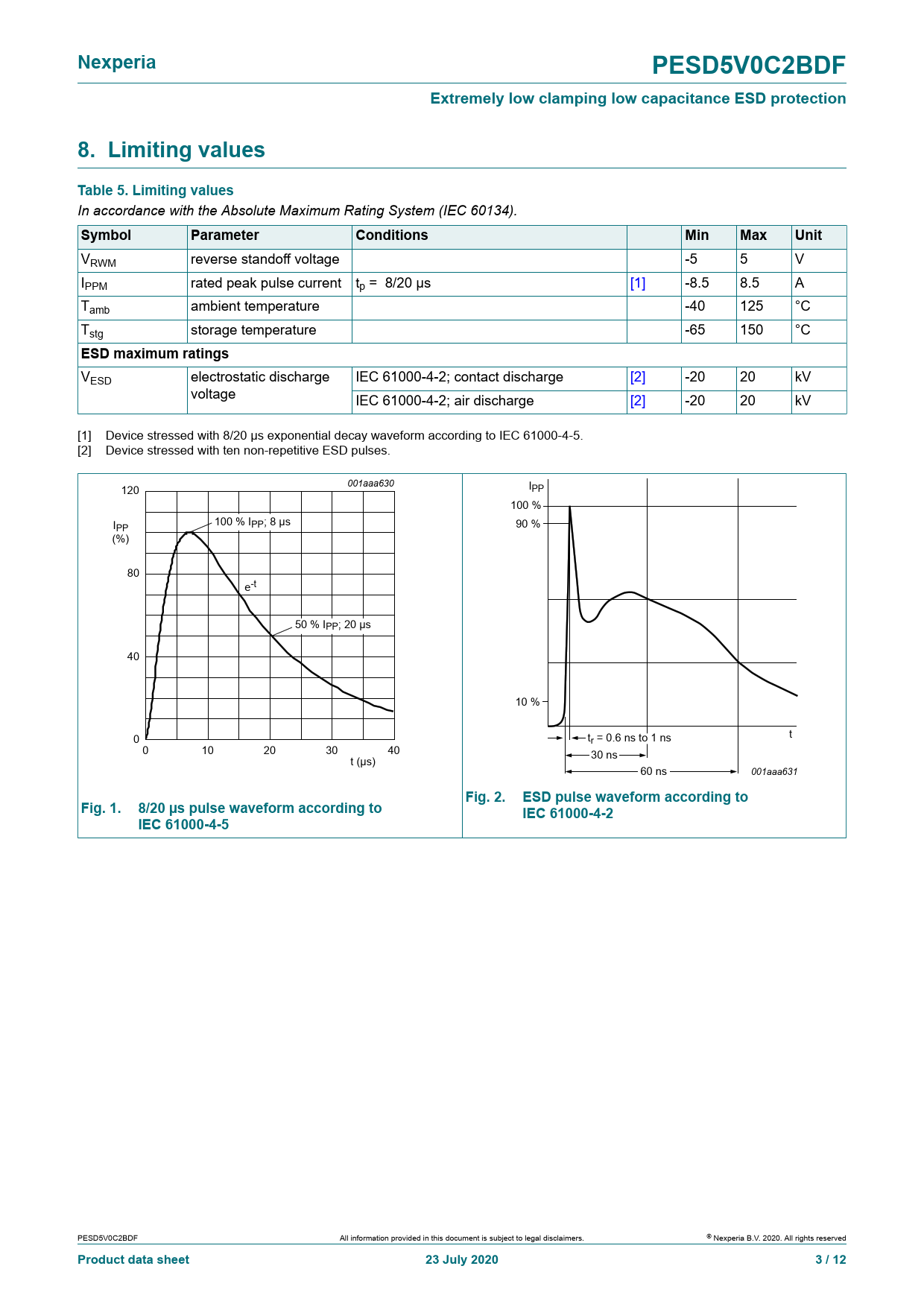

Nexperia PESD5V0C2BDF Extremely low clamping low capacitance ESD protection 8. Limiting values Table 5. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit
VRWM reverse standof voltage -5 5 V IPPM rated peak pulse current tp = 8/20 µs [1] -8.5 8.5 A Tamb ambient temperature -40 125 °C Tstg storage temperature -65 150 °C
ESD maximum ratings
VESD electrostatic discharge IEC 61000-4-2; contact discharge [2] -20 20 kV voltage IEC 61000-4-2; air discharge [2] -20 20 kV [1] Device stressed with 8/20 μs exponential decay waveform according to IEC 61000-4-5. [2] Device stressed with ten non-repetitive ESD pulses. 001aaa630 120 IPP 100 % I 100 % I PP PP; 8 µs 90 % (%) 80 e-t 50 % IPP; 20 µs 40 10 % 0 t tr = 0.6 ns to 1 ns 0 10 20 30 40 t (µs) 30 ns 60 ns 001aaa631
Fig. 2. ESD pulse waveform according to Fig. 1. 8/20 µs pulse waveform according to IEC 61000-4-2 IEC 61000-4-5
