Nexperia. PESD5V0C2BDF. Extremely low clamping low capacitance ESD protection. 9. Characteristics Table 6. Characteristics
Model Line for this Datasheet
Text Version of Document
link to page 4 link to page 4 link to page 4 link to page 4 link to page 4

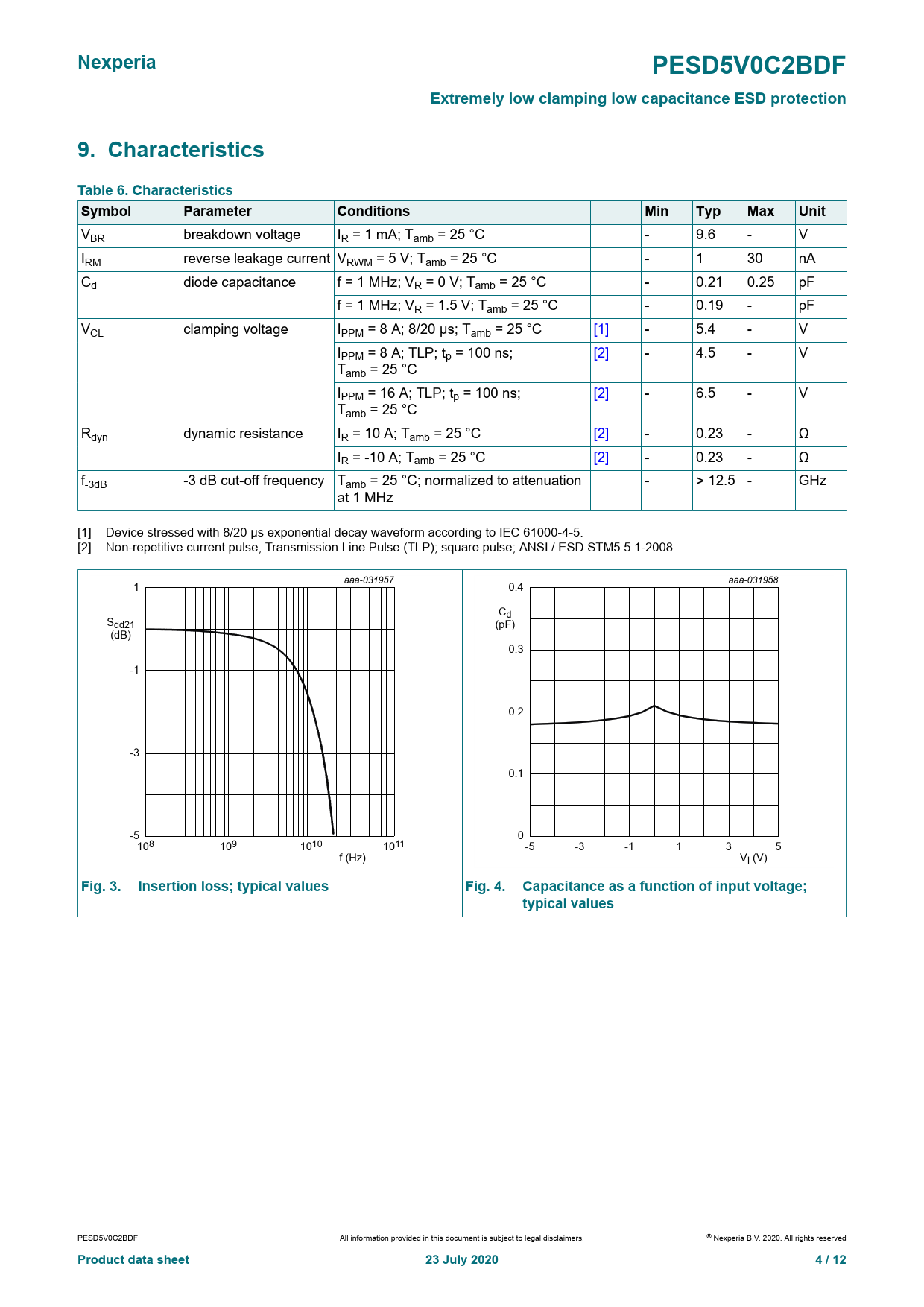

Nexperia PESD5V0C2BDF Extremely low clamping low capacitance ESD protection 9. Characteristics Table 6. Characteristics Symbol Parameter Conditions Min Typ Max Unit
VBR breakdown voltage IR = 1 mA; Tamb = 25 °C - 9.6 - V IRM reverse leakage current VRWM = 5 V; Tamb = 25 °C - 1 30 nA Cd diode capacitance f = 1 MHz; VR = 0 V; Tamb = 25 °C - 0.21 0.25 pF f = 1 MHz; VR = 1.5 V; Tamb = 25 °C - 0.19 - pF VCL clamping voltage IPPM = 8 A; 8/20 µs; Tamb = 25 °C [1] - 5.4 - V IPPM = 8 A; TLP; tp = 100 ns; [2] - 4.5 - V Tamb = 25 °C IPPM = 16 A; TLP; tp = 100 ns; [2] - 6.5 - V Tamb = 25 °C Rdyn dynamic resistance IR = 10 A; Tamb = 25 °C [2] - 0.23 - Ω IR = -10 A; Tamb = 25 °C [2] - 0.23 - Ω f-3dB -3 dB cut-off frequency Tamb = 25 °C; normalized to attenuation - > 12.5 - GHz at 1 MHz [1] Device stressed with 8/20 μs exponential decay waveform according to IEC 61000-4-5. [2] Non-repetitive current pulse, Transmission Line Pulse (TLP); square pulse; ANSI / ESD STM5.5.1-2008. aaa-031957 1 aaa-031958 0.4 Cd Sdd21 (pF) (dB) 0.3 -1 0.2 -3 0.1 -5 0 108 1011 1010 109 -5 -3 -1 1 3 5 f (Hz) VI (V)
Fig. 3. Insertion loss; typical values Fig. 4. Capacitance as a function of input voltage; typical values
PESD5V0C2BDF All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2020. All rights reserved
Product data sheet 23 July 2020 4 / 12
