Datasheet TDA7294 (STMicroelectronics)
| Manufacturer | STMicroelectronics |
| Description | 100 V, 100 W DMOS audio amplifier with mute/st-by |
| Pages / Page | 31 / 1 — TDA7294. Features. Description. Maturity status link. Order code. … |
| File Format / Size | PDF / 1.2 Mb |
| Document Language | English |

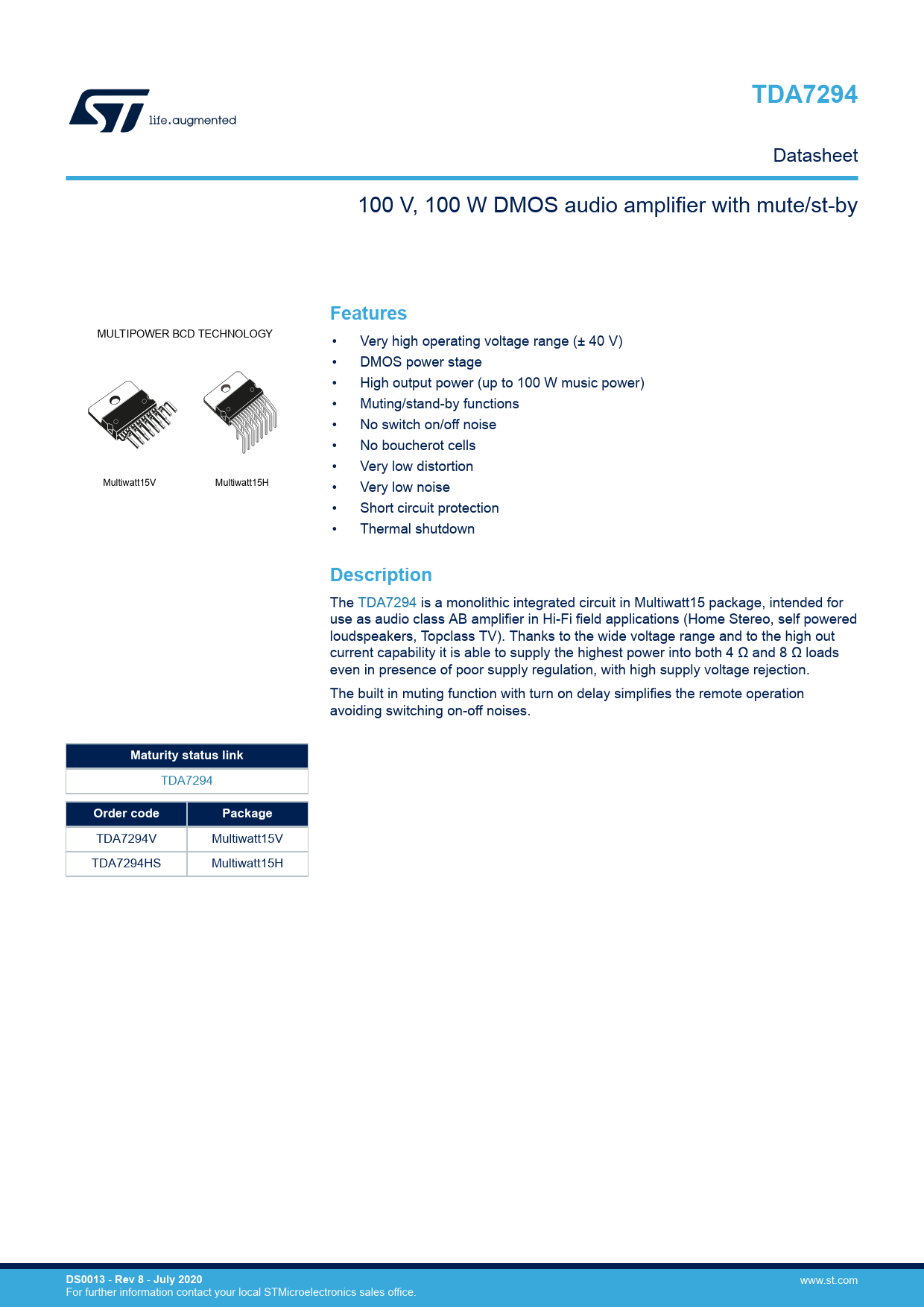

TDA7294. Features. Description. Maturity status link. Order code. Package. DS0013. Rev 8. July 2020
Model Line for this Datasheet
Text Version of Document
TDA7294
Datasheet 100 V, 100 W DMOS audio amplifier with mute/st-by
Features
MULTIPOWER BCD TECHNOLOGY • Very high operating voltage range (± 40 V) • DMOS power stage • High output power (up to 100 W music power) • Muting/stand-by functions • No switch on/off noise • No boucherot cells • Very low distortion Multiwatt15V Multiwatt15H • Very low noise • Short circuit protection • Thermal shutdown
Description
The TDA7294 is a monolithic integrated circuit in Multiwatt15 package, intended for use as audio class AB amplifier in Hi-Fi field applications (Home Stereo, self powered loudspeakers, Topclass TV). Thanks to the wide voltage range and to the high out current capability it is able to supply the highest power into both 4 Ω and 8 Ω loads even in presence of poor supply regulation, with high supply voltage rejection. The built in muting function with turn on delay simplifies the remote operation avoiding switching on-off noises.
Maturity status link
TDA7294
Order code Package
TDA7294V Multiwatt15V TDA7294HS Multiwatt15H
DS0013
-
Rev 8
-
July 2020
www.st.com For further information contact your local STMicroelectronics sales office. Document Outline Features Description 1 Typical application 2 Pin connection 3 Block diagram 4 Maximum ratings 5 Electrical characteristics 6 PCB and components 7 Application suggestion 8 Typical characteristics 9 Introduction 9.1 Output stage 9.2 Protections 9.3 Other features 10 Application information 11 Bridge application 12 Package information 12.1 Multiwatt15 V package information 12.2 Multiwatt15 H package information Revision history
