Datasheet LT8606, LT8606B (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | 42V, 350mA Synchronous Step-Down Regulator with 2.5µA Quiescent Current |
| Pages / Page | 24 / 3 — ELECTRICAL CHARACTERISTICS The. denotes the specifications which apply … |
| Revision | D |
| File Format / Size | PDF / 2.5 Mb |
| Document Language | English |
ELECTRICAL CHARACTERISTICS The. denotes the specifications which apply over the full operating
Model Line for this Datasheet
- LT8606BEDC#TRMPBF LT8606BEDC#TRPBF LT8606BHDC#TRMPBF LT8606BHDC#TRPBF LT8606BIDC#TRMPBF LT8606BIDC#TRPBF LT8606EDC#TRMPBF LT8606EDC#TRPBF LT8606EDC#WTRMPBF LT8606EMSE#PBF LT8606EMSE#TRPBF LT8606EMSE#WPBF LT8606EMSE#WTRPBF LT8606HDC#TRMPBF LT8606HDC#TRPBF LT8606HDC#WTRMPBF LT8606HDC#WTRPBF LT8606HMSE#PBF LT8606HMSE#TRPBF LT8606HMSE#WPBF LT8606HMSE#WTRPBF LT8606IDC#TRMPBF LT8606IDC#TRPBF LT8606IDC#WTRMPBF LT8606IDC#WTRPBF LT8606IMSE#PBF LT8606IMSE#TRPBF LT8606IMSE#WPBF LT8606IMSE#WTRPBF LT8606JDC#WTRMPBF LT8606JDC#WTRPBF LT8606JMSE#WPBF LT8606JMSE#WTRPBF
Text Version of Document
LT8606/LT8606B
ELECTRICAL CHARACTERISTICS The
l

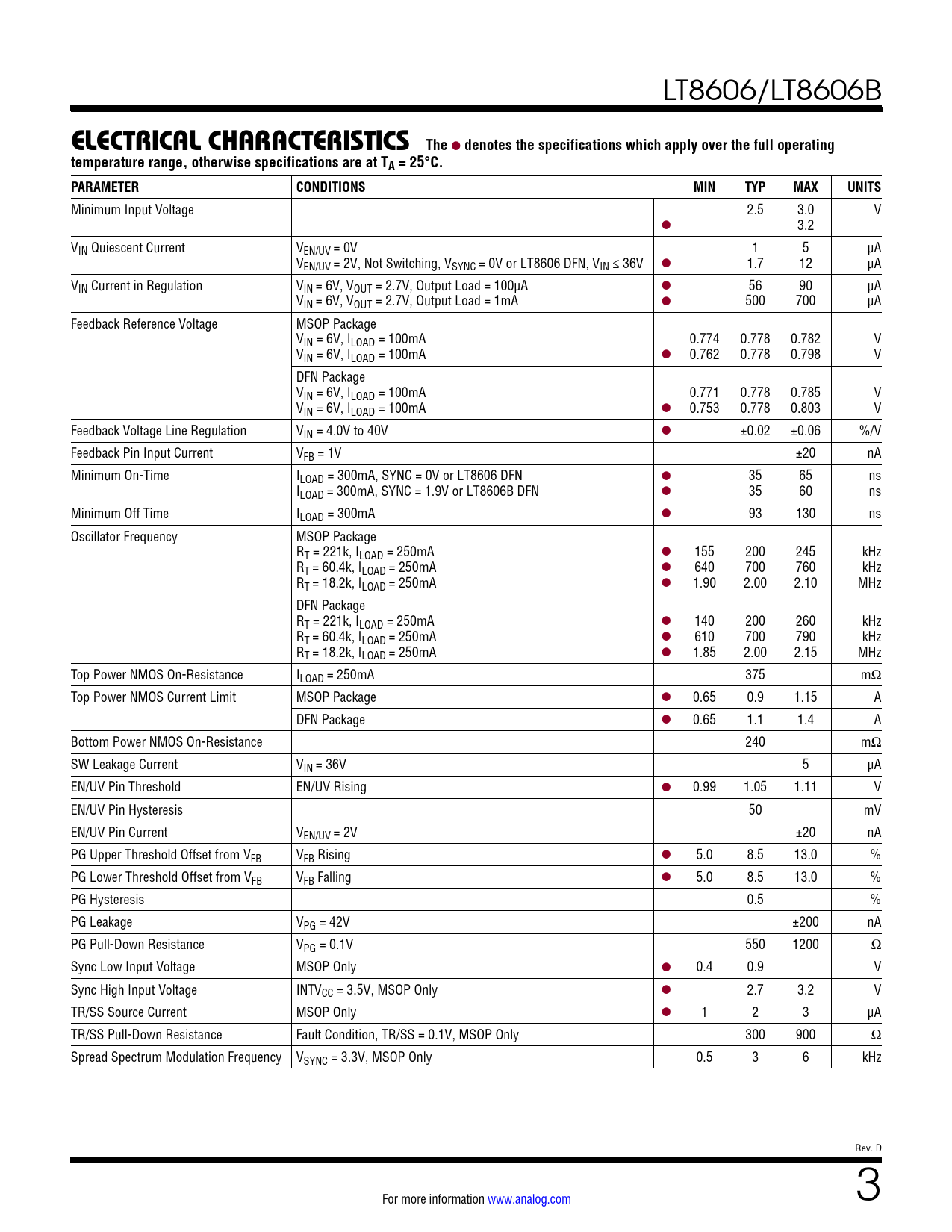

denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. PARAMETER CONDITIONS MIN TYP MAX UNITS
Minimum Input Voltage 2.5 3.0 V l 3.2 VIN Quiescent Current VEN/UV = 0V 1 5 µA VEN/UV = 2V, Not Switching, VSYNC = 0V or LT8606 DFN, VIN ≤ 36V l 1.7 12 µA VIN Current in Regulation VIN = 6V, VOUT = 2.7V, Output Load = 100µA l 56 90 µA VIN = 6V, VOUT = 2.7V, Output Load = 1mA l 500 700 µA Feedback Reference Voltage MSOP Package VIN = 6V, ILOAD = 100mA 0.774 0.778 0.782 V VIN = 6V, ILOAD = 100mA l 0.762 0.778 0.798 V DFN Package VIN = 6V, ILOAD = 100mA 0.771 0.778 0.785 V VIN = 6V, ILOAD = 100mA l 0.753 0.778 0.803 V Feedback Voltage Line Regulation VIN = 4.0V to 40V l ±0.02 ±0.06 %/V Feedback Pin Input Current VFB = 1V ±20 nA Minimum On-Time ILOAD = 300mA, SYNC = 0V or LT8606 DFN l 35 65 ns ILOAD = 300mA, SYNC = 1.9V or LT8606B DFN l 35 60 ns Minimum Off Time ILOAD = 300mA l 93 130 ns Oscillator Frequency MSOP Package RT = 221k, ILOAD = 250mA l 155 200 245 kHz RT = 60.4k, ILOAD = 250mA l 640 700 760 kHz RT = 18.2k, ILOAD = 250mA l 1.90 2.00 2.10 MHz DFN Package RT = 221k, ILOAD = 250mA l 140 200 260 kHz RT = 60.4k, ILOAD = 250mA l 610 700 790 kHz RT = 18.2k, ILOAD = 250mA l 1.85 2.00 2.15 MHz Top Power NMOS On-Resistance ILOAD = 250mA 375 mΩ Top Power NMOS Current Limit MSOP Package l 0.65 0.9 1.15 A DFN Package l 0.65 1.1 1.4 A Bottom Power NMOS On-Resistance 240 mΩ SW Leakage Current VIN = 36V 5 µA EN/UV Pin Threshold EN/UV Rising l 0.99 1.05 1.11 V EN/UV Pin Hysteresis 50 mV EN/UV Pin Current VEN/UV = 2V ±20 nA PG Upper Threshold Offset from VFB VFB Rising l 5.0 8.5 13.0 % PG Lower Threshold Offset from VFB VFB Falling l 5.0 8.5 13.0 % PG Hysteresis 0.5 % PG Leakage VPG = 42V ±200 nA PG Pull-Down Resistance VPG = 0.1V 550 1200 Ω Sync Low Input Voltage MSOP Only l 0.4 0.9 V Sync High Input Voltage INTVCC = 3.5V, MSOP Only l 2.7 3.2 V TR/SS Source Current MSOP Only l 1 2 3 µA TR/SS Pull-Down Resistance Fault Condition, TR/SS = 0.1V, MSOP Only 300 900 Ω Spread Spectrum Modulation Frequency VSYNC = 3.3V, MSOP Only 0.5 3 6 kHz Rev. D For more information www.analog.com 3 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
