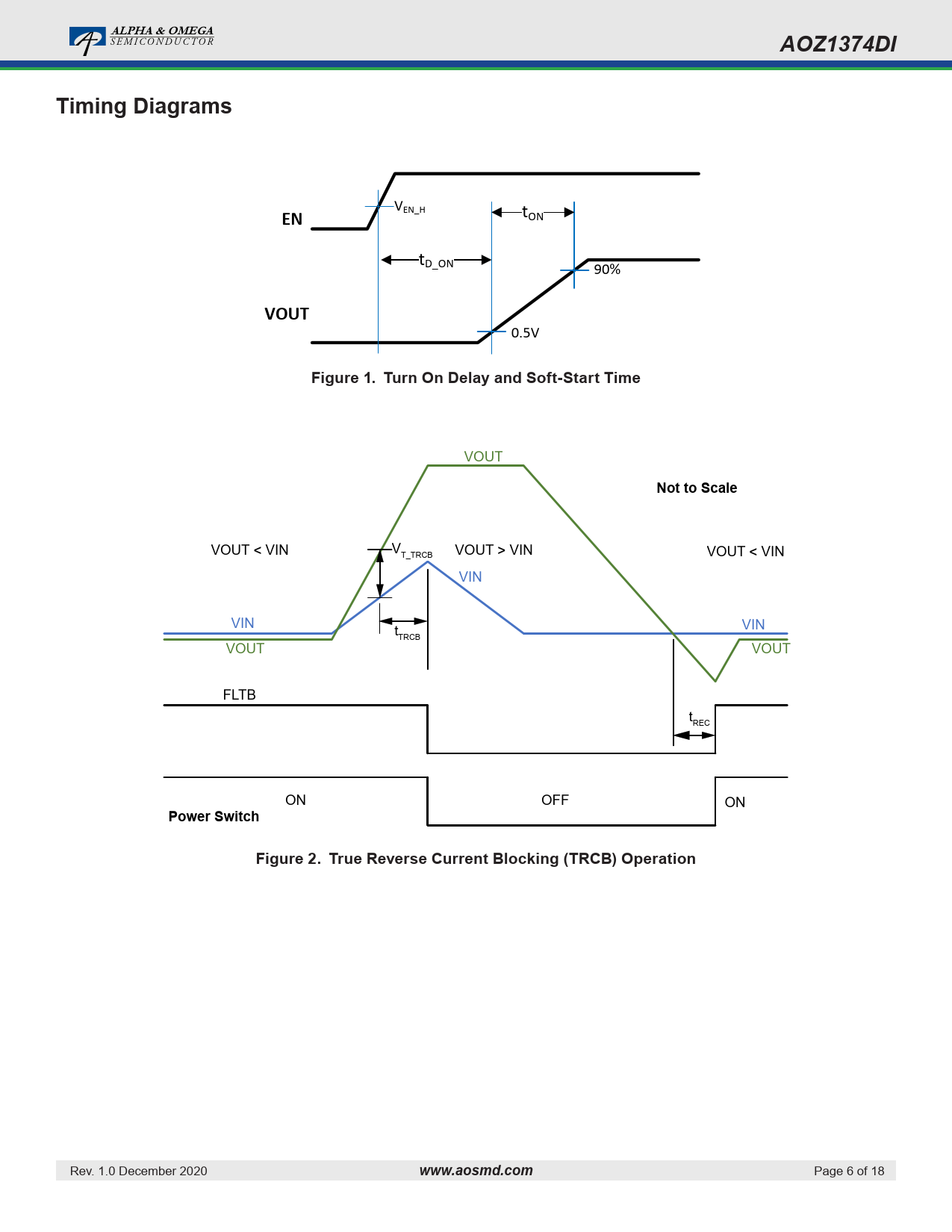

ALPHA & OMEGA. AOZ1374DI. Timing Diagrams. VOUT. Figure 1. Turn On Delay and Soft-Start Time. Not to Scale. Power Switch
Model Line for this Datasheet
Text Version of Document
ALPHA & OMEGA
S E M I C O N D U C T O R
AOZ1374DI Timing Diagrams
V
EN
EN_H tON tD_ON 90%
VOUT
0.5V
Figure 1. Turn On Delay and Soft-Start Time
VOUT
Not to Scale
VOUT < VIN VT_TRCB VOUT > VIN VOUT < VIN VIN VIN t VIN TRCB VOUT VOUT FLTB tREC ON OFF ON
Power Switch Figure 2. True Reverse Current Blocking (TRCB) Operation
