Datasheet AOZ1374DI (Alpha & Omega) - 7
| Manufacturer | Alpha & Omega |
| Description | ECPower 23 V 36 mΩ Protection Switch Programmable Current Limit and True Reverse Current Blocking |
| Pages / Page | 18 / 7 — ALPHA & OMEGA. AOZ1374DI. Timing Diagrams |
| File Format / Size | PDF / 1.7 Mb |
| Document Language | English |
ALPHA & OMEGA. AOZ1374DI. Timing Diagrams
Model Line for this Datasheet
Text Version of Document
ALPHA & OMEGA
S E M I C O N D U C T O R
AOZ1374DI Timing Diagrams
(Continued) 12 V 12 V VOUT 0 V I ILIM OUT tOCP 0 A FLTB tOCP_FTLB EN Enable Reset

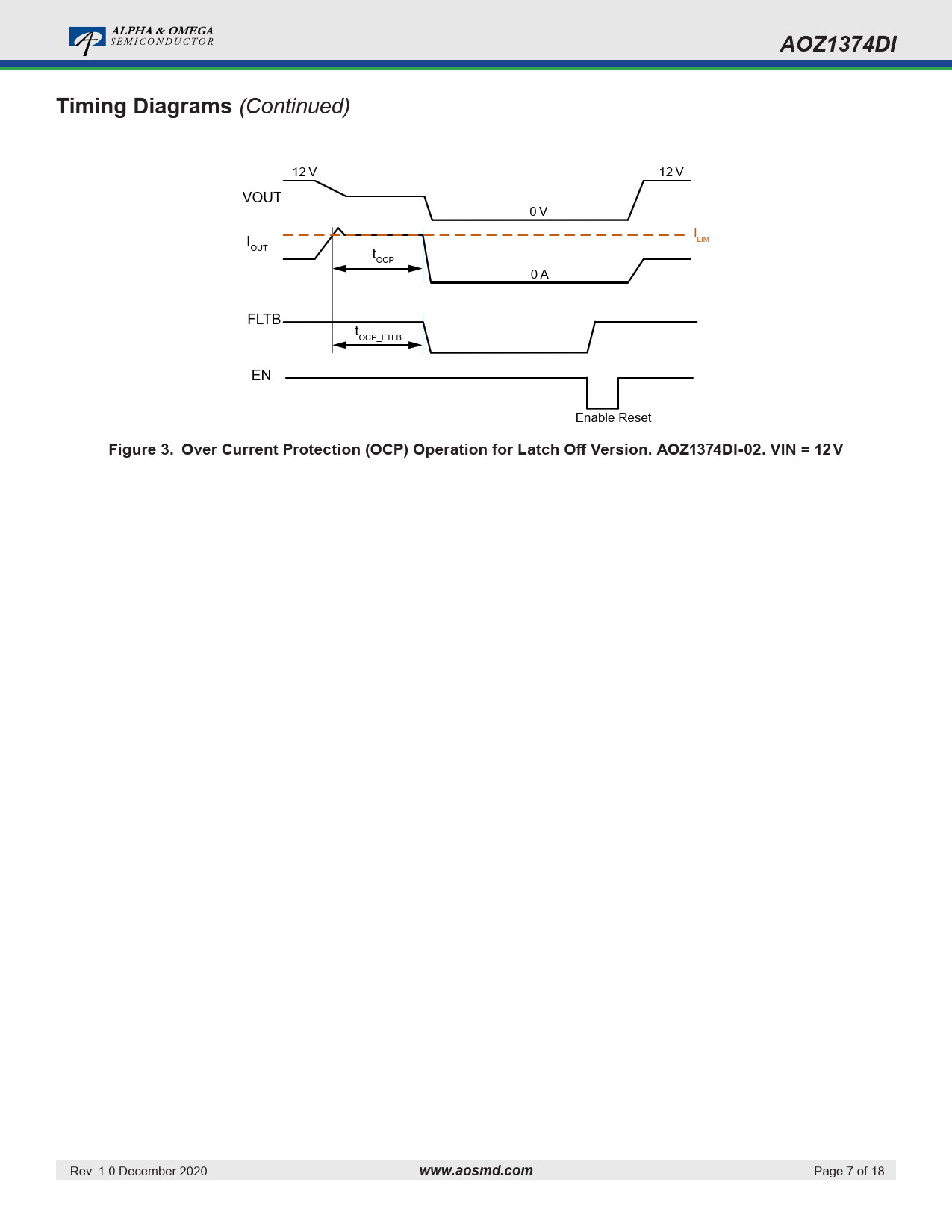

Figure 3. Over Current Protection (OCP) Operation for Latch Off Version. AOZ1374DI-02. VIN = 12 V
Rev. 1.0 December 2020
www.aosmd.com
Page 7 of 18
