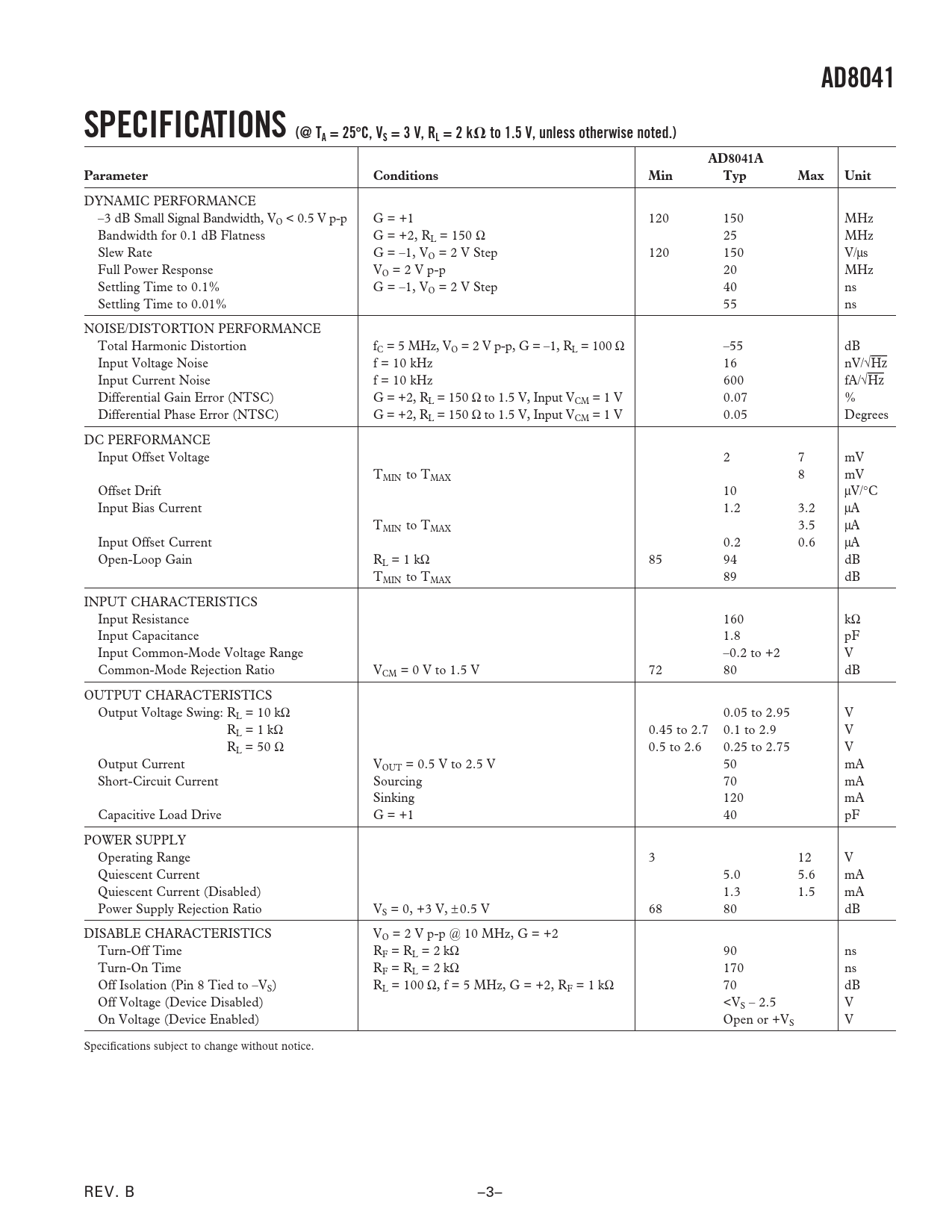

AD8041. SPECIFICATIONS (@ TA = 25. C, VS = 3 V, RL = 2 k. to 1.5 V, unless otherwise noted.). AD8041A. Parameter. Conditions. Min. Typ
Model Line for this Datasheet
Text Version of Document
AD8041 SPECIFICATIONS (@ TA = 25
ⴗ
C, VS = 3 V, RL = 2 k
⍀
to 1.5 V, unless otherwise noted.) AD8041A Parameter Conditions Min Typ Max Unit
DYNAMIC PERFORMANCE –3 dB Small Signal Bandwidth, VO < 0.5 V p-p G = +1 120 150 MHz Bandwidth for 0.1 dB Flatness G = +2, RL = 150 Ω 25 MHz Slew Rate G = –1, VO = 2 V Step 120 150 V/µs Full Power Response VO = 2 V p-p 20 MHz Settling Time to 0.1% G = –1, VO = 2 V Step 40 ns Settling Time to 0.01% 55 ns NOISE/DISTORTION PERFORMANCE Total Harmonic Distortion fC = 5 MHz, VO = 2 V p-p, G = –1, RL = 100 Ω –55 dB Input Voltage Noise f = 10 kHz 16 nV/√Hz Input Current Noise f = 10 kHz 600 fA/√Hz Differential Gain Error (NTSC) G = +2, RL = 150 Ω to 1.5 V, Input VCM = 1 V 0.07 % Differential Phase Error (NTSC) G = +2, RL = 150 Ω to 1.5 V, Input VCM = 1 V 0.05 Degrees DC PERFORMANCE Input Offset Voltage 2 7 mV TMIN to TMAX 8 mV Offset Drift 10 µV/°C Input Bias Current 1.2 3.2 µA TMIN to TMAX 3.5 µA Input Offset Current 0.2 0.6 µA Open-Loop Gain RL = 1 kΩ 85 94 dB TMIN to TMAX 89 dB INPUT CHARACTERISTICS Input Resistance 160 kΩ Input Capacitance 1.8 pF Input Common-Mode Voltage Range –0.2 to +2 V Common-Mode Rejection Ratio VCM = 0 V to 1.5 V 72 80 dB OUTPUT CHARACTERISTICS Output Voltage Swing: RL = 10 kΩ 0.05 to 2.95 V Output Voltage Swing: RL = 1 kΩ 0.45 to 2.7 0.1 to 2.9 V Output Voltage Swing: RL = 50 Ω 0.5 to 2.6 0.25 to 2.75 V Output Current VOUT = 0.5 V to 2.5 V 50 mA Short-Circuit Current Sourcing 70 mA Sinking 120 mA Capacitive Load Drive G = +1 40 pF POWER SUPPLY Operating Range 3 12 V Quiescent Current 5.0 5.6 mA Quiescent Current (Disabled) 1.3 1.5 mA Power Supply Rejection Ratio VS = 0, +3 V, ± 0.5 V 68 80 dB DISABLE CHARACTERISTICS VO = 2 V p-p @ 10 MHz, G = +2 Turn-Off Time RF = RL = 2 kΩ 90 ns Turn-On Time RF = RL = 2 kΩ 170 ns Off Isolation (Pin 8 Tied to –VS) RL = 100 Ω, f = 5 MHz, G = +2, RF = 1 kΩ 70 dB Off Voltage (Device Disabled) <VS – 2.5 V On Voltage (Device Enabled) Open or +VS V Specifications subject to change without notice. REV. B –3– Document Outline FEATURES APPLICATIONS PRODUCT DESCRIPTION CONNECTION DIAGRAM SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS MAXIMUM POWER DISSIPATION ORDERING GUIDE Typical Performance Characteristics Overdrive Recovery Circuit Description Output Impedance Disable Operation Single-Supply A/D Conversion APPLICATIONS RGB Buffer Single-Supply Composite Video Line Driver Sync Stripper Layout Considerations OUTLINE DIMENSIONS Revision History
