Datasheet HMC7543 (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | 71 GHz to 76 GHz, E-Band Power Amplifier With Power Detector |
| Pages / Page | 16 / 3 — Data Sheet. HMC7543. SPECIFICATIONS. Table 1. Parameter. Min. Typ. Max. … |
| Revision | A |
| File Format / Size | PDF / 247 Kb |
| Document Language | English |

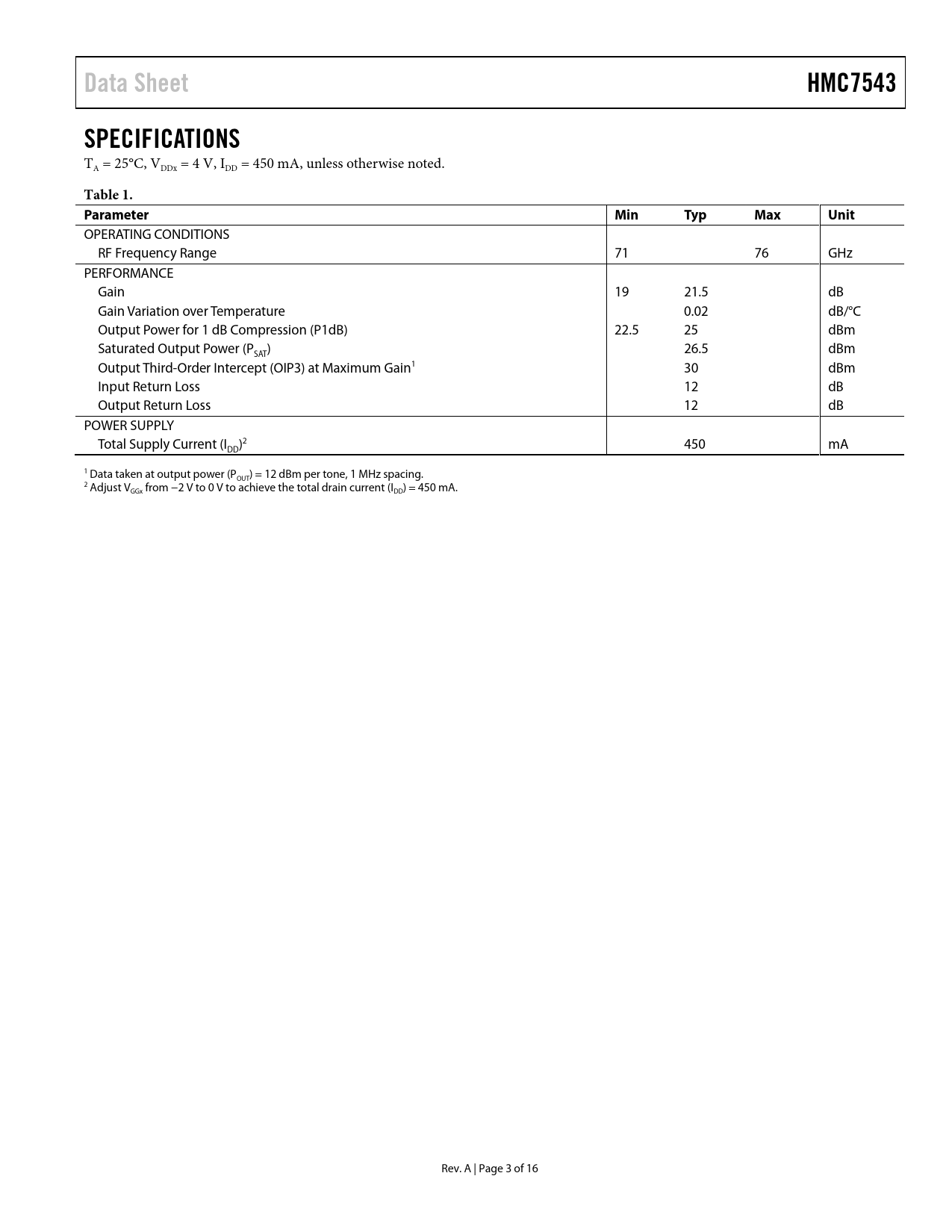

Data Sheet. HMC7543. SPECIFICATIONS. Table 1. Parameter. Min. Typ. Max. Unit
Model Line for this Datasheet
Text Version of Document
Data Sheet HMC7543 SPECIFICATIONS
TA = 25°C, VDDx = 4 V, IDD = 450 mA, unless otherwise noted.
Table 1. Parameter Min Typ Max Unit
