Datasheet HMC7543 (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | 71 GHz to 76 GHz, E-Band Power Amplifier With Power Detector |
| Pages / Page | 16 / 6 — HMC7543. Data Sheet. INTERFACE SCHEMATICS. GND. RFOUT. RFIN. VREF,VDET. … |
| Revision | A |
| File Format / Size | PDF / 247 Kb |
| Document Language | English |

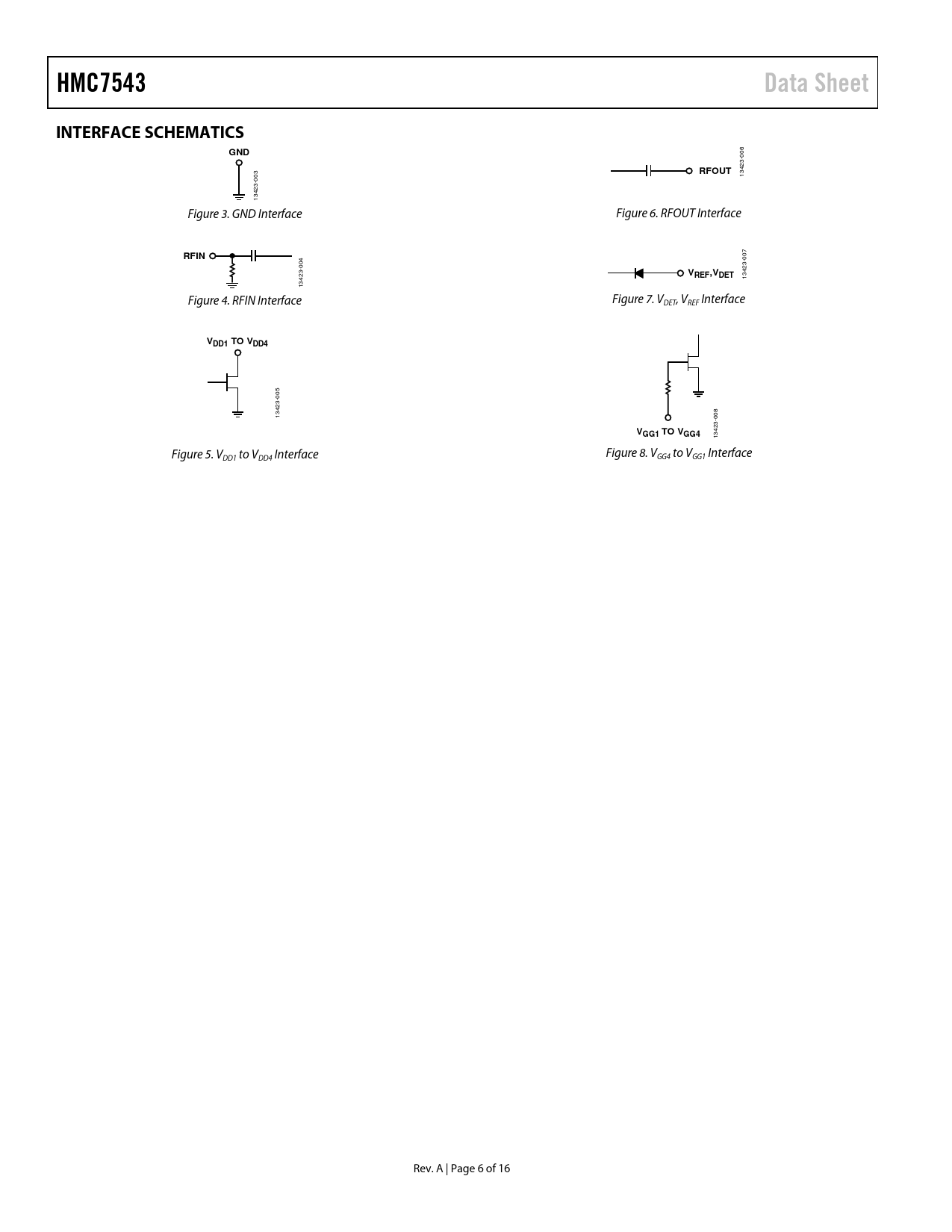

HMC7543. Data Sheet. INTERFACE SCHEMATICS. GND. RFOUT. RFIN. VREF,VDET. VDD1 TO VDD4. VGG1 TO VGG4
Model Line for this Datasheet
Text Version of Document
HMC7543 Data Sheet INTERFACE SCHEMATICS GND
006
RFOUT
13423- 003 13423- Figure 3. GND Interface Figure 6. RFOUT Interface
RFIN
007 004
VREF,VDET
13423- 13423- Figure 4. RFIN Interface Figure 7. VDET, VREF Interface
VDD1 TO VDD4
005 13423- 008
VGG1 TO VGG4
13423- Figure 5. V Figure 8. V DD1 to VDD4 Interface GG4 to VGG1 Interface Rev. A | Page 6 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS INTERFACE SCHEMATICS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION TYPICAL APPLICATION CIRCUIT ASSEMBLY DIAGRAM MOUNTING AND BONDING TECHNIQUES FOR MILLIMETERWAVE GaAs MMICS HANDLING PRECAUTIONS Storage Cleanliness Static Sensitivity Transients General Handling MOUNTING Eutectic Die Attach Epoxy Die Attach WIRE BONDING OUTLINE DIMENSIONS ORDERING GUIDE
