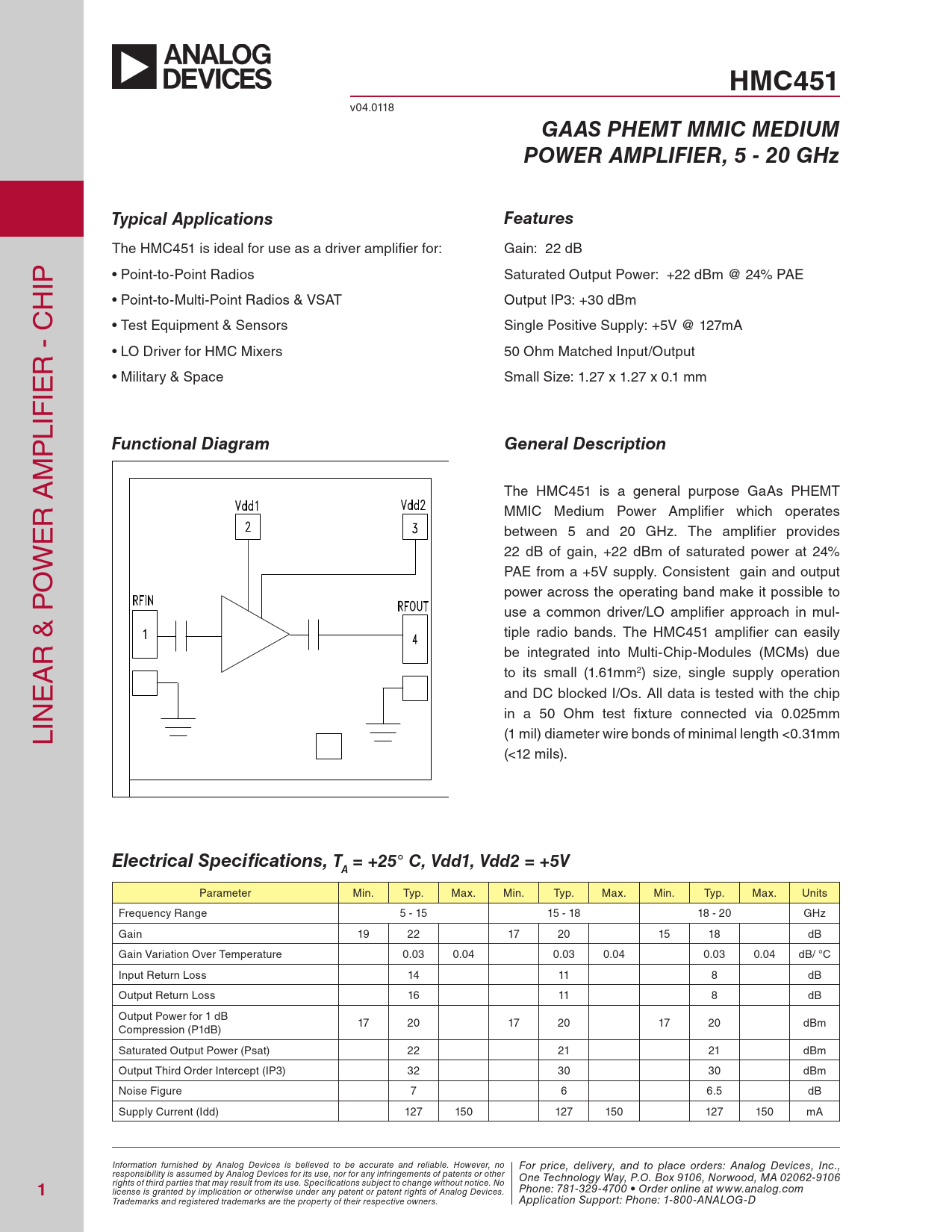

HMC451. GAAS PHEMT MMIC MEDIUM. POWER AMPLIFIER, 5 - 20 GHz. Typical Applications. Features. Functional Diagram
Model Line for this Datasheet
Text Version of Document
HMC451
v04.0118
GAAS PHEMT MMIC MEDIUM POWER AMPLIFIER, 5 - 20 GHz Typical Applications Features
The HMC451 is ideal for use as a driver amplifier for: Gain: 22 dB IP • Point-to-Point Radios Saturated Output Power: +22 dBm @ 24% PAE H • Point-to-Multi-Point Radios & VSAT Output IP3: +30 dBm • Test Equipment & Sensors Single Positive Supply: +5V @ 127mA R - C • LO Driver for HMC Mixers 50 Ohm Matched Input/Output IE • Military & Space Small Size: 1.27 x 1.27 x 0.1 mm LIF P
Functional Diagram General Description
M The HMC451 is a general purpose GaAs PHEMT R A MMIC Medium Power Amplifier which operates E between 5 and 20 GHz. The amplifier provides W 22 dB of gain, +22 dBm of saturated power at 24% O PAE from a +5V supply. Consistent gain and output power across the operating band make it possible to use a common driver/LO amplifier approach in mul- tiple radio bands. The HMC451 amplifier can easily R & P be integrated into Multi-Chip-Modules (MCMs) due A to its small (1.61mm2) size, single supply operation E and DC blocked I/Os. All data is tested with the chip in a 50 Ohm test fixture connected via 0.025mm LIN (1 mil) diameter wire bonds of minimal length <0.31mm (<12 mils).
Electrical Specifications, T = +25° C, Vdd1, Vdd2 = +5V A
Parameter Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Units Frequency Range 5 - 15 15 - 18 18 - 20 GHz Gain 19 22 17 20 15 18 dB Gain Variation Over Temperature 0.03 0.04 0.03 0.04 0.03 0.04 dB/ °C Input Return Loss 14 11 8 dB Output Return Loss 16 11 8 dB Output Power for 1 dB 17 20 17 20 17 20 dBm Compression (P1dB) Saturated Output Power (Psat) 22 21 21 dBm Output Third Order Intercept (IP3) 32 30 30 dBm Noise Figure 7 6 6.5 dB Supply Current (Idd) 127 150 127 150 127 150 mA Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
