HMC498
v03.0713

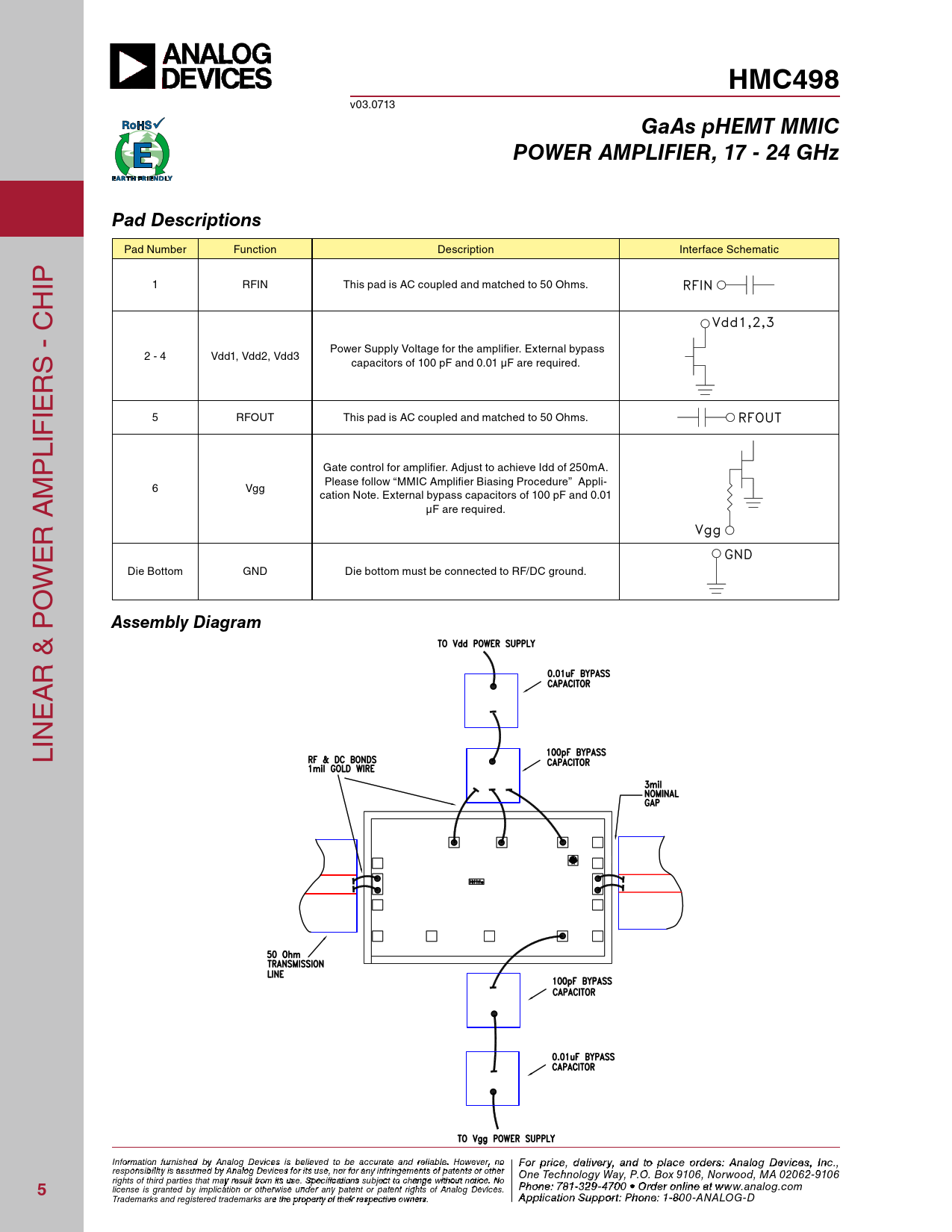

GaAs pHEMT MMIC POWER AMPLIFIER, 17 - 24 GHz Pad Descriptions
Pad Number Function Description Interface Schematic IP H 1 RFIN This pad is AC coupled and matched to 50 Ohms. S - C Power Supply Voltage for the amplifier. External bypass 2 - 4 Vdd1, Vdd2, Vdd3 capacitors of 100 pF and 0.01 µF are required. R IE 5 RFOUT This pad is AC coupled and matched to 50 Ohms. LIF P Gate control for amplifier. Adjust to achieve Idd of 250mA. M Please follow “MMIC Amplifier Biasing Procedure” Appli- 6 Vgg cation Note. External bypass capacitors of 100 pF and 0.01 µF are required. R A E W Die Bottom GND Die bottom must be connected to RF/DC ground. O
Assembly Diagram
