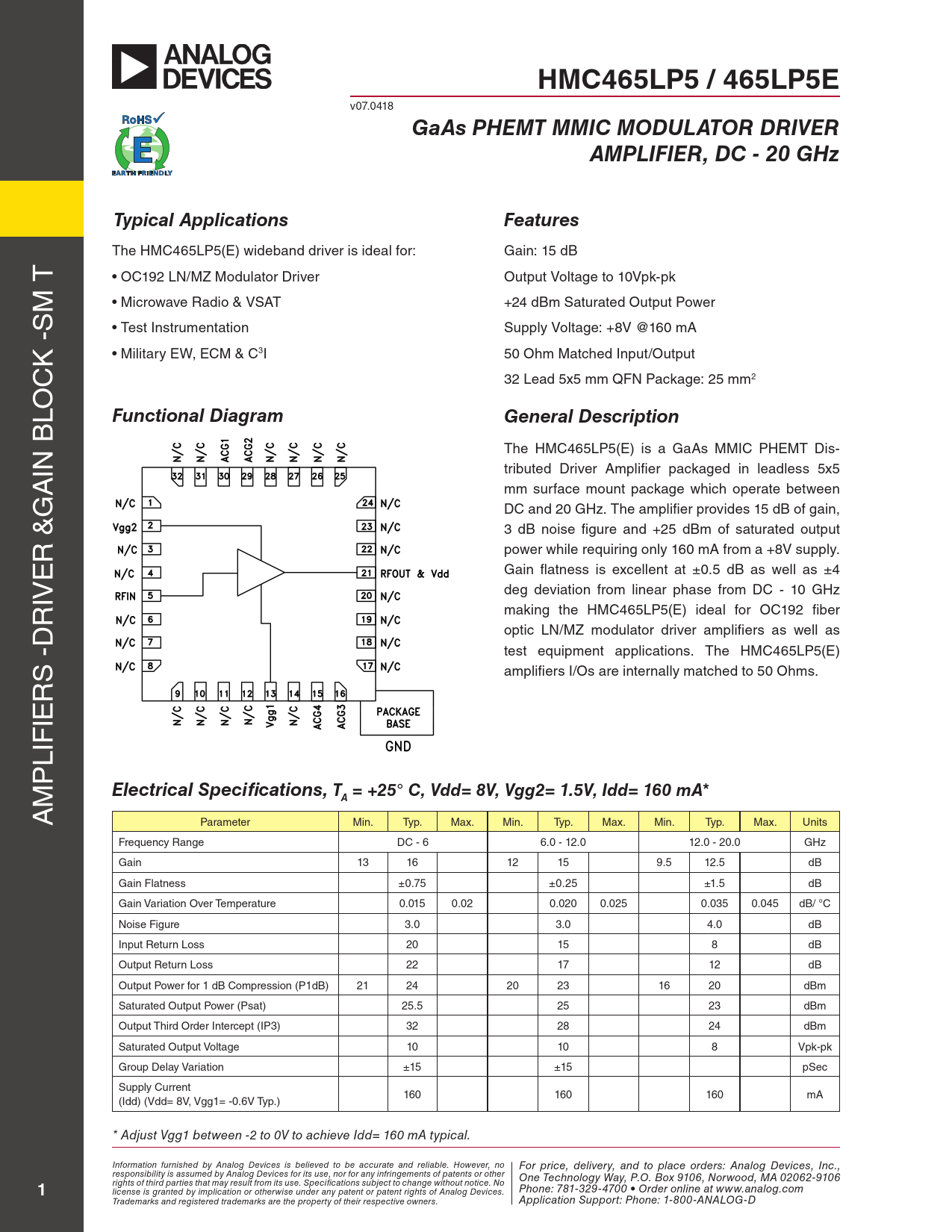

HMC465LP5 / 465LP5E. GaAs PHEMT MMIC MODULATOR DRIVER. AMPLIFIER, DC - 20 GHz. Typical Applications. Features. Functional Diagram
Model Line for this Datasheet
Text Version of Document
HMC465LP5 / 465LP5E
v07.0418
GaAs PHEMT MMIC MODULATOR DRIVER AMPLIFIER, DC - 20 GHz Typical Applications Features
The Hmc465lp5(e) wideband driver is ideal for: Gain: 15 dB T • oc192 ln/mZ modulator Driver output voltage to 10vpk-pk m • microwave radio & vsAT +24 dBm saturated output power s • Test instrumentation supply voltage: +8v @160 mA k - • military eW, ecm & c3i 50 ohm matched input/output c 32 lead 5x5 mm Qfn package: 25 mm2 lo
Functional Diagram General Description
The Hmc465lp5(e) is a GaAs mmic pHemT Dis- in B tributed Driver Amplifier packaged in leadless 5x5 A mm surface mount package which operate between G Dc and 20 GHz. The amplifier provides 15 dB of gain, 3 dB noise figure and +25 dBm of saturated output r & power while requiring only 160 mA from a +8v supply. e Gain flatness is excel ent at ±0.5 dB as well as ±4 iv deg deviation from linear phase from Dc - 10 GHz r making the Hmc465lp5(e) ideal for oc192 fiber D optic ln/mZ modulator driver amplifiers as well as test equipment applications. The Hmc465lp5(e) s - amplifiers i/os are internal y matched to 50 ohms. r ie lif p m
Electrical Specifications, T = +25° C, Vdd= 8V, Vgg2= 1.5V, Idd= 160 mA* A
A parameter min. Typ. max. min. Typ. max. min. Typ. max. Units frequency range Dc - 6 6.0 - 12.0 12.0 - 20.0 GHz Gain 13 16 12 15 9.5 12.5 dB Gain flatness ±0.75 ±0.25 ±1.5 dB Gain variation over Temperature 0.015 0.02 0.020 0.025 0.035 0.045 dB/ °c noise figure 3.0 3.0 4.0 dB input return loss 20 15 8 dB output return loss 22 17 12 dB output power for 1 dB compression (p1dB) 21 24 20 23 16 20 dBm saturated output power (psat) 25.5 25 23 dBm output Third order intercept (ip3) 32 28 24 dBm saturated output voltage 10 10 8 vpk-pk Group Delay variation ±15 ±15 psec supply current 160 160 160 mA (idd) (vdd= 8v, vgg1= -0.6v Typ.) * Adjust Vgg1 between -2 to 0V to achieve Idd= 160 mA typical. Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
