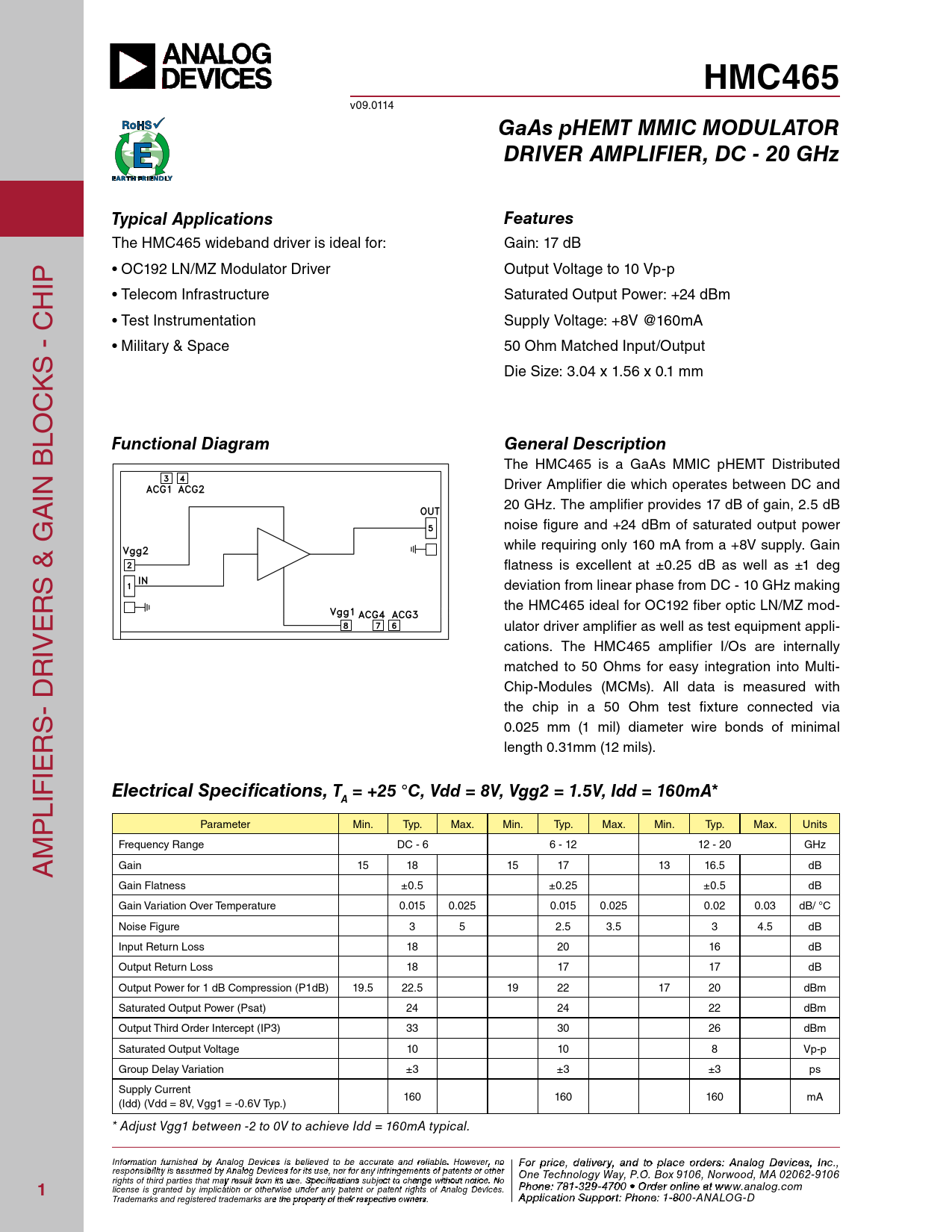

HMC465
v09.0114
GaAs pHEMT MMIC MODULATOR DRIVER AMPLIFIER, DC - 20 GHz Typical Applications Features
The HMC465 wideband driver is ideal for: Gain: 17 dB IP • OC192 LN/MZ Modulator Driver Output Voltage to 10 Vp-p H • Telecom Infrastructure Saturated Output Power: +24 dBm • Test Instrumentation Supply Voltage: +8V @160mA • Military & Space 50 Ohm Matched Input/Output S - C K Die Size: 3.04 x 1.56 x 0.1 mm C LO
Functional Diagram General Description
The HMC465 is a GaAs MMIC pHEMT Distributed IN B Driver Amplifier die which operates between DC and A 20 GHz. The amplifier provides 17 dB of gain, 2.5 dB noise figure and +24 dBm of saturated output power while requiring only 160 mA from a +8V supply. Gain flatness is excel ent at ±0.25 dB as well as ±1 deg S & G deviation from linear phase from DC - 10 GHz making R the HMC465 ideal for OC192 fiber optic LN/MZ mod- E ulator driver amplifier as well as test equipment appli- IV cations. The HMC465 amplifier I/Os are internal y R matched to 50 Ohms for easy integration into Multi- Chip-Modules (MCMs). All data is measured with - D the chip in a 50 Ohm test fixture connected via S 0.025 mm (1 mil) diameter wire bonds of minimal R length 0.31mm (12 mils). IE
Electrical Specifications, T = +25 °C, Vdd = 8V, Vgg2 = 1.5V, Idd = 160mA*
LIF
A
P Parameter Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Units M Frequency Range DC - 6 6 - 12 12 - 20 GHz A Gain 15 18 15 17 13 16.5 dB Gain Flatness ±0.5 ±0.25 ±0.5 dB Gain Variation Over Temperature 0.015 0.025 0.015 0.025 0.02 0.03 dB/ °C Noise Figure 3 5 2.5 3.5 3 4.5 dB Input Return Loss 18 20 16 dB Output Return Loss 18 17 17 dB Output Power for 1 dB Compression (P1dB) 19.5 22.5 19 22 17 20 dBm Saturated Output Power (Psat) 24 24 22 dBm Output Third Order Intercept (IP3) 33 30 26 dBm Saturated Output Voltage 10 10 8 Vp-p Group Delay Variation ±3 ±3 ±3 ps Supply Current 160 160 160 mA (Idd) (Vdd = 8V, Vgg1 = -0.6V Typ.) * Adjust Vgg1 between -2 to 0V to achieve Idd = 160mA typical. Inf F or o m r p atio r n ifc ur e n , d ishe e d lbiv y e A r n y a alog n D d t evic o p es is la beclie o eved rd to ebre sa: H ccur iattti e tae M nd re ilicarbloew . H a o ve C wever, o n rp o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other oration, 2 Elizabeth Drive, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 O rights of third parties that may result from its use. Specifications subject to change without notice. No P rd hone e r O : 7 n 81- -3li 2n 9 e a -47 t w 0 w 0 • O w rd .h e it r o t niltie n .c e ao t m
1
license is granted by implication or otherwise under any patent or patent rights of Analog Devices. www.analog.com Application Support: Pho Trademarks and registered trademarks are the property of their respective owners. ne: 978-250-33 A 4 p 3 o plica r a tio p n S p u s p @ po h rt itt : P ite ho . n c e o : 1m -800-ANALOG-D
