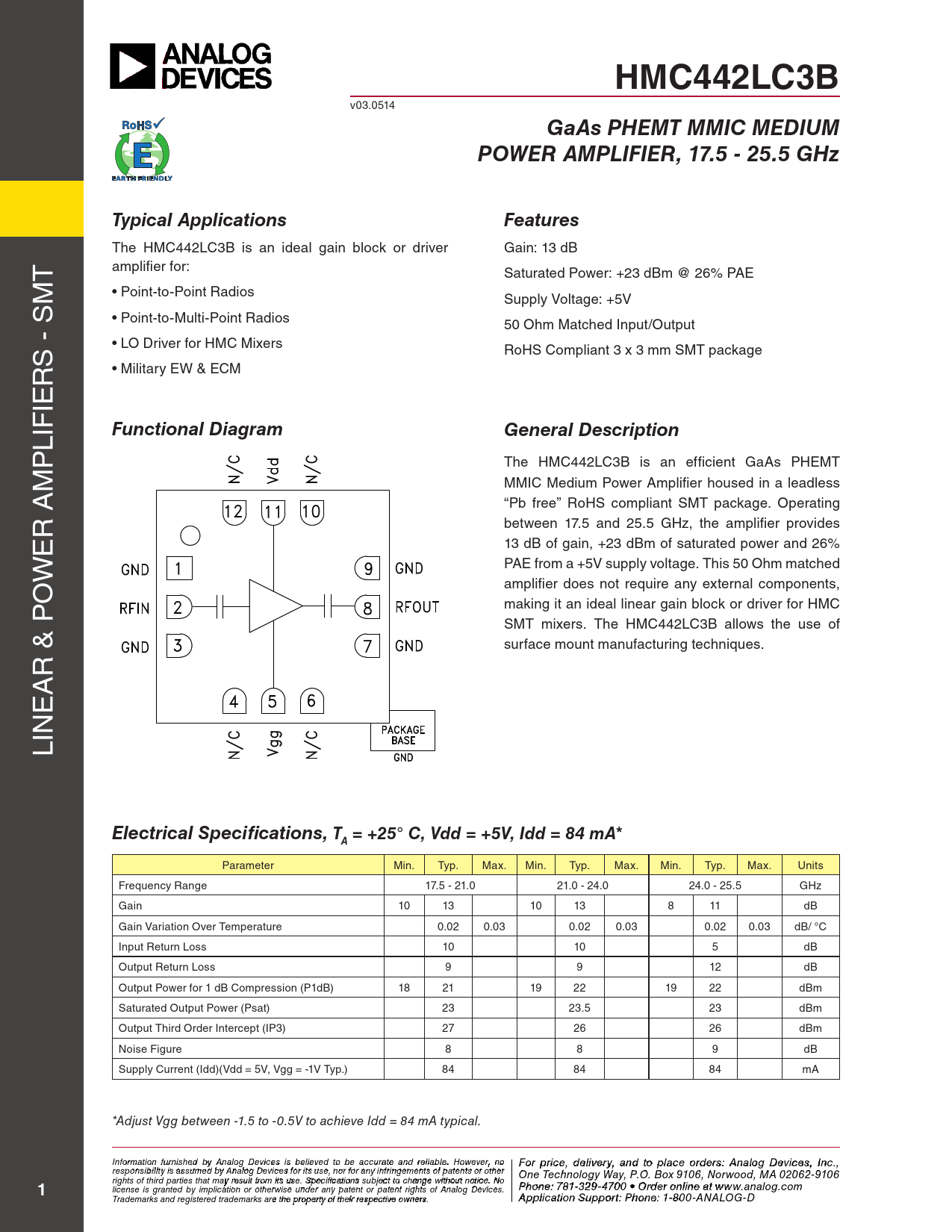

HMC442LC3B
v03.0514
GaAs PHEMT MMIC MEDIUM POWER AMPLIFIER, 17.5 - 25.5 GHz Typical Applications Features
The HMC442LC3B is an ideal gain block or driver Gain: 13 dB T amplifier for: Saturated Power: +23 dBm @ 26% PAE M • Point-to-Point Radios Supply Voltage: +5V • Point-to-Multi-Point Radios 50 Ohm Matched Input/Output S - S • LO Driver for HMC Mixers RoHS Compliant 3 x 3 mm SMT package R • Military EW & ECM IE LIF
Functional Diagram General Description
P The HMC442LC3B is an efficient GaAs PHEMT M MMIC Medium Power Amplifier housed in a leadless “Pb free” RoHS compliant SMT package. Operating R A between 17.5 and 25.5 GHz, the amplifier provides E 13 dB of gain, +23 dBm of saturated power and 26% W PAE from a +5V supply voltage. This 50 Ohm matched O amplifier does not require any external components, making it an ideal linear gain block or driver for HMC SMT mixers. The HMC442LC3B al ows the use of surface mount manufacturing techniques. R & P A E LIN
Electrical Specifications, T = +25° C, Vdd = +5V, Idd = 84 mA* A
Parameter Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Units Frequency Range 17.5 - 21.0 21.0 - 24.0 24.0 - 25.5 GHz Gain 10 13 10 13 8 11 dB Gain Variation Over Temperature 0.02 0.03 0.02 0.03 0.02 0.03 dB/ °C Input Return Loss 10 10 5 dB Output Return Loss 9 9 12 dB Output Power for 1 dB Compression (P1dB) 18 21 19 22 19 22 dBm Saturated Output Power (Psat) 23 23.5 23 dBm Output Third Order Intercept (IP3) 27 26 26 dBm Noise Figure 8 8 9 dB Supply Current (Idd)(Vdd = 5V, Vgg = -1V Typ.) 84 84 84 mA *Adjust Vgg between -1.5 to -0.5V to achieve Idd = 84 mA typical. Inf F or o m r p atio r n ifc ur e n , d ishe e d lbiv y e A r n y a alog n D d t evic o p es is la beclie o eved rd to ebre sa: H ccur iattti e tae M nd re ilicarbloew . H a o ve C wever, o n rp o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other oration, 2 Elizabeth Drive, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 O rights of third parties that may result from its use. Specifications subject to change without notice. No P rd hone e r O : 7 n 81- -3li 2n 9 e a -47 t w 0 w 0 • O w rd .h e it r o t niltie n .c e ao t m
