HMC441LC3B. GaAs pHEMT MMIC MEDIUM. POWER AMPLIFIER, 6 - 18 GHz. Absolute Maximum Ratings. Typical Supply Current vs. Vdd
Model Line for this Datasheet
Text Version of Document
HMC441LC3B
v08.1017

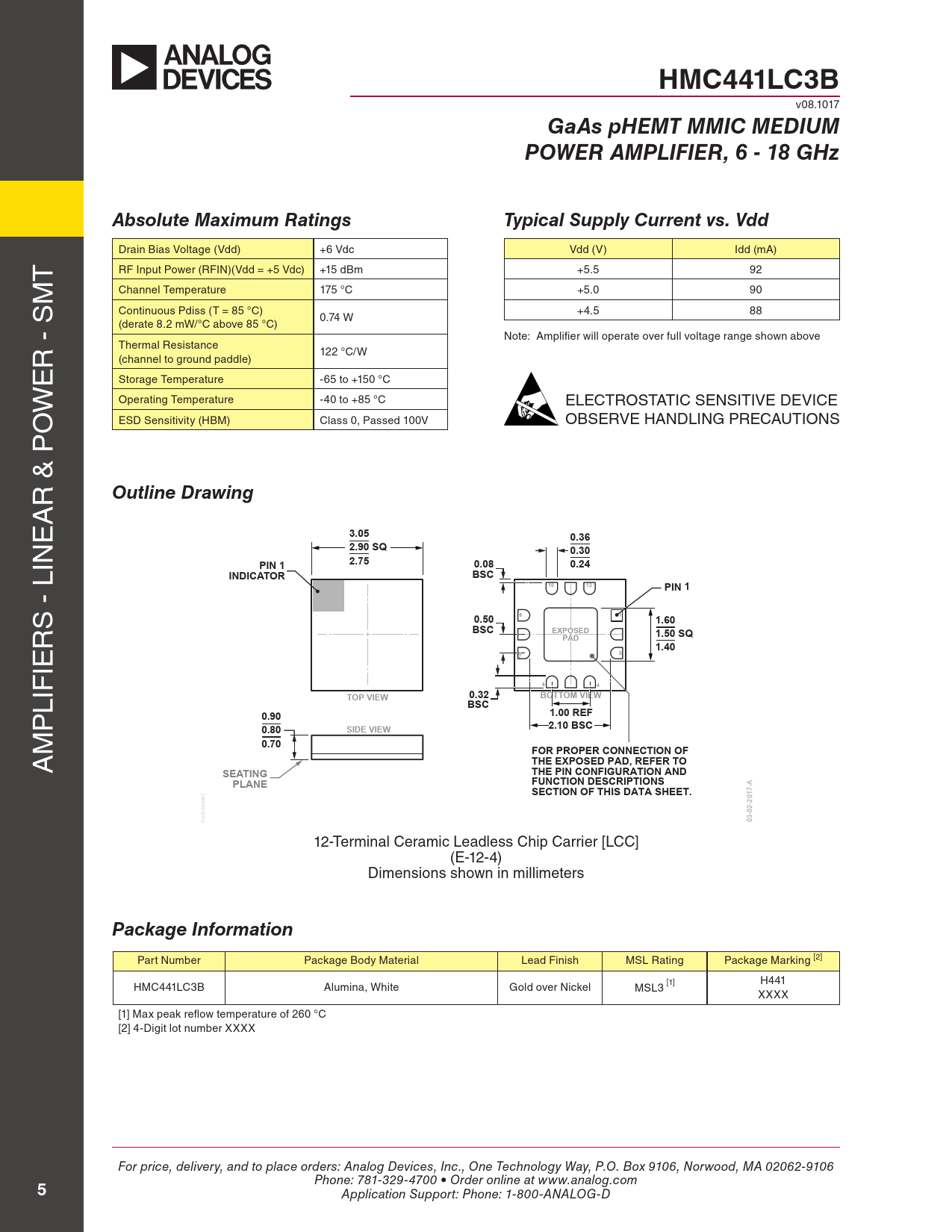

GaAs pHEMT MMIC MEDIUM POWER AMPLIFIER, 6 - 18 GHz Absolute Maximum Ratings Typical Supply Current vs. Vdd
Drain Bias Voltage (Vdd) +6 Vdc Vdd (V) Idd (mA) T RF Input Power (RFIN)(Vdd = +5 Vdc) +15 dBm +5.5 92 M Channel Temperature 175 °C +5.0 90 Continuous Pdiss (T = 85 °C) +4.5 88 0.74 W (derate 8.2 mW/°C above 85 °C) Note: Amplifier will operate over full voltage range shown above R - S Thermal Resistance 122 °C/W (channel to ground paddle) E Storage Temperature -65 to +150 °C W Operating Temperature -40 to +85 °C ELECTROSTATIC SENSITIVE DEVICE O ESD Sensitivity (HBM) Class 0, Passed 100V OBSERVE HANDLING PRECAUTIONS
12-Terminal Ceramic Leadless Chip Carrier [LCC] (E-12-4) Dimensions shown in millimeters.
R & P
Outline Drawing
A E
3.05 0.36
IN
2.90 SQ 0.30 PIN 1 2.75 0.08 0.24 INDICATOR BSC 10 12 PIN 1
S - L
0.50 9 1 1.60
R
BSC EXPOSED PAD 1.50 SQ 1.40
IE
7 3 6 4
LIF
TOP VIEW 0.32 BOTTOM VIEW BSC
P
1.00 REF 0.90 2.10 BSC
M
0.80 SIDE VIEW 0.70
A
FOR PROPER CONNECTION OF THE EXPOSED PAD, REFER TO SEATING THE PIN CONFIGURATION AND PLANE FUNCTION DESCRIPTIONS SECTION OF THIS DATA SHEET. PKG-004837 03-02-2017-A
12-Terminal Ceramic Leadless Chip Carrier [LCC] (E-12-4) Dimensions shown in mil imeters
Package Information
Part Number Package Body Material Lead Finish MSL Rating Package Marking [2] HMC441LC3B Alumina, White Gold over Nickel MSL3 [1] H441 XXXX [1] Max peak reflow temperature of 260 °C [2] 4-Digit lot number XXXX For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com
5
Application Support: Phone: 1-800-ANALOG-D
