Datasheet HMC8412TCPZ-EP (Analog Devices) - 5

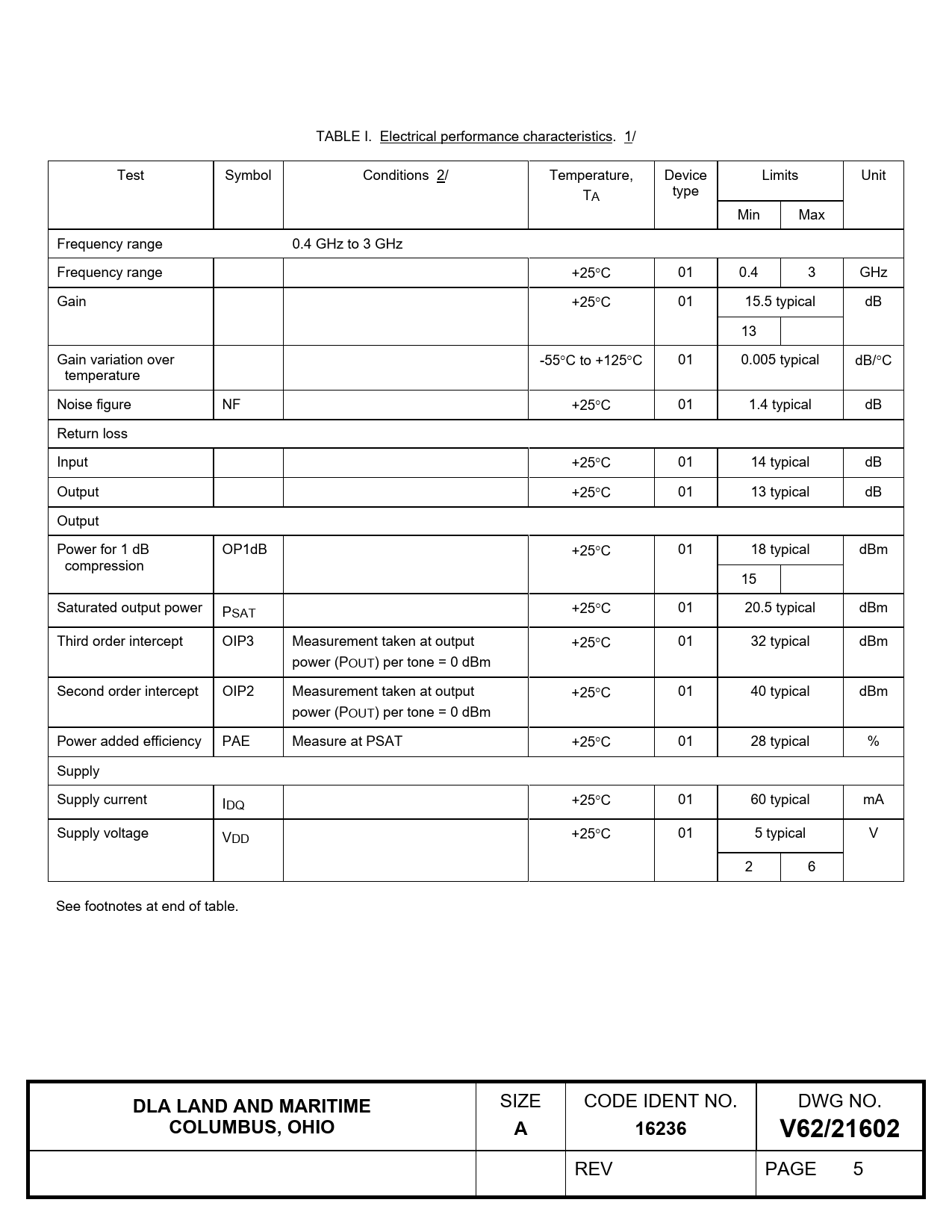

TABLE I. Electrical performance characteristics. 1/ Test Symbol Conditions 2/ Temperature, Device Limits Unit TA type Min Max Frequency range 0.4 GHz to 3 GHz Frequency range +25C 01 0.4 3 GHz Gain +25C 01 15.5 typical dB 13 Gain variation over -55C to +125C 01 0.005 typical dB/C temperature Noise figure NF +25C 01 1.4 typical dB Return loss Input +25C 01 14 typical dB Output +25C 01 13 typical dB Output Power for 1 dB OP1dB +25C 01 18 typical dBm compression 15 Saturated output power PSAT +25C 01 20.5 typical dBm Third order intercept OIP3 Measurement taken at output +25C 01 32 typical dBm power (POUT) per tone = 0 dBm Second order intercept OIP2 Measurement taken at output +25C 01 40 typical dBm power (POUT) per tone = 0 dBm Power added efficiency PAE Measure at PSAT +25C 01 28 typical % Supply Supply current IDQ +25C 01 60 typical mA Supply voltage VDD +25C 01 5 typical V 2 6 See footnotes at end of table.
DLA LAND AND MARITIME
SIZE CODE IDENT NO. DWG NO.
COLUMBUS, OHIO A 16236 V62/21602
REV PAGE 5
