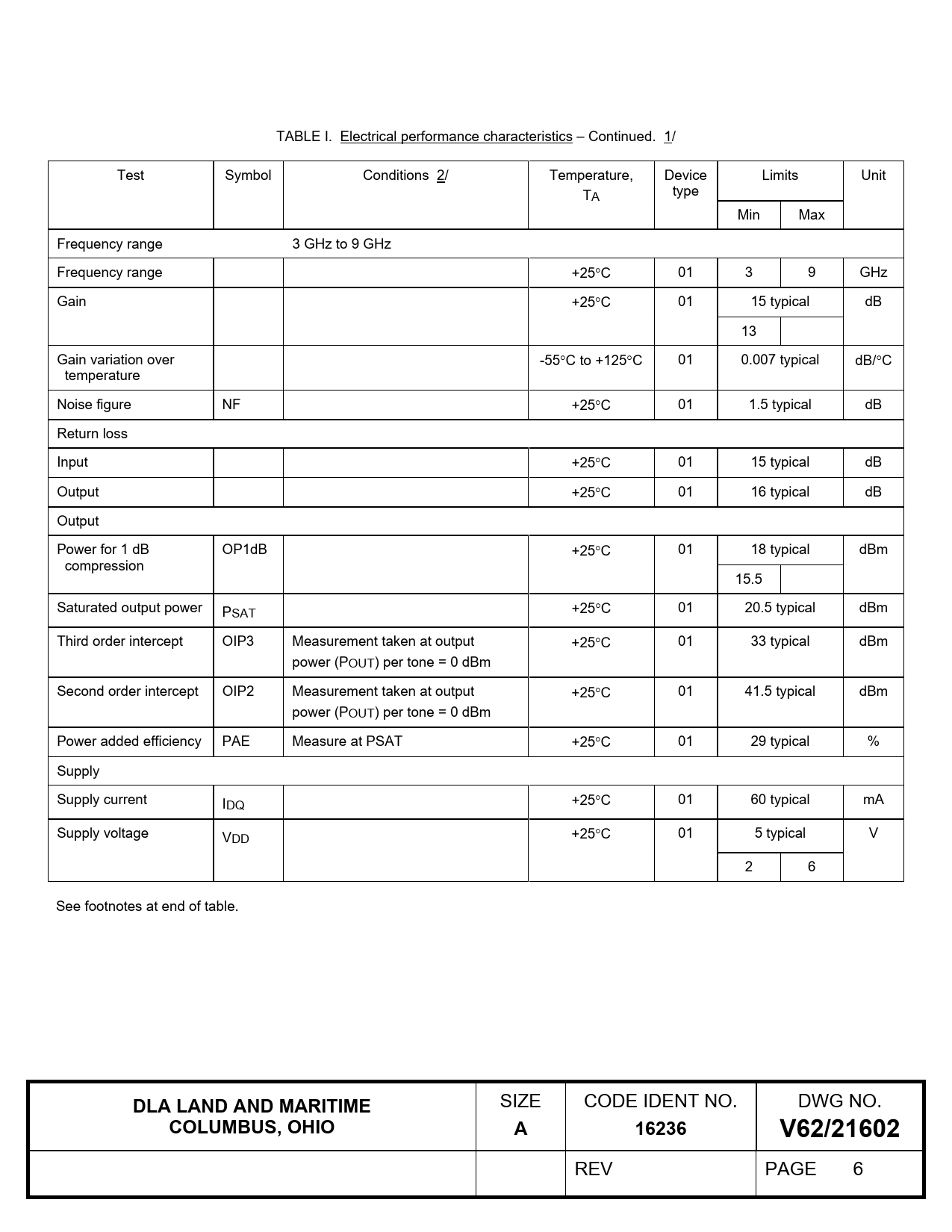

TABLE I. Electrical performance characteristics – Continued. 1/ Test Symbol Conditions 2/ Temperature, Device Limits Unit TA type Min Max Frequency range 3 GHz to 9 GHz Frequency range +25C 01 3 9 GHz Gain +25C 01 15 typical dB 13 Gain variation over -55C to +125C 01 0.007 typical dB/C temperature Noise figure NF +25C 01 1.5 typical dB Return loss Input +25C 01 15 typical dB Output +25C 01 16 typical dB Output Power for 1 dB OP1dB +25C 01 18 typical dBm compression 15.5 Saturated output power PSAT +25C 01 20.5 typical dBm Third order intercept OIP3 Measurement taken at output +25C 01 33 typical dBm power (POUT) per tone = 0 dBm Second order intercept OIP2 Measurement taken at output +25C 01 41.5 typical dBm power (POUT) per tone = 0 dBm Power added efficiency PAE Measure at PSAT +25C 01 29 typical % Supply Supply current IDQ +25C 01 60 typical mA Supply voltage VDD +25C 01 5 typical V 2 6 See footnotes at end of table.
