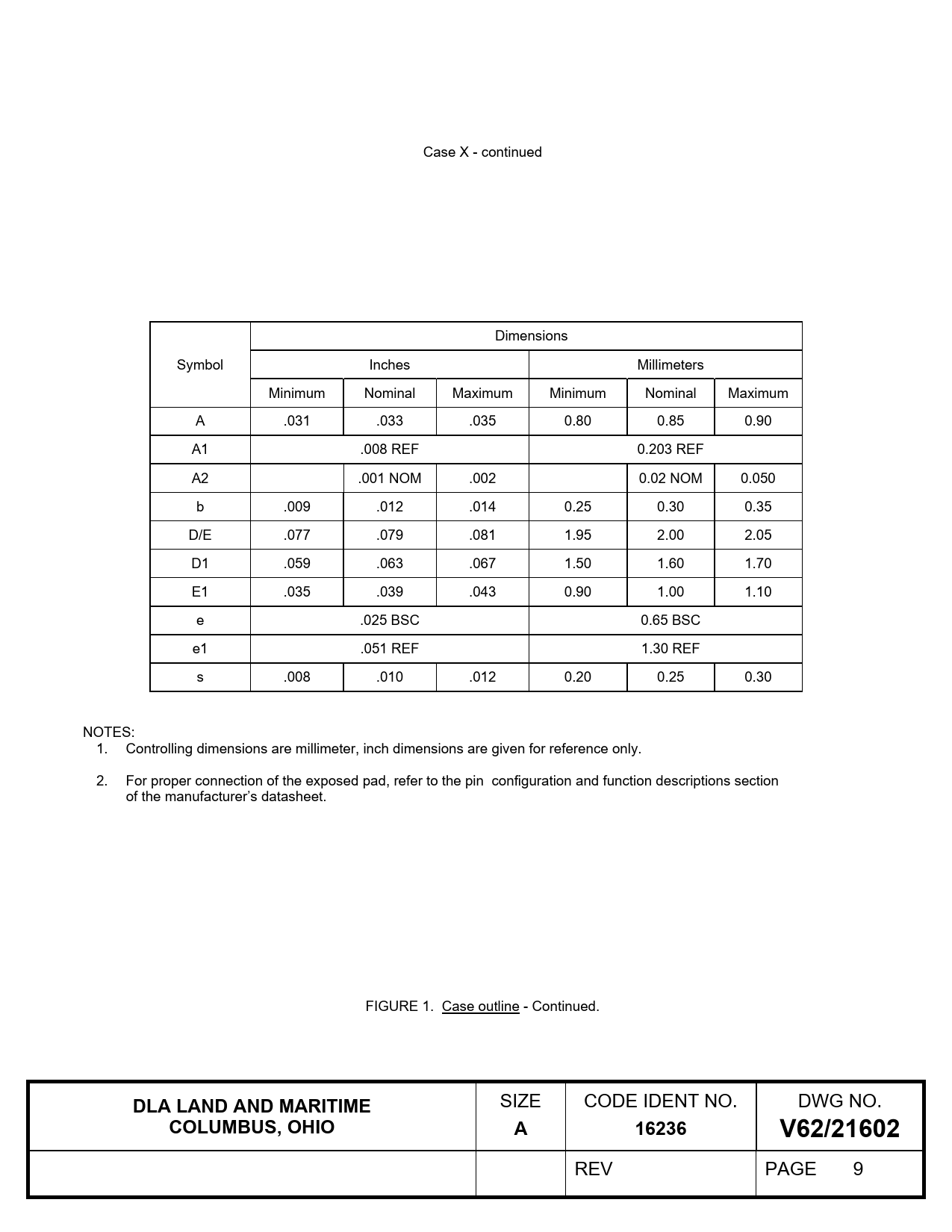

Case X - continued Dimensions Symbol Inches Millimeters Minimum Nominal Maximum Minimum Nominal Maximum A .031 .033 .035 0.80 0.85 0.90 A1 .008 REF 0.203 REF A2 .001 NOM .002 0.02 NOM 0.050 b .009 .012 .014 0.25 0.30 0.35 D/E .077 .079 .081 1.95 2.00 2.05 D1 .059 .063 .067 1.50 1.60 1.70 E1 .035 .039 .043 0.90 1.00 1.10 e .025 BSC 0.65 BSC e1 .051 REF 1.30 REF s .008 .010 .012 0.20 0.25 0.30 NOTES: 1. Controlling dimensions are millimeter, inch dimensions are given for reference only. 2. For proper connection of the exposed pad, refer to the pin configuration and function descriptions section of the manufacturer’s datasheet. FIGURE 1. Case outline - Continued.
DLA LAND AND MARITIME
SIZE CODE IDENT NO. DWG NO.
COLUMBUS, OHIO A 16236 V62/21602
REV PAGE 9
