| Description | 2 GHz to 28 GHz, GaAs pHEMT MMIC Low Noise Amplifier |
| Pages / Page | 16 / 3 — Data Sheet. HMC7950. SPECIFICATIONS 2 GHz TO 5 GHz FREQUENCY RANGE. Table … |
| Revision | A |
| File Format / Size | PDF / 408 Kb |
| Document Language | English |

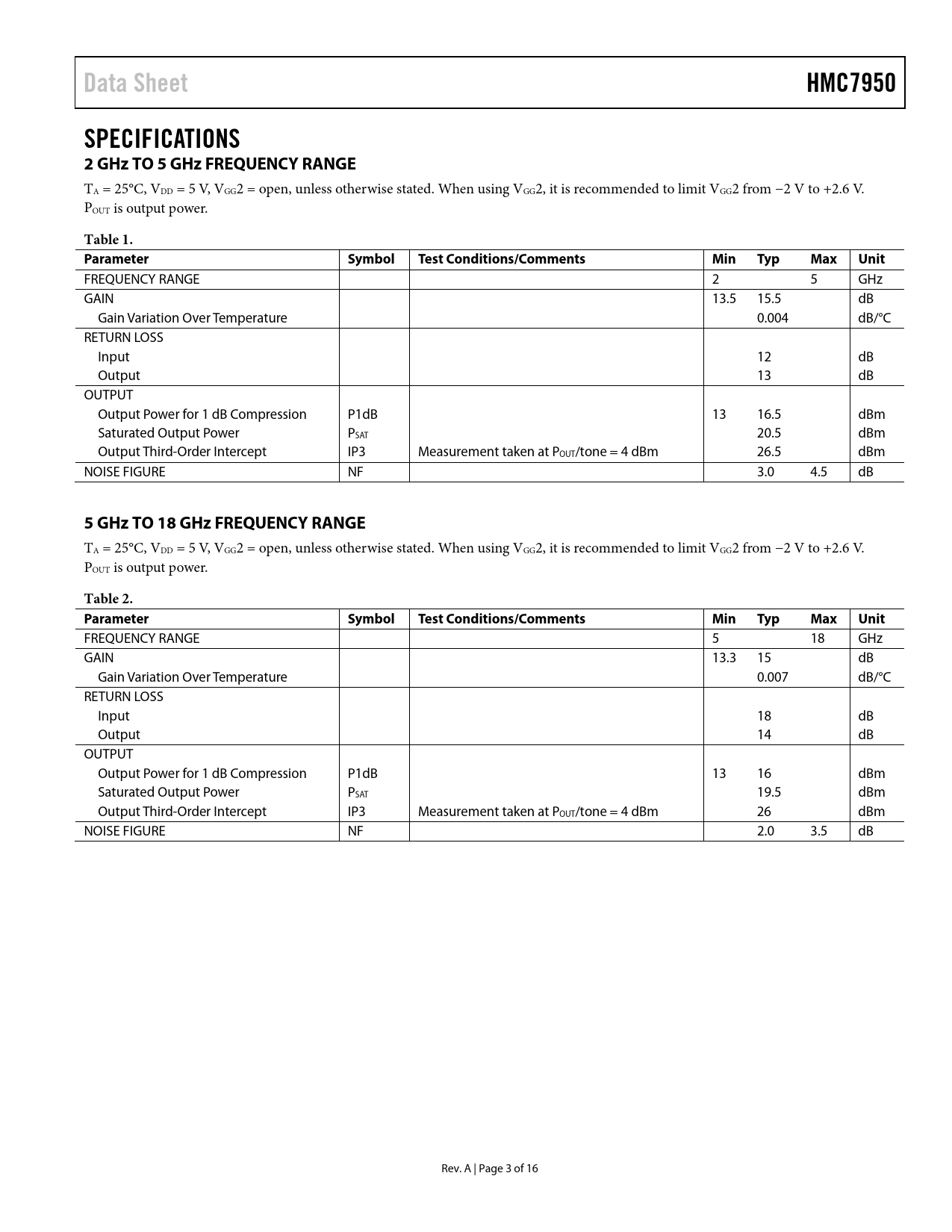

Data Sheet. HMC7950. SPECIFICATIONS 2 GHz TO 5 GHz FREQUENCY RANGE. Table 1. Parameter. Symbol. Test Conditions/Comments. Min. Typ. Max
Model Line for this Datasheet
Text Version of Document
Data Sheet HMC7950 SPECIFICATIONS 2 GHz TO 5 GHz FREQUENCY RANGE
TA = 25°C, VDD = 5 V, VGG2 = open, unless otherwise stated. When using VGG2, it is recommended to limit VGG2 from −2 V to +2.6 V. POUT is output power.
Table 1. Parameter Symbol Test Conditions/Comments Min Typ Max Unit
FREQUENCY RANGE 2 5 GHz GAIN 13.5 15.5 dB Gain Variation Over Temperature 0.004 dB/°C RETURN LOSS Input 12 dB Output 13 dB OUTPUT Output Power for 1 dB Compression P1dB 13 16.5 dBm Saturated Output Power PSAT 20.5 dBm Output Third-Order Intercept IP3 Measurement taken at POUT/tone = 4 dBm 26.5 dBm NOISE FIGURE NF 3.0 4.5 dB
5 GHz TO 18 GHz FREQUENCY RANGE
TA = 25°C, VDD = 5 V, VGG2 = open, unless otherwise stated. When using VGG2, it is recommended to limit VGG2 from −2 V to +2.6 V. POUT is output power.
Table 2. Parameter Symbol Test Conditions/Comments Min Typ Max Unit
FREQUENCY RANGE 5 18 GHz GAIN 13.3 15 dB Gain Variation Over Temperature 0.007 dB/°C RETURN LOSS Input 18 dB Output 14 dB OUTPUT Output Power for 1 dB Compression P1dB 13 16 dBm Saturated Output Power PSAT 19.5 dBm Output Third-Order Intercept IP3 Measurement taken at POUT/tone = 4 dBm 26 dBm NOISE FIGURE NF 2.0 3.5 dB Rev. A | Page 3 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS 2 GHz TO 5 GHz FREQUENCY RANGE 5 GHz TO 18 GHz FREQUENCY RANGE 18 GHz TO 28 GHz FREQUENCY RANGE DC SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS INTERFACE SCHEMATICS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATIONS INFORMATION EVALUATION BOARD EVALUATION BOARD SCHEMATIC OUTLINE DIMENSIONS ORDERING GUIDE
