HMC392A
v02.0618

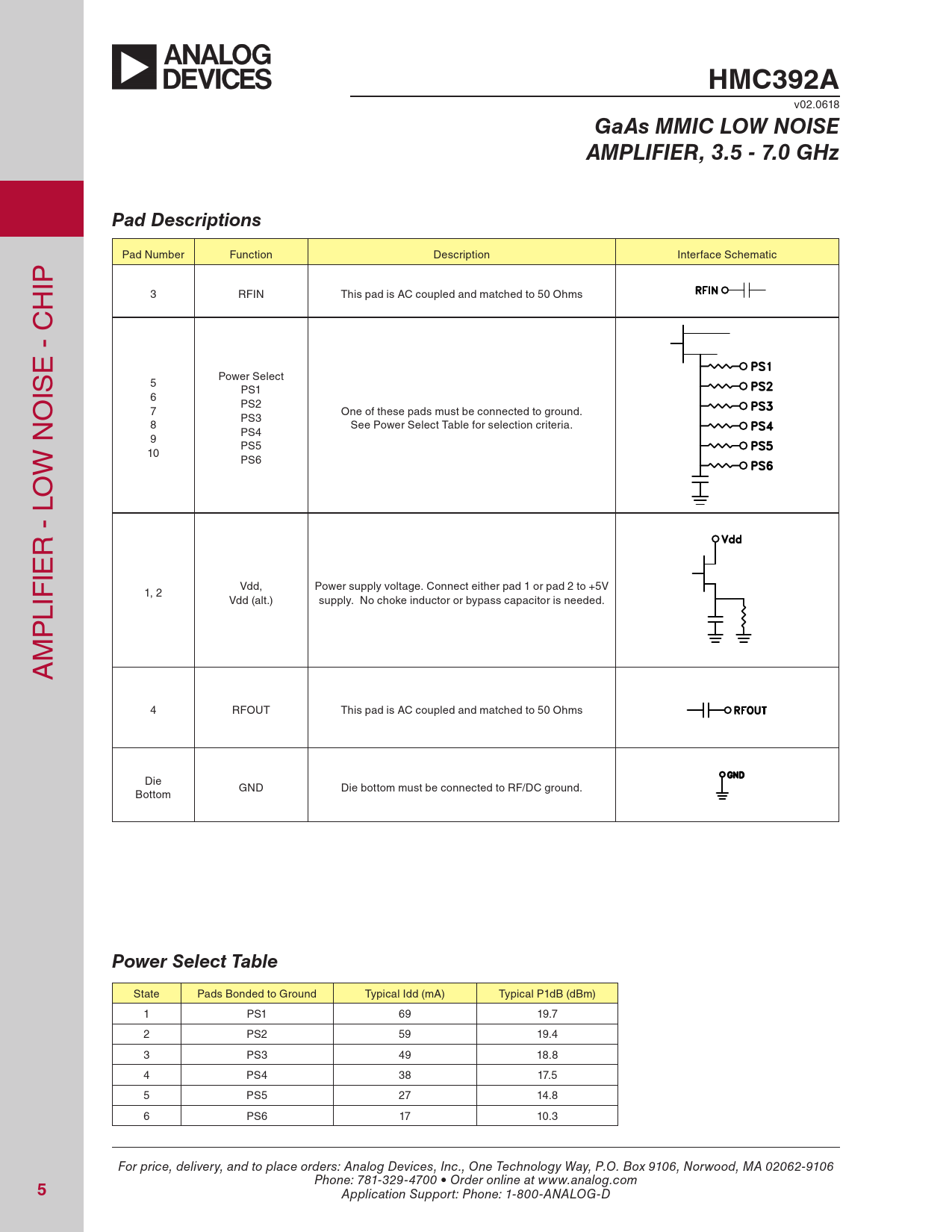

GaAs MMIC LOW NOISE AMPLIFIER, 3.5 - 7.0 GHz Pad Descriptions
Pad Number Function Description Interface Schematic IP H 3 RFIN This pad is AC coupled and matched to 50 Ohms E - C IS Power Select 5 PS1 O 6 PS2 7 One of these pads must be connected to ground. PS3 8 See Power Select Table for selection criteria. PS4 9 PS5 W N 10 PS6 O R - L IE Vdd, Power supply voltage. Connect either pad 1 or pad 2 to +5V 1, 2 LIF Vdd (alt.) supply. No choke inductor or bypass capacitor is needed. P M A 4 RFOUT This pad is AC coupled and matched to 50 Ohms Die GND Die bottom must be connected to RF/DC ground. Bottom
Power Select Table
State Pads Bonded to Ground Typical Idd (mA) Typical P1dB (dBm) 1 PS1 69 19.7 2 PS2 59 19.4 3 PS3 49 18.8 4 PS4 38 17.5 5 PS5 27 14.8 6 PS6 17 10.3 For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com
