Datasheet HMC1040CHIPS (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | 20 GHz to 44 GHz, GaAs, pHEMT, MMIC, Low Noise Amplifier |
| Pages / Page | 14 / 5 — Data Sheet. HMC1040CHIPS. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. … |
| File Format / Size | PDF / 351 Kb |
| Document Language | English |

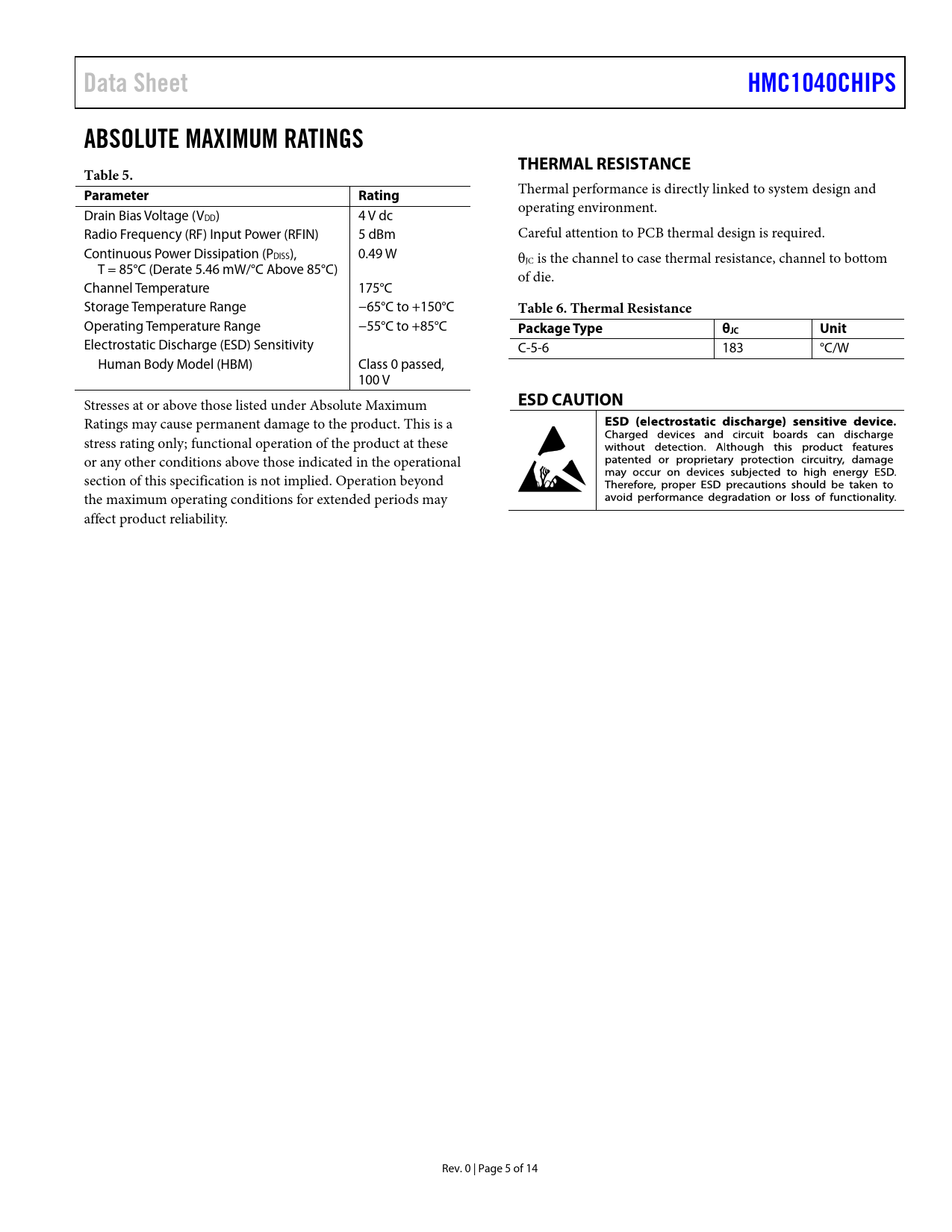

Data Sheet. HMC1040CHIPS. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 5. Parameter. Rating. Table 6. Thermal Resistance
Model Line for this Datasheet
Text Version of Document
Data Sheet HMC1040CHIPS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Table 5. Parameter Rating
Thermal performance is directly linked to system design and Drain Bias Voltage (V operating environment. DD) 4 V dc Radio Frequency (RF) Input Power (RFIN) 5 dBm Careful attention to PCB thermal design is required. Continuous Power Dissipation (PDISS), 0.49 W θJC is the channel to case thermal resistance, channel to bottom T = 85°C (Derate 5.46 mW/°C Above 85°C) of die. Channel Temperature 175°C Storage Temperature Range −65°C to +150°C
Table 6. Thermal Resistance
Operating Temperature Range −55°C to +85°C
Package Type θJC Unit
Electrostatic Discharge (ESD) Sensitivity C-5-6 183 °C/W Human Body Model (HBM) Class 0 passed, 100 V Stresses at or above those listed under Absolute Maximum
