HMC-ALH369
v06.0118
GaAs HEMT MMIC LOW NOISE AMPLIFIER, 24 - 40 GHz Pad Descriptions

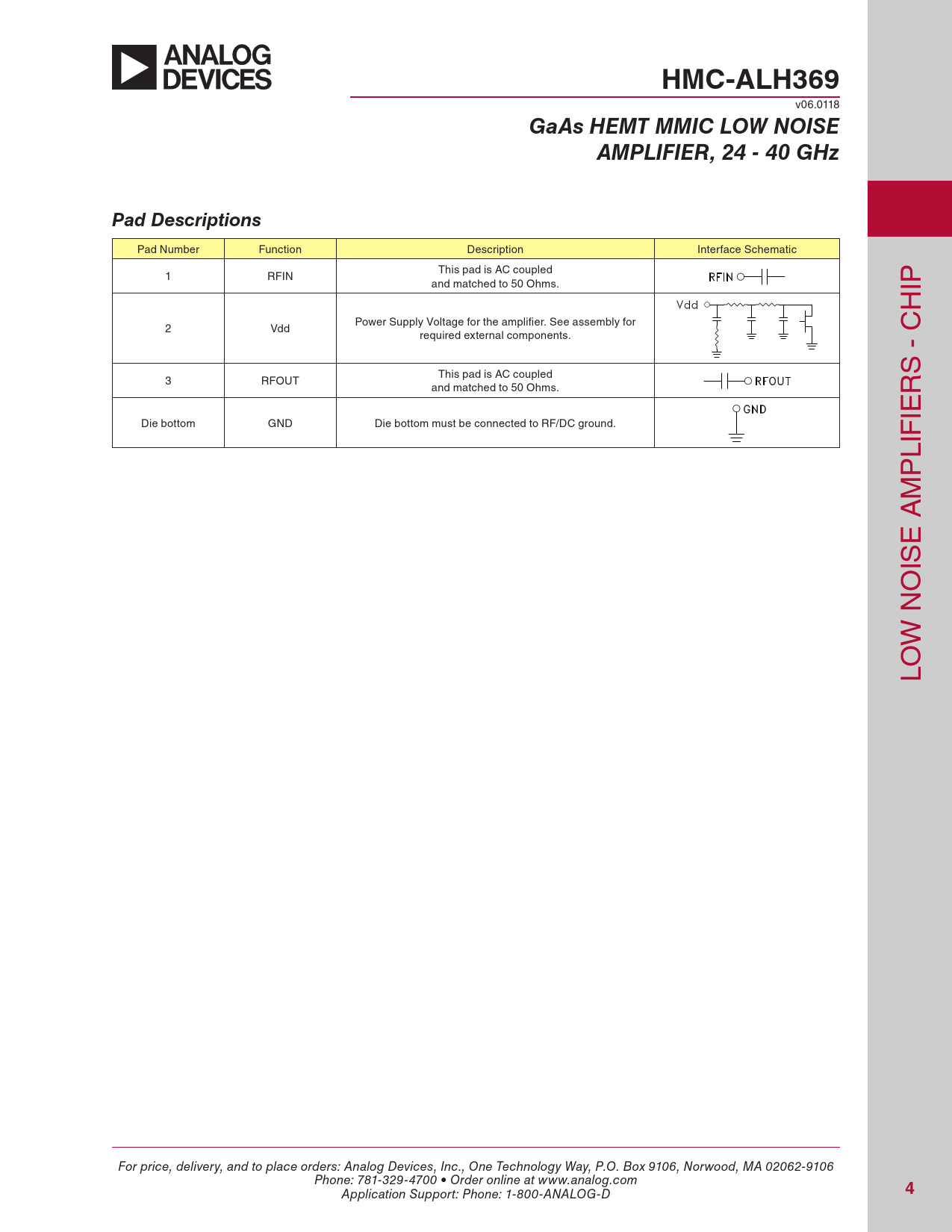

Pad Number Function Description Interface Schematic This pad is AC coupled 1 RFIN and matched to 50 Ohms. IP H Power Supply Voltage for the amplifier. See assembly for 2 Vdd required external components. C - This pad is AC coupled S 3 RFOUT and matched to 50 Ohms. R IE Die bottom GND Die bottom must be connected to RF/DC ground. LIF P M A E IS O N W LO For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D
