HMC-ALH369. GaAs HEMT MMIC LOW NOISE. AMPLIFIER, 24 - 40 GHz. Assembly Diagram
Model Line for this Datasheet
Text Version of Document
HMC-ALH369
v06.0118

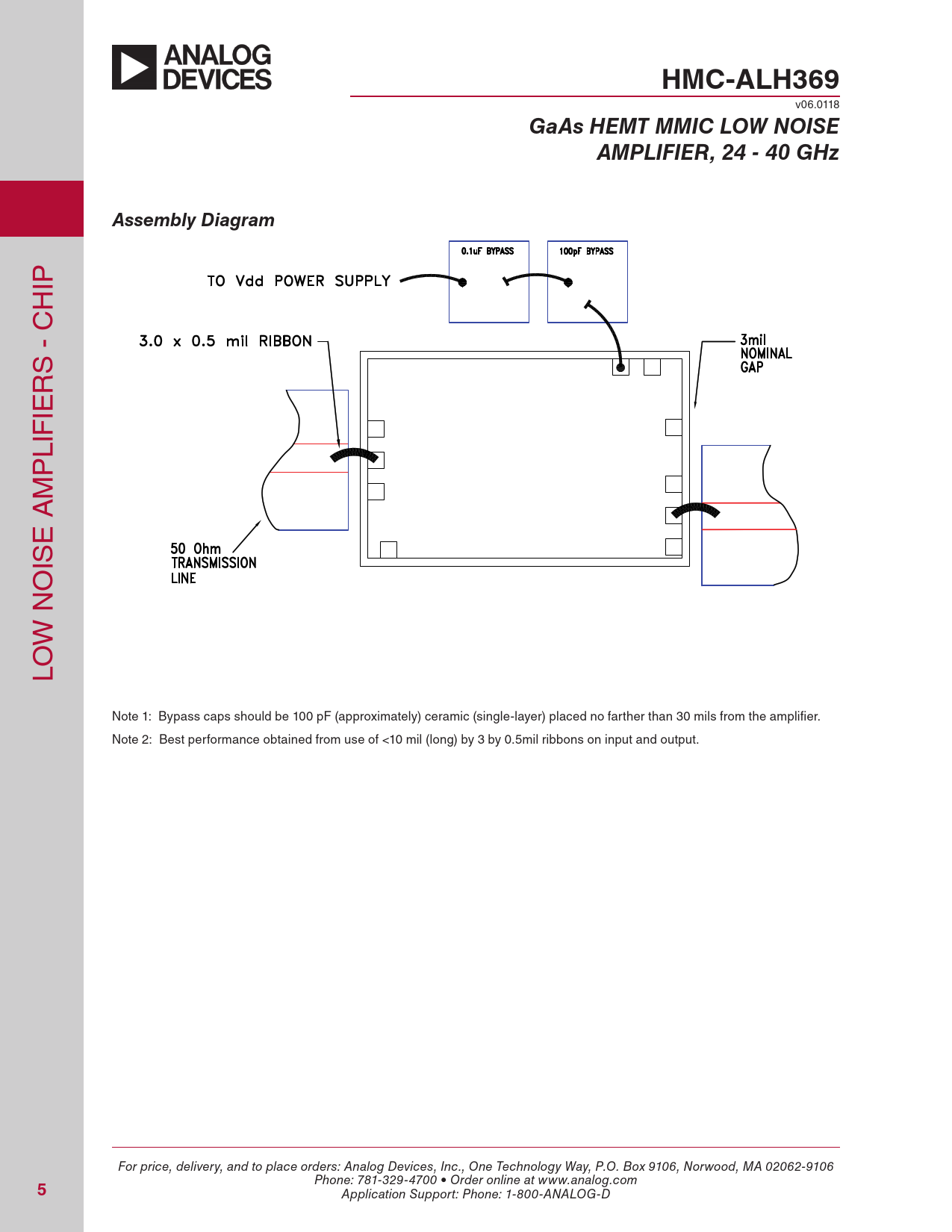

GaAs HEMT MMIC LOW NOISE AMPLIFIER, 24 - 40 GHz Assembly Diagram
IP H C - S R IE LIF P M A E IS O N W LO Note 1: Bypass caps should be 100 pF (approximately) ceramic (single-layer) placed no farther than 30 mils from the amplifier. Note 2: Best performance obtained from use of <10 mil (long) by 3 by 0.5mil ribbons on input and output. For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com
