Datasheet HMC-ALH102 (Analog Devices)
| Manufacturer | Analog Devices |
| Description | GaAs HEMT MMIC WIDEBAND LOW NOISE AMPLIFIER, 2 - 20 GHz |
| Pages / Page | 6 / 1 — HMC-ALH102. GaAs HEMT MMIC WIDEBAND. LOW NOISE AMPLIFIER, 2 - 20 GHz. … |
| File Format / Size | PDF / 464 Kb |
| Document Language | English |
HMC-ALH102. GaAs HEMT MMIC WIDEBAND. LOW NOISE AMPLIFIER, 2 - 20 GHz. Typical Applications. Features. Functional Diagram
Model Line for this Datasheet
Text Version of Document
HMC-ALH102
v03.0118

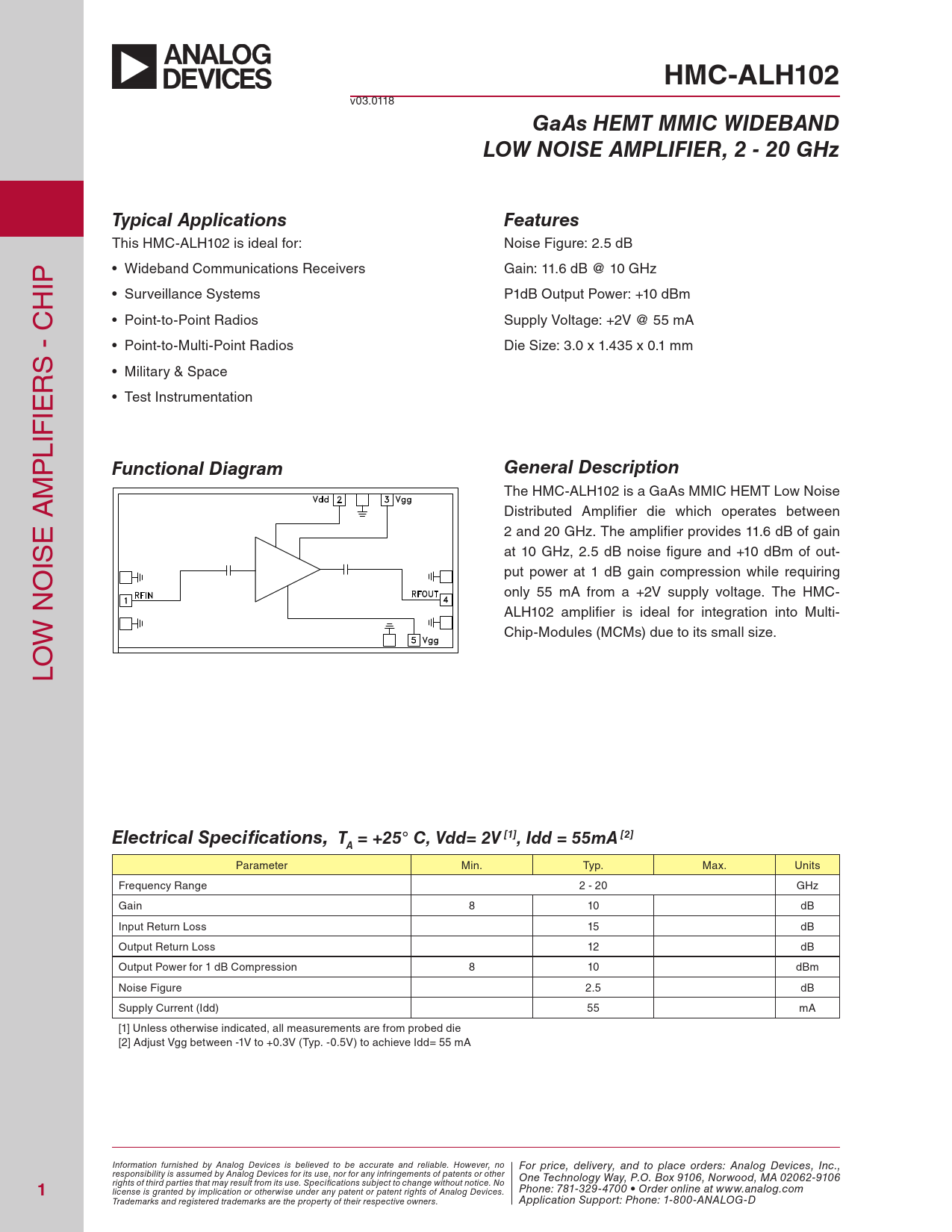

GaAs HEMT MMIC WIDEBAND LOW NOISE AMPLIFIER, 2 - 20 GHz Typical Applications Features
This HMC-ALH102 is ideal for: Noise Figure: 2.5 dB IP • Wideband Communications Receivers Gain: 11.6 dB @ 10 GHz H • Surveil ance Systems P1dB Output Power: +10 dBm C • Point-to-Point Radios Supply Voltage: +2V @ 55 mA - • Point-to-Multi-Point Radios Die Size: 3.0 x 1.435 x 0.1 mm S R • Military & Space IE • Test Instrumentation LIF P
Functional Diagram General Description
M The HMC-ALH102 is a GaAs MMIC HEMT Low Noise A Distributed Amplifier die which operates between E 2 and 20 GHz. The amplifier provides 11.6 dB of gain IS at 10 GHz, 2.5 dB noise figure and +10 dBm of out- O put power at 1 dB gain compression while requiring only 55 mA from a +2V supply voltage. The HMC- N ALH102 amplifier is ideal for integration into Multi- W Chip-Modules (MCMs) due to its small size. LO
Electrical Specifications, T = +25° C, Vdd= 2V [1], Idd = 55mA [2] A
Parameter Min. Typ. Max. Units Frequency Range 2 - 20 GHz Gain 8 10 dB Input Return Loss 15 dB Output Return Loss 12 dB Output Power for 1 dB Compression 8 10 dBm Noise Figure 2.5 dB Supply Current (Idd) 55 mA [1] Unless otherwise indicated, all measurements are from probed die [2] Adjust Vgg between -1V to +0.3V (Typ. -0.5V) to achieve Idd= 55 mA Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
