| Manufacturer | Analog Devices |
| Description | GaAs SMT PHEMT LOW NOISE AMPLIFIER, 6 - 20 GHz |
| Pages / Page | 6 / 5 — HMC565LC5. GaAs SMT PHEMT LOW NOISE. AMPLIFIER, 6 - 20 GHz. Pin … |
| File Format / Size | PDF / 1.0 Mb |
| Document Language | English |

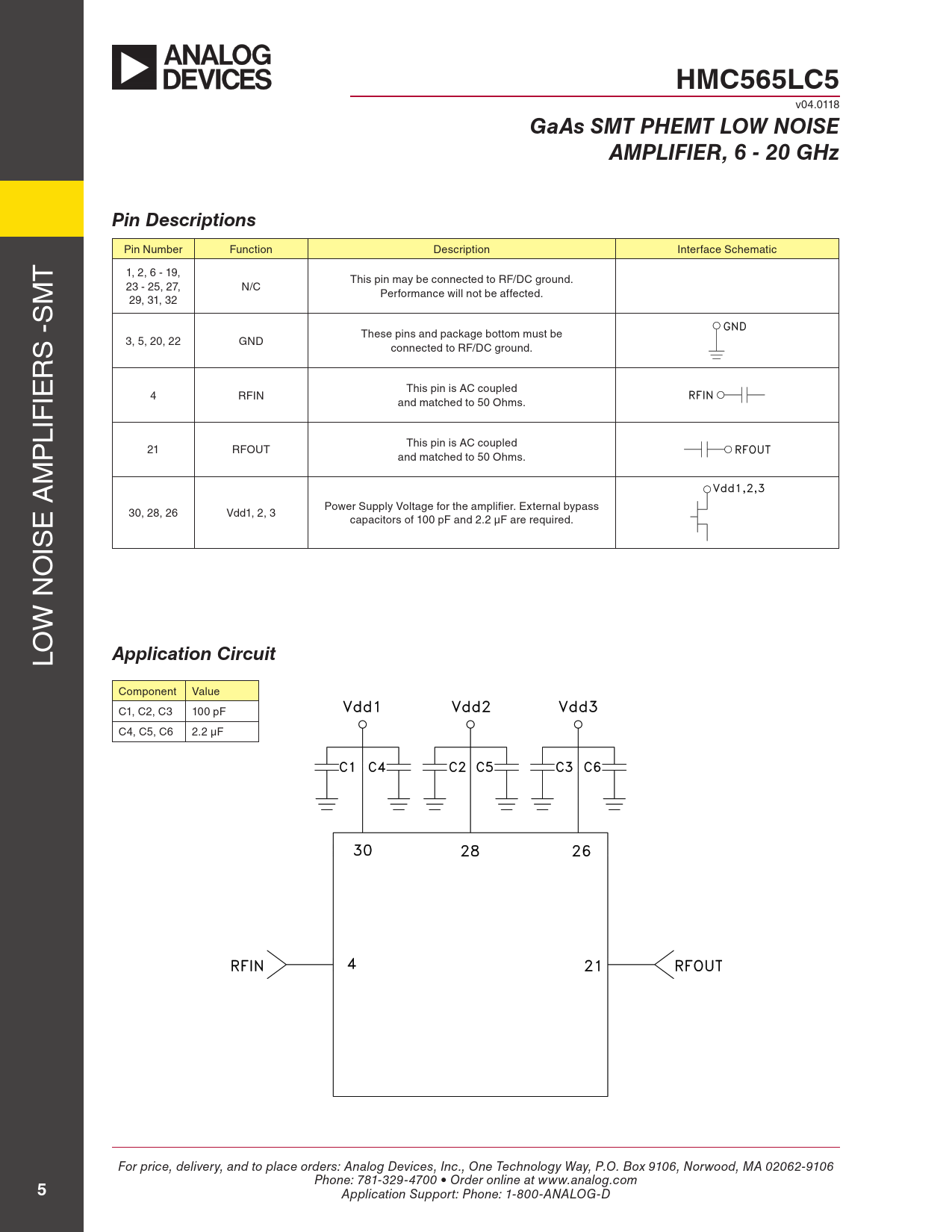

HMC565LC5. GaAs SMT PHEMT LOW NOISE. AMPLIFIER, 6 - 20 GHz. Pin Descriptions. Application Circuit
Model Line for this Datasheet
Text Version of Document
HMC565LC5
v04.0118
GaAs SMT PHEMT LOW NOISE AMPLIFIER, 6 - 20 GHz Pin Descriptions
Pin Number Function Description Interface Schematic T 1, 2, 6 - 19, M This pin may be connected to RF/DC ground. 23 - 25, 27, N/C Performance will not be affected. S 29, 31, 32 - S These pins and package bottom must be 3, 5, 20, 22 GND connected to RF/DC ground. R IE This pin is AC coupled 4 RFIN and matched to 50 Ohms. LIF P This pin is AC coupled 21 RFOUT and matched to 50 Ohms. M A E Power Supply Voltage for the amplifier. External bypass 30, 28, 26 Vdd1, 2, 3 capacitors of 100 pF and 2.2 µF are required. IS O N W LO
Application Circuit
Component Value C1, C2, C3 100 pF C4, C5, C6 2.2 µF For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com
