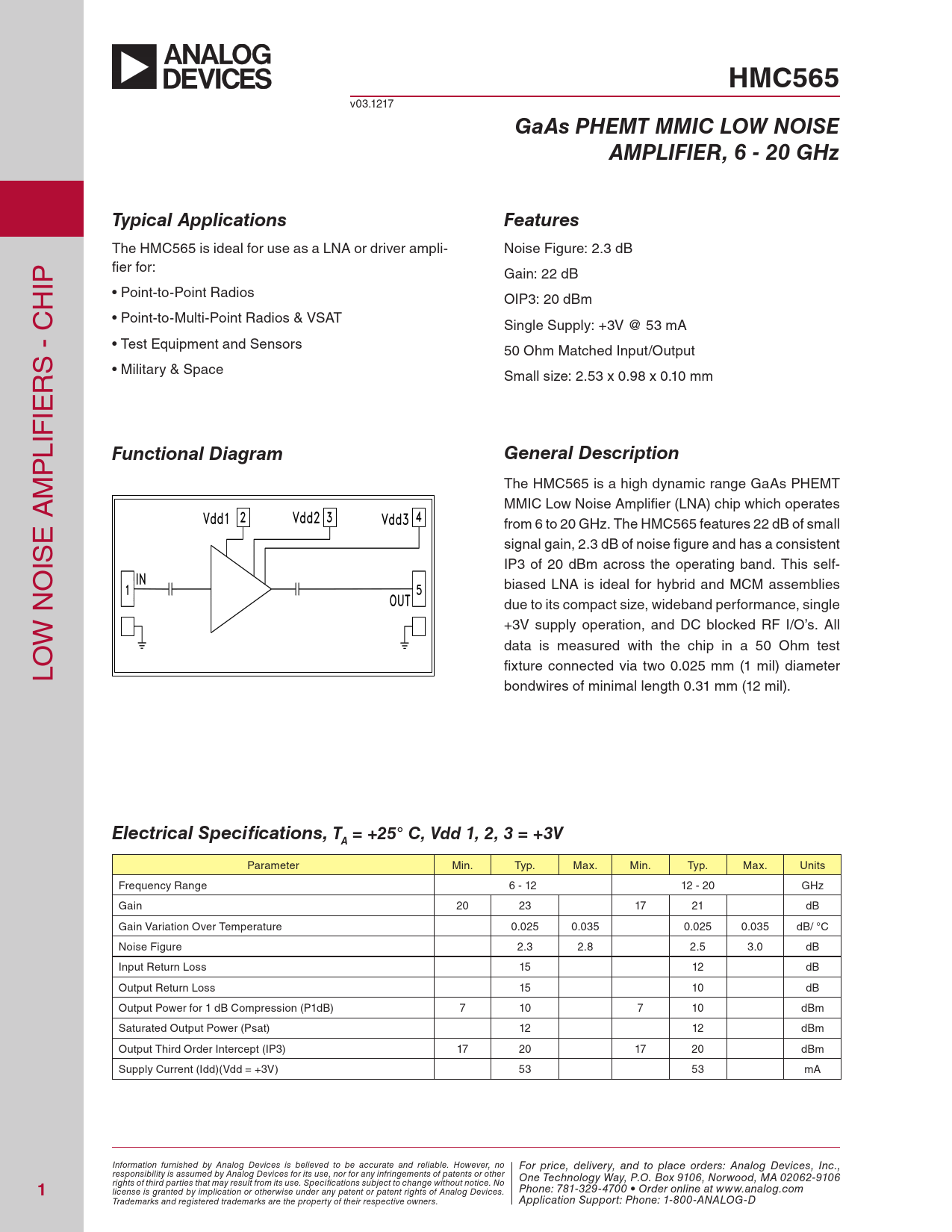

HMC565
v03.1217
GaAs PHEMT MMIC LOW NOISE AMPLIFIER, 6 - 20 GHz Typical Applications Features
The HMC565 is ideal for use as a LNA or driver ampli- Noise Figure: 2.3 dB IP fier for: Gain: 22 dB H • Point-to-Point Radios OIP3: 20 dBm C • Point-to-Multi-Point Radios & VSAT Single Supply: +3V @ 53 mA - • Test Equipment and Sensors S 50 Ohm Matched Input/Output R • Military & Space Small size: 2.53 x 0.98 x 0.10 mm IE LIF P
Functional Diagram General Description
M The HMC565 is a high dynamic range GaAs PHEMT A MMIC Low Noise Amplifier (LNA) chip which operates E from 6 to 20 GHz. The HMC565 features 22 dB of small IS signal gain, 2.3 dB of noise figure and has a consistent IP3 of 20 dBm across the operating band. This self- O biased LNA is ideal for hybrid and MCM assemblies N due to its compact size, wideband performance, single W +3V supply operation, and DC blocked RF I/O’s. All data is measured with the chip in a 50 Ohm test LO fixture connected via two 0.025 mm (1 mil) diameter bondwires of minimal length 0.31 mm (12 mil).
Electrical Specifications, T = +25° C, Vdd 1, 2, 3 = +3V A
Parameter Min. Typ. Max. Min. Typ. Max. Units Frequency Range 6 - 12 12 - 20 GHz Gain 20 23 17 21 dB Gain Variation Over Temperature 0.025 0.035 0.025 0.035 dB/ °C Noise Figure 2.3 2.8 2.5 3.0 dB Input Return Loss 15 12 dB Output Return Loss 15 10 dB Output Power for 1 dB Compression (P1dB) 7 10 7 10 dBm Saturated Output Power (Psat) 12 12 dBm Output Third Order Intercept (IP3) 17 20 17 20 dBm Supply Current (Idd)(Vdd = +3V) 53 53 mA Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
1
rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 781-329-4700 • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 1-800-ANALOG-D
