| Description | GaAs PHEMT MMIC LOW NOISE AMPLIFIER, 6 - 20 GHz |
| Pages / Page | 6 / 5 — HMC565. GaAs PHEMT MMIC LOW NOISE. AMPLIFIER, 6 - 20 GHz. Pad … |
| File Format / Size | PDF / 581 Kb |
| Document Language | English |
HMC565. GaAs PHEMT MMIC LOW NOISE. AMPLIFIER, 6 - 20 GHz. Pad Descriptions. Assembly Diagram
Model Line for this Datasheet
Text Version of Document
HMC565
v03.1217
GaAs PHEMT MMIC LOW NOISE AMPLIFIER, 6 - 20 GHz Pad Descriptions

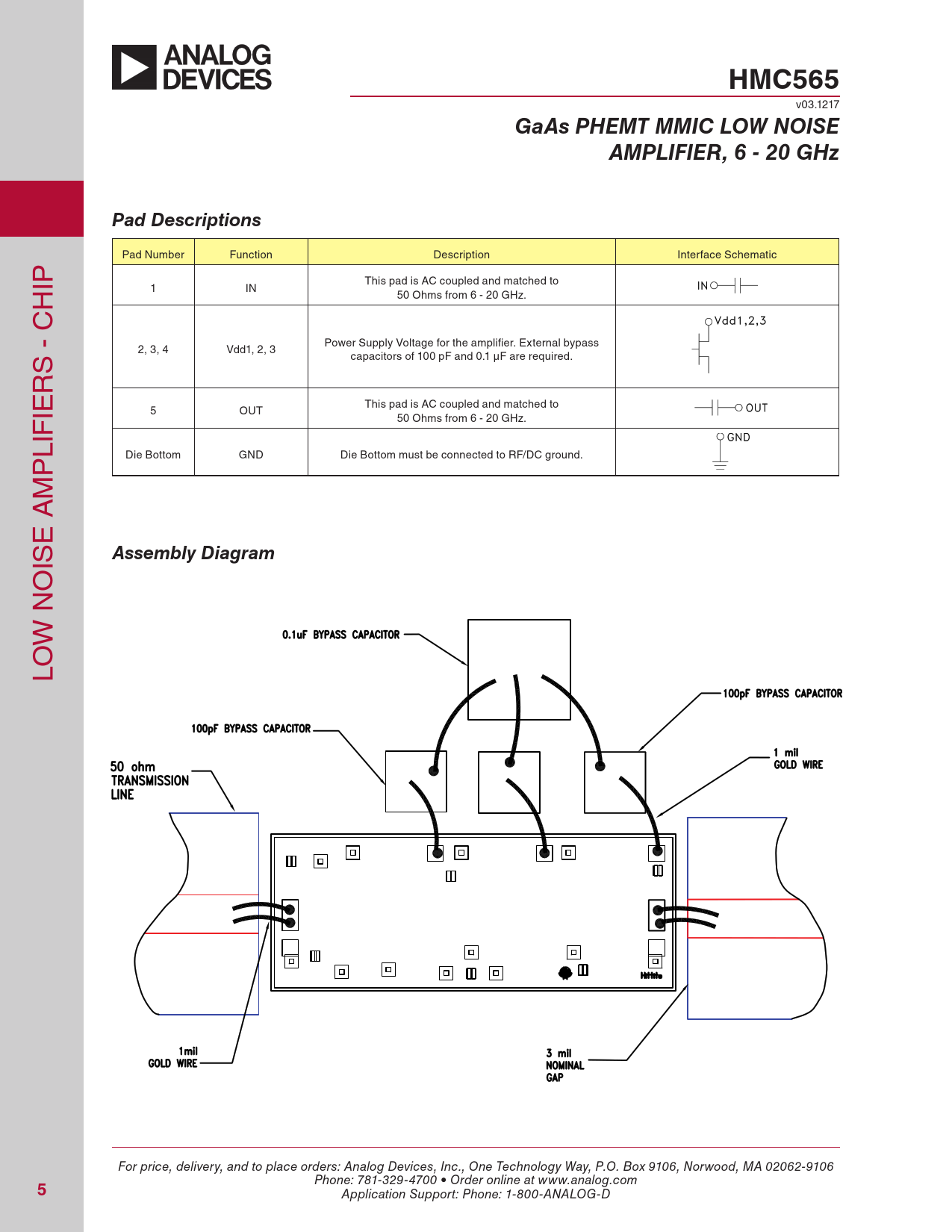

Pad Number Function Description Interface Schematic IP This pad is AC coupled and matched to H 1 IN 50 Ohms from 6 - 20 GHz. C - Power Supply Voltage for the amplifier. External bypass S 2, 3, 4 Vdd1, 2, 3 capacitors of 100 pF and 0.1 µF are required. R IE This pad is AC coupled and matched to 5 OUT 50 Ohms from 6 - 20 GHz. LIF P Die Bottom GND Die Bottom must be connected to RF/DC ground. M A E IS
