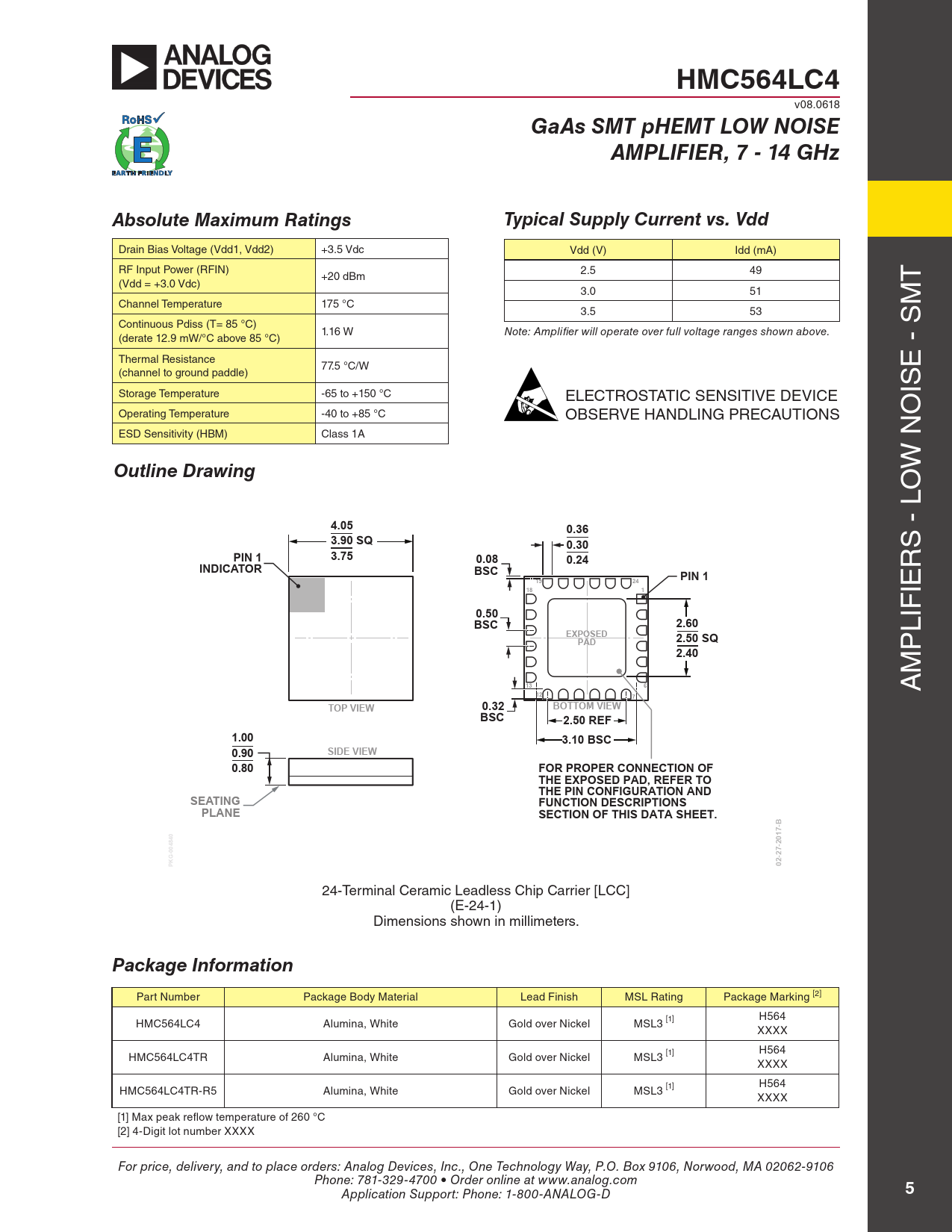

HMC564LC4
v08.0618
GaAs SMT pHEMT LOW NOISE AMPLIFIER, 7 - 14 GHz Absolute Maximum Ratings Typical Supply Current vs. Vdd
Drain Bias Voltage (Vdd1, Vdd2) +3.5 Vdc Vdd (V) Idd (mA) RF Input Power (RFIN) +20 dBm 2.5 49 (Vdd = +3.0 Vdc) T 3.0 51 Channel Temperature 175 °C M 3.5 53 Continuous Pdiss (T= 85 °C) 1.16 W Note: Amplifier will operate over full voltage ranges shown above. (derate 12.9 mW/°C above 85 °C) Thermal Resistance 77.5 °C/W E - S (channel to ground paddle) Storage Temperature -65 to +150 °C IS ELECTROSTATIC SENSITIVE DEVICE Operating Temperature -40 to +85 °C OBSERVE HANDLING PRECAUTIONS O
24-Terminal Ceramic Leadless Chip Carrier [LCC]
ESD Sensitivity (HBM) Class 1A
(E-24-1) Dimensions shown in millimeters.
W N
Outline Drawing
O
4.05 0.36 3.90 SQ 0.30
S - L
PIN 1 3.75 0.08 0.24 INDICATOR
R
BSC PIN 1 19 24 18 1
IE
0.50 BSC 2.60 EXPOSED
LIF
PAD 2.50 SQ
P
2.40
M
13 6 12
A
7 TOP VIEW 0.32 BOTTOM VIEW BSC 2.50 REF 1.00 3.10 BSC 0.90 SIDE VIEW 0.80 FOR PROPER CONNECTION OF THE EXPOSED PAD, REFER TO THE PIN CONFIGURATION AND SEATING FUNCTION DESCRIPTIONS PLANE SECTION OF THIS DATA SHEET. PKG-004840 02-27-2017-B
24-Terminal Ceramic Leadless Chip Carrier [LCC] (E-24-1) Dimensions shown in millimeters.
Package Information
Part Number Package Body Material Lead Finish MSL Rating Package Marking [2] HMC564LC4 Alumina, White Gold over Nickel MSL3 [1] H564 XXXX HMC564LC4TR Alumina, White Gold over Nickel MSL3 [1] H564 XXXX HMC564LC4TR-R5 Alumina, White Gold over Nickel MSL3 [1] H564 XXXX [1] Max peak reflow temperature of 260 °C [2] 4-Digit lot number XXXX For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D
5
