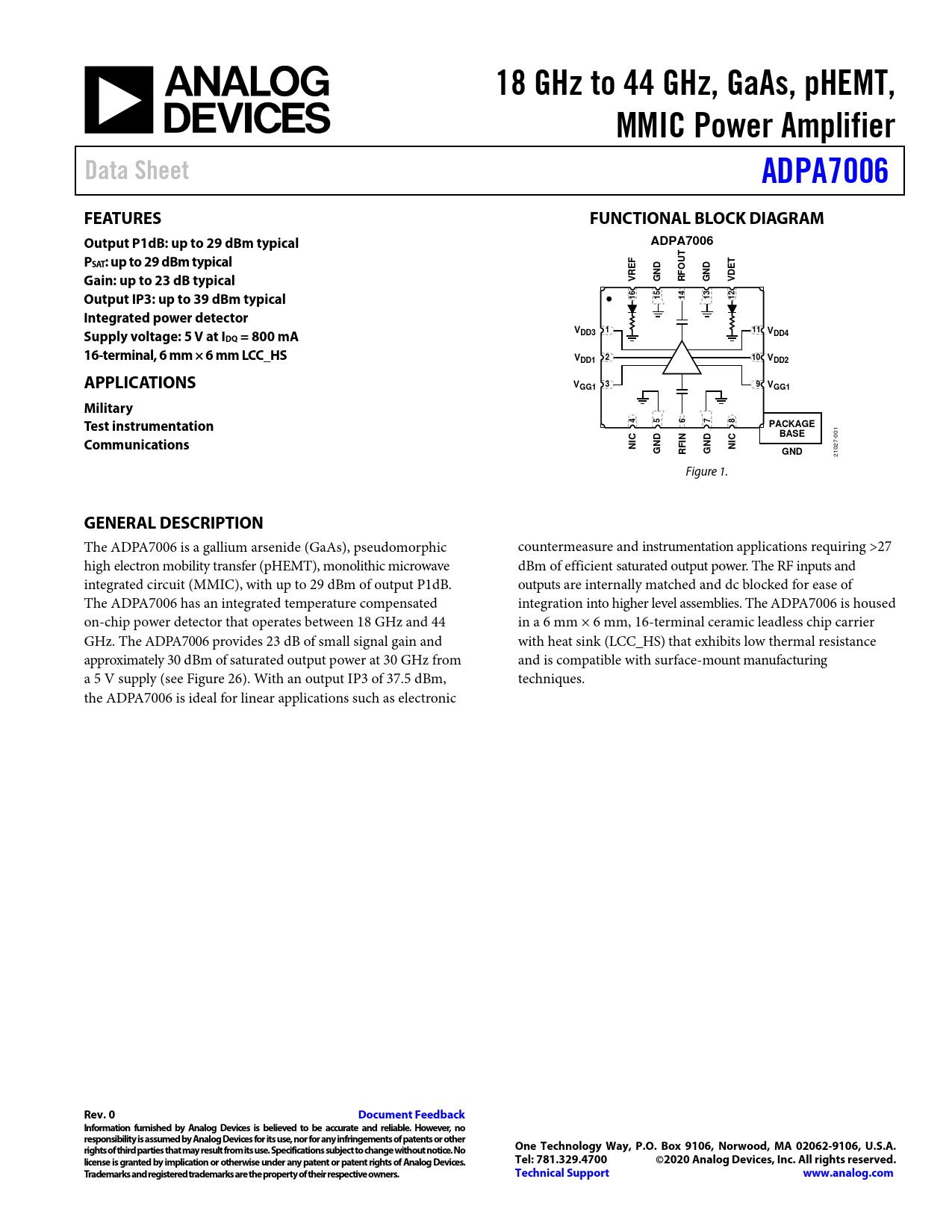

18 GHz to 44 GHz, GaAs, pHEMT,. MMIC Power Amplifier. Data Sheet. ADPA7006. FEATURES. FUNCTIONAL BLOCK DIAGRAM
Model Line for this Datasheet
Text Version of Document
link to page 10
18 GHz to 44 GHz, GaAs, pHEMT, MMIC Power Amplifier Data Sheet ADPA7006 FEATURES FUNCTIONAL BLOCK DIAGRAM Output P1dB: up to 29 dBm typical ADPA7006 P UT SAT: up to 29 dBm typical EF O ET ND ND Gain: up to 23 dB typical VR G RF G VD Output IP3: up to 39 dBm typical 16 15 14 13 12 Integrated power detector Supply voltage: 5 V at I V 1 DD3 11 VDD4 DQ = 800 mA 16-terminal, 6 mm × 6 mm LCC_HS V 2 DD1 10 VDD2 APPLICATIONS V 3 GG1 9 VGG1 Military Test instrumentation 4 5 6 7 8 PACKAGE BASE
001
Communications C C NI ND FIN ND NI G R G GND
21027- Figure 1.
GENERAL DESCRIPTION
The ADPA7006 is a gallium arsenide (GaAs), pseudomorphic countermeasure and instrumentation applications requiring >27 high electron mobility transfer (pHEMT), monolithic microwave dBm of efficient saturated output power. The RF inputs and integrated circuit (MMIC), with up to 29 dBm of output P1dB. outputs are internally matched and dc blocked for ease of The ADPA7006 has an integrated temperature compensated integration into higher level assemblies. The ADPA7006 is housed on-chip power detector that operates between 18 GHz and 44 in a 6 mm × 6 mm, 16-terminal ceramic leadless chip carrier GHz. The ADPA7006 provides 23 dB of small signal gain and with heat sink (LCC_HS) that exhibits low thermal resistance approximately 30 dBm of saturated output power at 30 GHz from and is compatible with surface-mount manufacturing a 5 V supply (see Figure 26). With an output IP3 of 37.5 dBm, techniques. the ADPA7006 is ideal for linear applications such as electronic
