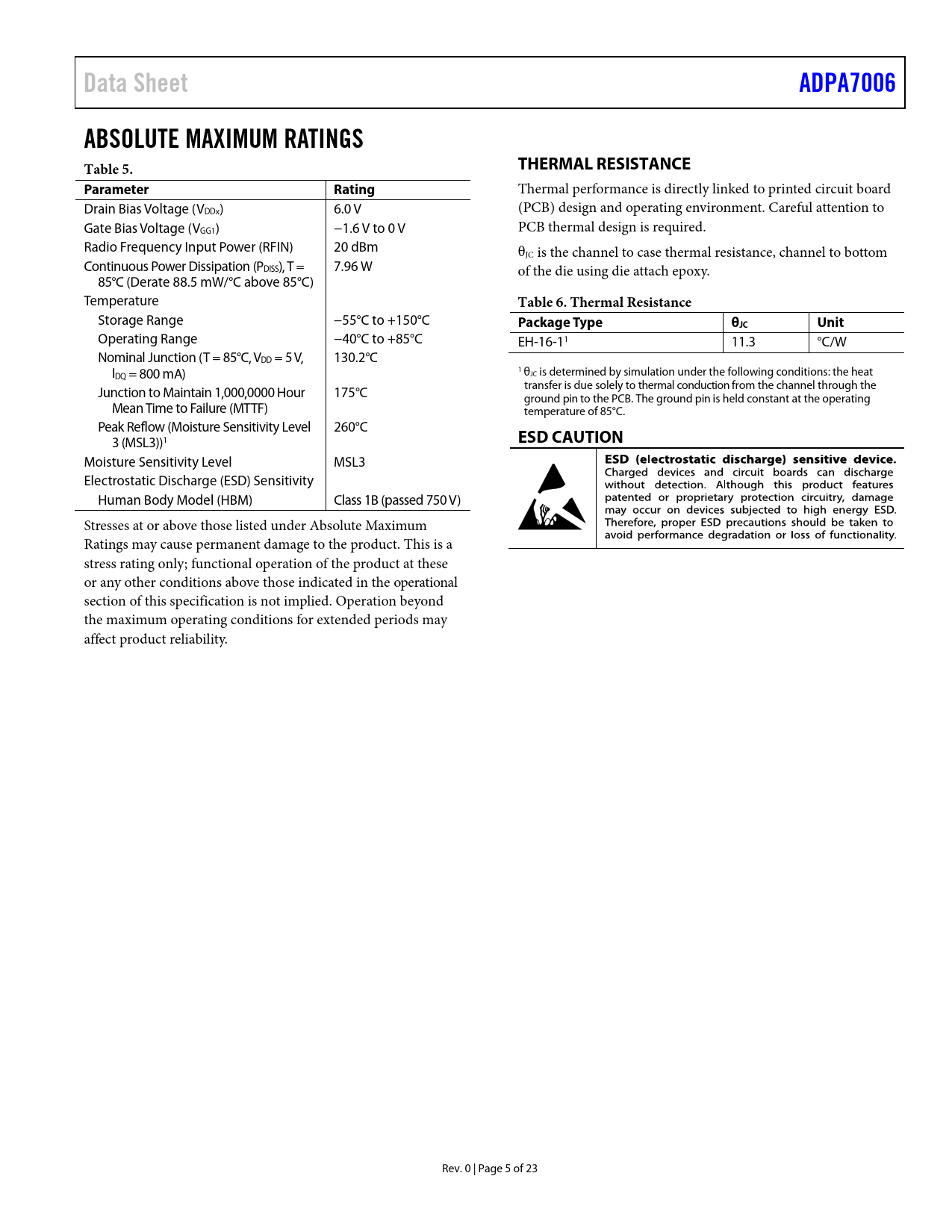

Data Sheet. ADPA7006. ABSOLUTE MAXIMUM RATINGS Table 5. THERMAL RESISTANCE. Parameter. Rating. Table 6. Thermal Resistance
Model Line for this Datasheet
Text Version of Document
Data Sheet ADPA7006 ABSOLUTE MAXIMUM RATINGS Table 5. THERMAL RESISTANCE Parameter Rating
Thermal performance is directly linked to printed circuit board Drain Bias Voltage (VDDx) 6.0 V (PCB) design and operating environment. Careful attention to Gate Bias Voltage (VGG1) −1.6 V to 0 V PCB thermal design is required. Radio Frequency Input Power (RFIN) 20 dBm θJC is the channel to case thermal resistance, channel to bottom Continuous Power Dissipation (PDISS), T = 7.96 W of the die using die attach epoxy. 85°C (Derate 88.5 mW/°C above 85°C) Temperature
Table 6. Thermal Resistance
Storage Range −55°C to +150°C
Package Type θJC Unit
Operating Range −40°C to +85°C EH-16-11 11.3 °C/W Nominal Junction (T = 85°C, VDD = 5 V, 130.2°C I 1 DQ = 800 mA) θJC is determined by simulation under the fol owing conditions: the heat Junction to Maintain 1,000,0000 Hour 175°C transfer is due solely to thermal conduction from the channel through the ground pin to the PCB. The ground pin is held constant at the operating Mean Time to Failure (MTTF) temperature of 85°C. Peak Reflow (Moisture Sensitivity Level 260°C 3 (MSL3))1
