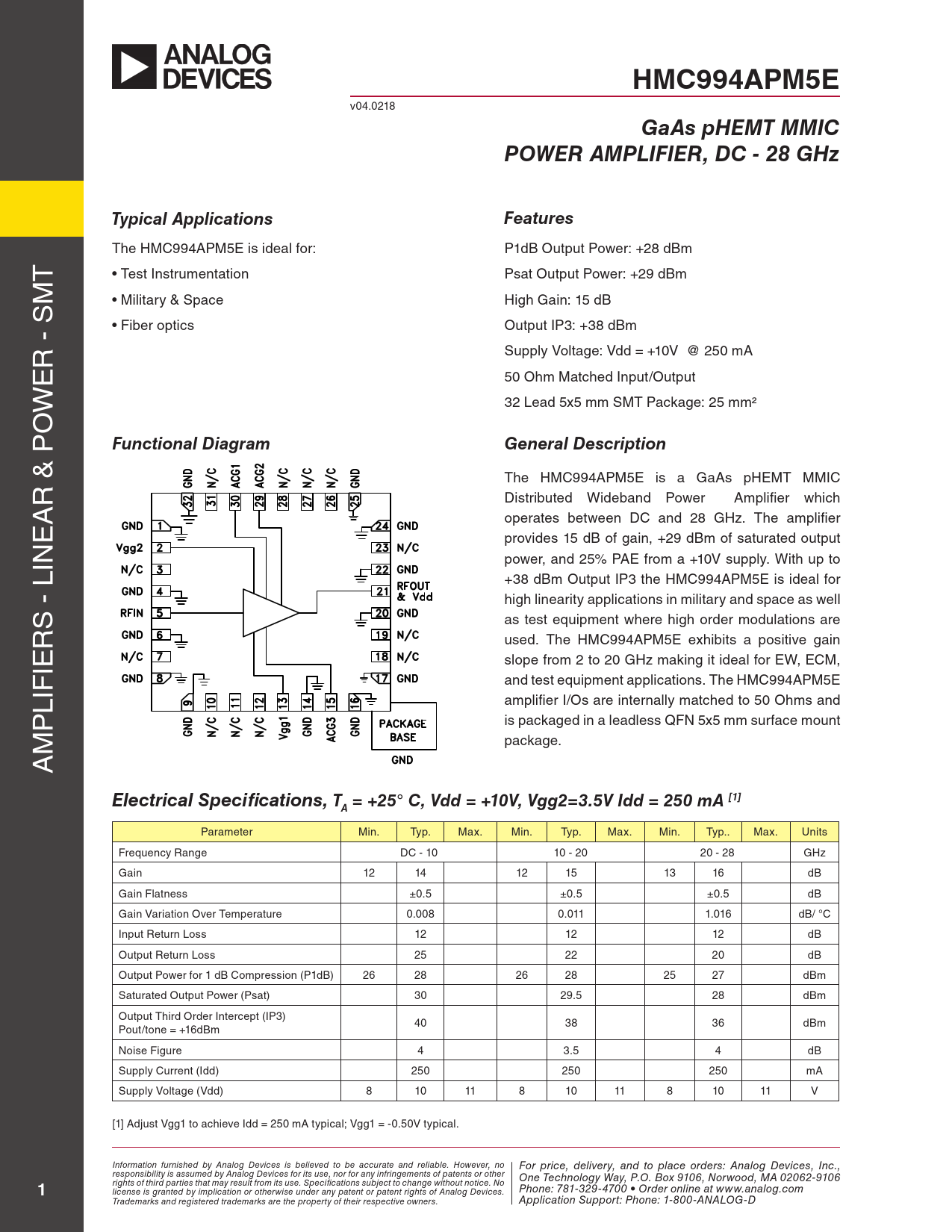

HMC994APM5E
v04.0218
GaAs pHEMT MMIC POWER AMPLIFIER, DC - 28 GHz Typical Applications Features
The HmC994Apm5e is ideal for: p1dB output power: +28 dBm T • Test instrumentation psat output power: +29 dBm m s • military & space High Gain: 15 dB • fiber optics output ip3: +38 dBm r - supply Voltage: Vdd = +10V @ 250 mA e 50 ohm matched input/output w 32 lead 5x5 mm smT package: 25 mm² o p
Functional Diagram General Description
The HmC994Apm5e is a GaAs pHemT mmiC r & Distributed wideband power Amplifier which A e operates between DC and 28 GHz. The amplifier provides 15 dB of gain, +29 dBm of saturated output power, and 25% pAe from a +10V supply. with up to lin +38 dBm output ip3 the HmC994Apm5e is ideal for high linearity applications in military and space as well s - as test equipment where high order modulations are r used. The HmC994Apm5e exhibits a positive gain ie slope from 2 to 20 GHz making it ideal for ew, eCm, and test equipment applications. The HmC994Apm5e lif amplifier i/os are internal y matched to 50 ohms and p is packaged in a leadless Qfn 5x5 mm surface mount m package. A
Electrical Specifications, T = +25° C, Vdd = +10V, Vgg2=3.5V Idd = 250 mA [1] A
parameter min. Typ. max. min. Typ. max. min. Typ.. max. Units frequency range DC - 10 10 - 20 20 - 28 GHz Gain 12 14 12 15 13 16 dB Gain flatness ±0.5 ±0.5 ±0.5 dB Gain Variation over Temperature 0.008 0.011 1.016 dB/ °C input return loss 12 12 12 dB output return loss 25 22 20 dB output power for 1 dB Compression (p1dB) 26 28 26 28 25 27 dBm saturated output power (psat) 30 29.5 28 dBm output Third order intercept (ip3) 40 38 36 dBm pout/tone = +16dBm noise figure 4 3.5 4 dB supply Current (idd) 250 250 250 mA supply Voltage (Vdd) 8 10 11 8 10 11 8 10 11 V [1] Adjust Vgg1 to achieve idd = 250 mA typical; Vgg1 = -0.50V typical. Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
1
rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 781-329-4700 • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 1-800-ANALOG-D Document Outline Typical Applications Features Functional Diagram General Description Electrical Specifications Performance Characteristics Gain & Return Loss Gain vs. Temperature Input Return Loss vs. Temperature Output Return Loss vs. Temperature Noise Figure vs. Frequency P1dB vs. Temperature Psat vs. Temperature P1dB vs. Vdd Psat vs. Vdd Output IP3 vs. Temperature @ Pout = 18 dBm Tone Power Compression @ 10 GHz Power Dissipation Second Harmonics vs. Temperature @ Pout = 18 dBm Second Harmonics vs. Vdd @ Pout = 18 dBm Second Harmonics vs. Pout Reverse Isolation vs Temperature Absolute Maximum Ratings Typical Supply Current vs. Vdd Outline Drawing Die Packaging Information Pad Descriptions Assembly Diagram Application Circuit
