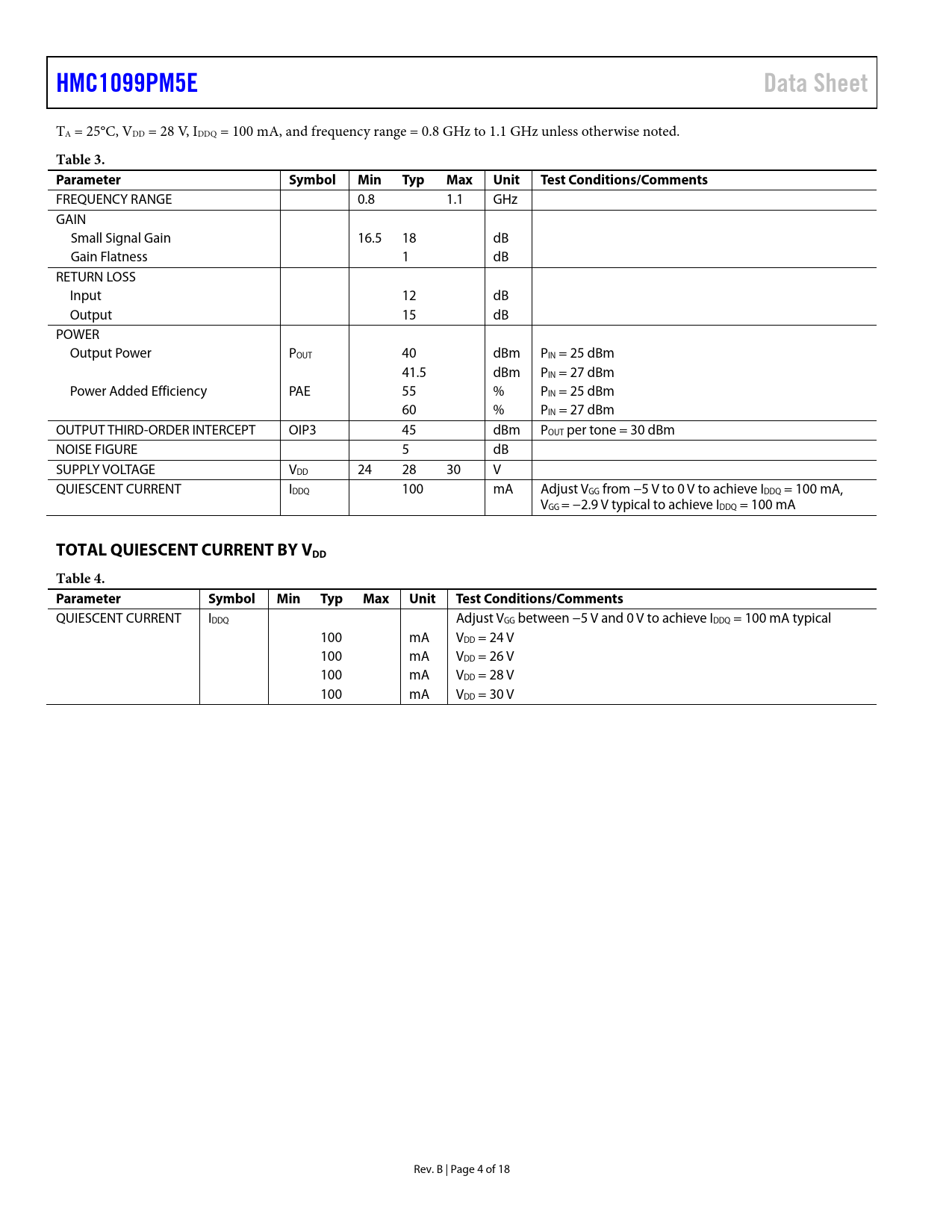

HMC1099PM5E Data Sheet
TA = 25°C, VDD = 28 V, IDDQ = 100 mA, and frequency range = 0.8 GHz to 1.1 GHz unless otherwise noted.
Table 3. Parameter Symbol Min Typ Max Unit Test Conditions/Comments
FREQUENCY RANGE 0.8 1.1 GHz GAIN Small Signal Gain 16.5 18 dB Gain Flatness 1 dB RETURN LOSS Input 12 dB Output 15 dB POWER Output Power POUT 40 dBm PIN = 25 dBm 41.5 dBm PIN = 27 dBm Power Added Efficiency PAE 55 % PIN = 25 dBm 60 % PIN = 27 dBm OUTPUT THIRD-ORDER INTERCEPT OIP3 45 dBm POUT per tone = 30 dBm NOISE FIGURE 5 dB SUPPLY VOLTAGE VDD 24 28 30 V QUIESCENT CURRENT IDDQ 100 mA Adjust VGG from −5 V to 0 V to achieve IDDQ = 100 mA, VGG = −2.9 V typical to achieve IDDQ = 100 mA
TOTAL QUIESCENT CURRENT BY VDD Table 4. Parameter Symbol Min Typ Max Unit Test Conditions/Comments
QUIESCENT CURRENT IDDQ Adjust VGG between −5 V and 0 V to achieve IDDQ = 100 mA typical 100 mA VDD = 24 V 100 mA VDD = 26 V 100 mA VDD = 28 V 100 mA VDD = 30 V Rev. B | Page 4 of 18 Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications Electrical Specifications Total Quiescent Current by VDD Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Interface Schematics Typical Performance Characteristics Theory of Operation Applications Information Evaluation PCB Outline Dimensions Ordering Guide
