Datasheet HMC1099 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | >10 W, GaN Power Amplifier, 0.01 GHz to 1.1 GHz |
| Pages / Page | 16 / 5 — Data Sheet. HMC1099. ABSOLUTE MAXIMUM RATINGS Table 5. Parameter1. … |
| Revision | A |
| File Format / Size | PDF / 395 Kb |
| Document Language | English |
Data Sheet. HMC1099. ABSOLUTE MAXIMUM RATINGS Table 5. Parameter1. Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
link to page 6 link to page 6 link to page 16

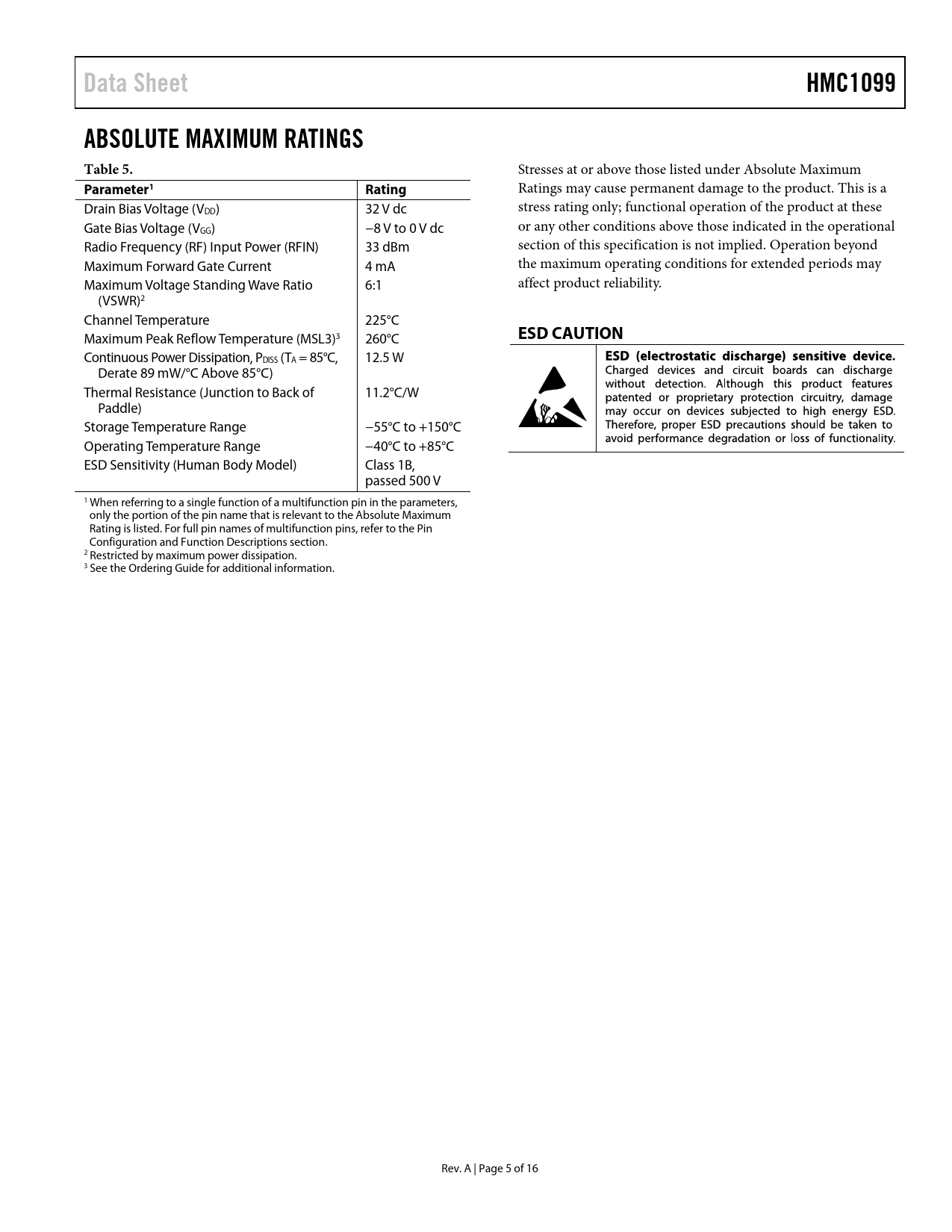

Data Sheet HMC1099 ABSOLUTE MAXIMUM RATINGS Table 5.
Stresses at or above those listed under Absolute Maximum
Parameter1 Rating
Ratings may cause permanent damage to the product. This is a Drain Bias Voltage (VDD) 32 V dc stress rating only; functional operation of the product at these Gate Bias Voltage (VGG) −8 V to 0 V dc or any other conditions above those indicated in the operational Radio Frequency (RF) Input Power (RFIN) 33 dBm section of this specification is not implied. Operation beyond Maximum Forward Gate Current 4 mA the maximum operating conditions for extended periods may Maximum Voltage Standing Wave Ratio 6:1 affect product reliability. (VSWR)2 Channel Temperature 225°C Maximum Peak Reflow Temperature (MSL3)3 260°C
