Datasheet HMC1144 (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | 35 GHz to 70 GHz, GaAs, pHEMT, MMIC, Medium Power Amplifier |
| Pages / Page | 16 / 3 — Data Sheet. HMC1144. ELECTRICAL SPECIFICATIONS 35 GHz TO 40 GHz FREQUENCY … |
| Revision | D |
| File Format / Size | PDF / 351 Kb |
| Document Language | English |

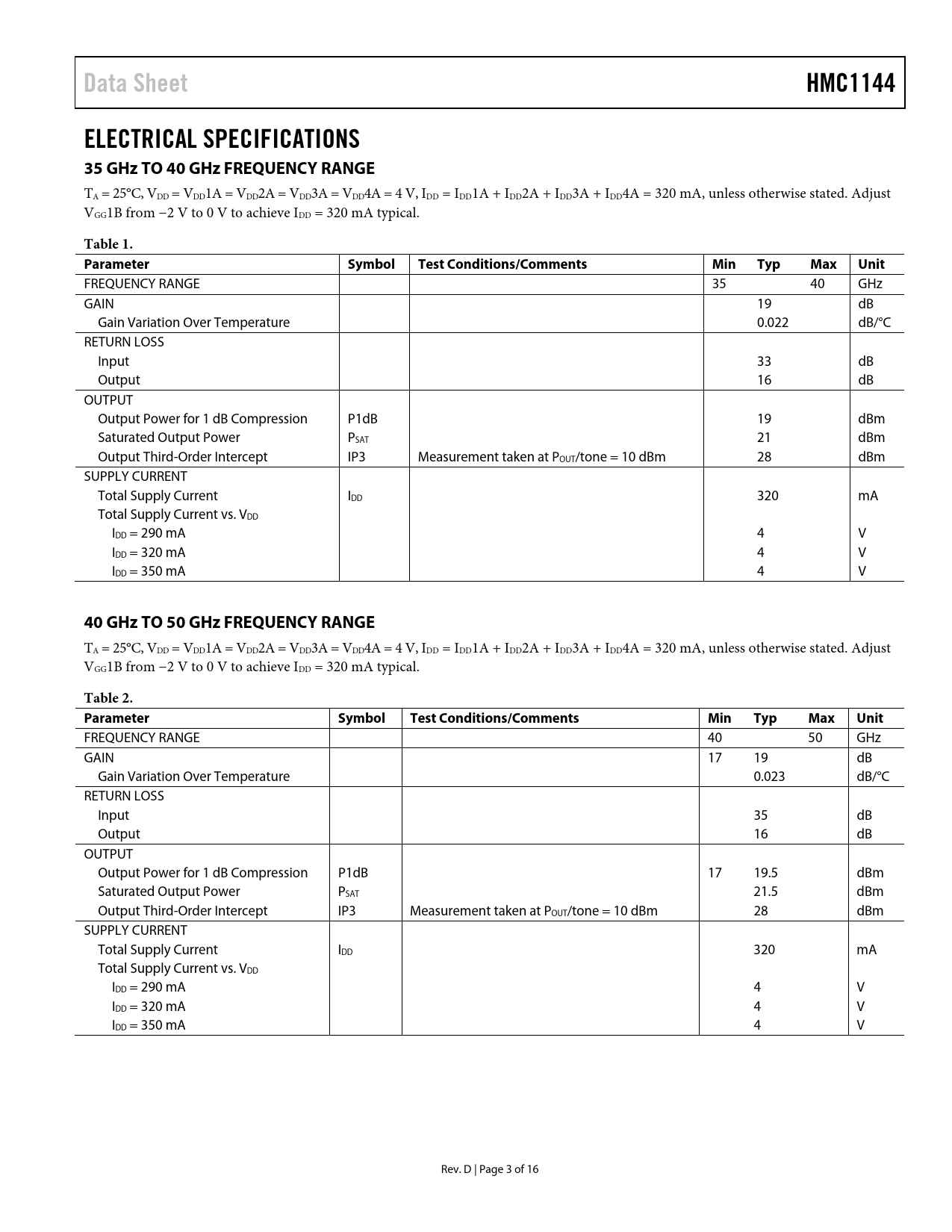

Data Sheet. HMC1144. ELECTRICAL SPECIFICATIONS 35 GHz TO 40 GHz FREQUENCY RANGE. Table 1. Parameter Symbol. Test
Model Line for this Datasheet
Text Version of Document
Data Sheet HMC1144 ELECTRICAL SPECIFICATIONS 35 GHz TO 40 GHz FREQUENCY RANGE
TA = 25°C, VDD = VDD1A = VDD2A = VDD3A = VDD4A = 4 V, IDD = IDD1A + IDD2A + IDD3A + IDD4A = 320 mA, unless otherwise stated. Adjust VGG1B from −2 V to 0 V to achieve IDD = 320 mA typical.
Table 1. Parameter Symbol Test Conditions/Comments Min Typ Max Unit
FREQUENCY RANGE 35 40 GHz GAIN 19 dB Gain Variation Over Temperature 0.022 dB/°C RETURN LOSS Input 33 dB Output 16 dB OUTPUT Output Power for 1 dB Compression P1dB 19 dBm Saturated Output Power PSAT 21 dBm Output Third-Order Intercept IP3 Measurement taken at POUT/tone = 10 dBm 28 dBm SUPPLY CURRENT Total Supply Current IDD 320 mA Total Supply Current vs. VDD IDD = 290 mA 4 V IDD = 320 mA 4 V IDD = 350 mA 4 V
40 GHz TO 50 GHz FREQUENCY RANGE
TA = 25°C, VDD = VDD1A = VDD2A = VDD3A = VDD4A = 4 V, IDD = IDD1A + IDD2A + IDD3A + IDD4A = 320 mA, unless otherwise stated. Adjust VGG1B from −2 V to 0 V to achieve IDD = 320 mA typical.
Table 2. Parameter Symbol Test Conditions/Comments Min Typ Max Unit
FREQUENCY RANGE 40 50 GHz GAIN 17 19 dB Gain Variation Over Temperature 0.023 dB/°C RETURN LOSS Input 35 dB Output 16 dB OUTPUT Output Power for 1 dB Compression P1dB 17 19.5 dBm Saturated Output Power PSAT 21.5 dBm Output Third-Order Intercept IP3 Measurement taken at POUT/tone = 10 dBm 28 dBm SUPPLY CURRENT Total Supply Current IDD 320 mA Total Supply Current vs. VDD IDD = 290 mA 4 V IDD = 320 mA 4 V IDD = 350 mA 4 V Rev. D | Page 3 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY ELECTRICAL SPECIFICATIONS 35 GHz TO 40 GHz FREQUENCY RANGE 40 GHz TO 50 GHz FREQUENCY RANGE 50 GHz TO 70 GHz FREQUENCY RANGE ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS INTERFACE SCHEMATICS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATIONS INFORMATION ALTERNATE BIASING CONFIGURATION MOUNTING AND BONDING TECHNIQUES FOR MILLIMETERWAVE GaAs MMICS Handling Precautions Mounting Wire Bonding TYPICAL APPLICATION CIRCUIT ASSEMBLY DIAGRAM OUTLINE DIMENSIONS ORDERING GUIDE
