Datasheet HMC409LP4E (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | GaAs InGaP HBT 1 WATT POWER AMPLIFIER, 3.3 - 3.8 GHz |
| Pages / Page | 8 / 6 — HMC409LP4E. GaAs InGaP HBT 1 WATT. POWER AMPLIFIER, 3.3 - 3.8 GHz. … |
| File Format / Size | PDF / 1.1 Mb |
| Document Language | English |
HMC409LP4E. GaAs InGaP HBT 1 WATT. POWER AMPLIFIER, 3.3 - 3.8 GHz. Application Circuit
Model Line for this Datasheet
Text Version of Document
HMC409LP4E
v04.1217
GaAs InGaP HBT 1 WATT POWER AMPLIFIER, 3.3 - 3.8 GHz Application Circuit
T m s r - e w o p
E

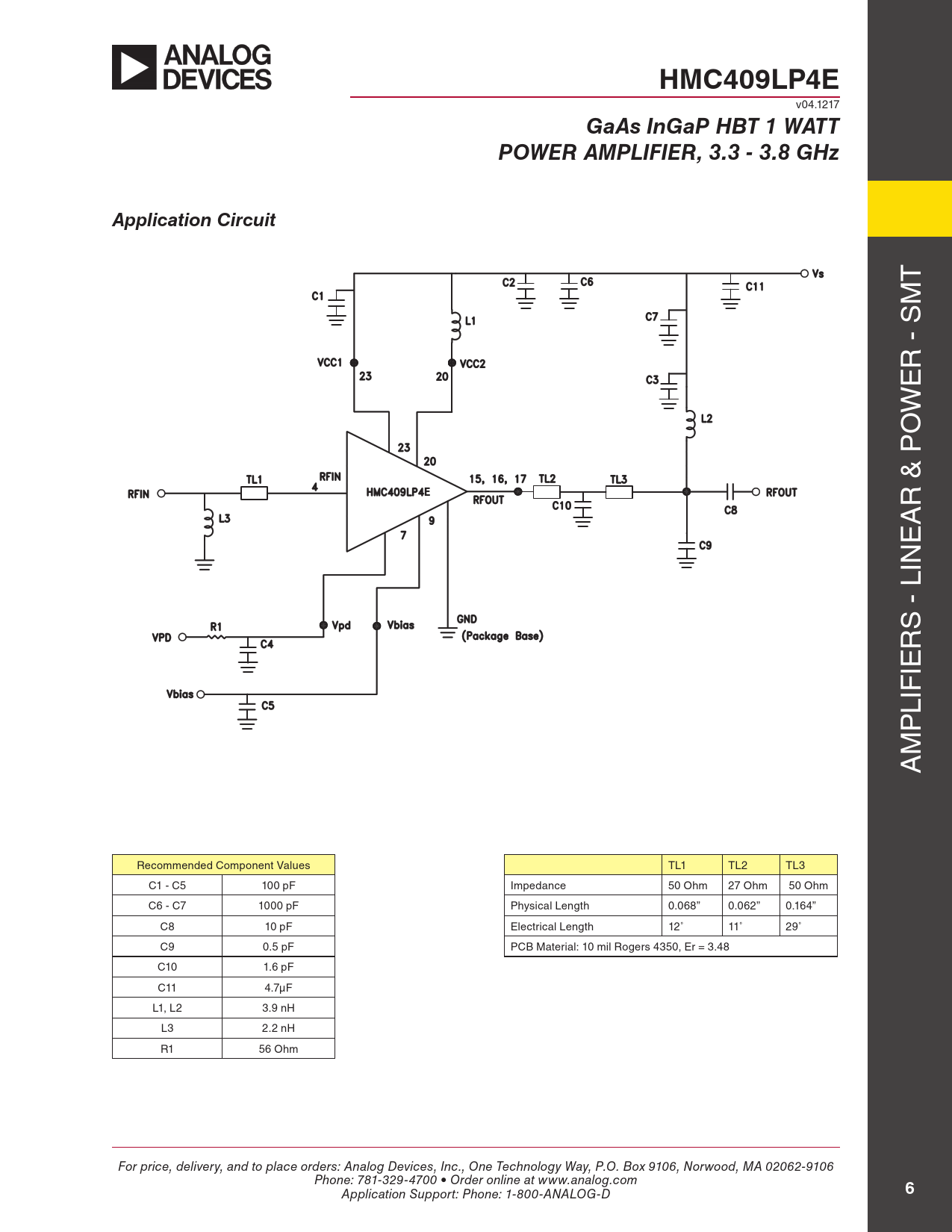

r & A e lin s - r ie lif p m A recommended Component Values Tl1 Tl2 Tl3 C1 - C5 100 pf impedance 50 ohm 27 ohm 50 ohm C6 - C7 1000 pf physical length 0.068” 0.062” 0.164” C8 10 pf electrical length 12˚ 11˚ 29˚ C9 0.5 pf pCB material: 10 mil rogers 4350, er = 3.48 C10 1.6 pf C11 4.7µf l1, l2 3.9 nH l3 2.2 nH r1 56 ohm For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D
6
