| Description | 2 GHz to 67 GHz, 500 MHz Bandwidth Envelope Detector |
| Pages / Page | 24 / 4 — ADL6012. Data Sheet. Parameter. Test Conditions/Comments. Min. Typ. Max. … |
| File Format / Size | PDF / 713 Kb |
| Document Language | English |

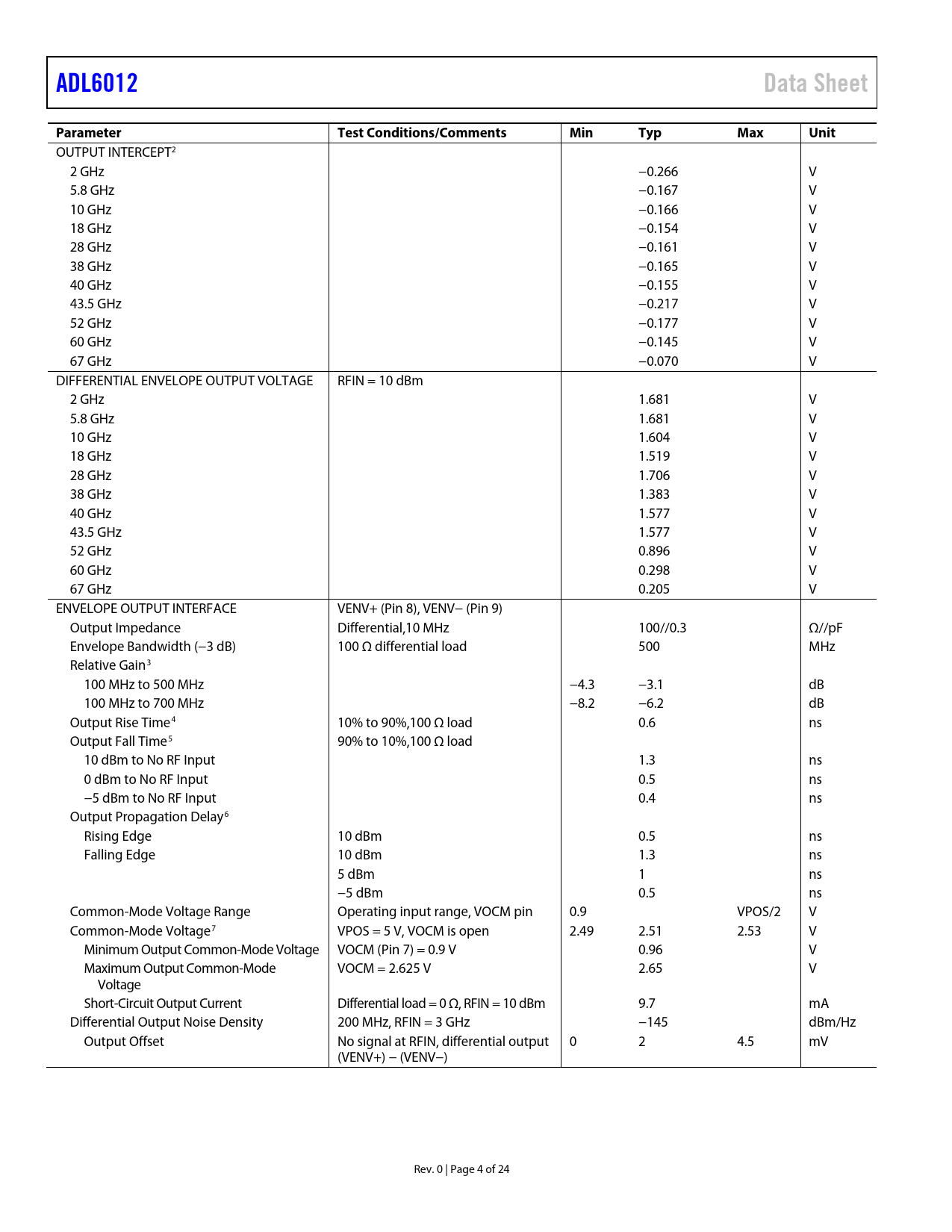

ADL6012. Data Sheet. Parameter. Test Conditions/Comments. Min. Typ. Max. Unit
Model Line for this Datasheet
Text Version of Document
link to page 5 link to page 5 link to page 5 link to page 5 link to page 5
ADL6012 Data Sheet Parameter Test Conditions/Comments Min Typ Max Unit
OUTPUT INTERCEPT2 2 GHz −0.266 V 5.8 GHz −0.167 V 10 GHz −0.166 V 18 GHz −0.154 V 28 GHz −0.161 V 38 GHz −0.165 V 40 GHz −0.155 V 43.5 GHz −0.217 V 52 GHz −0.177 V 60 GHz −0.145 V 67 GHz −0.070 V DIFFERENTIAL ENVELOPE OUTPUT VOLTAGE RFIN = 10 dBm 2 GHz 1.681 V 5.8 GHz 1.681 V 10 GHz 1.604 V 18 GHz 1.519 V 28 GHz 1.706 V 38 GHz 1.383 V 40 GHz 1.577 V 43.5 GHz 1.577 V 52 GHz 0.896 V 60 GHz 0.298 V 67 GHz 0.205 V ENVELOPE OUTPUT INTERFACE VENV+ (Pin 8), VENV− (Pin 9) Output Impedance Differential,10 MHz 100//0.3 Ω//pF Envelope Bandwidth (−3 dB) 100 Ω differential load 500 MHz Relative Gain3 100 MHz to 500 MHz −4.3 −3.1 dB 100 MHz to 700 MHz −8.2 −6.2 dB Output Rise Time4 10% to 90%,100 Ω load 0.6 ns Output Fall Time5 90% to 10%,100 Ω load 10 dBm to No RF Input 1.3 ns 0 dBm to No RF Input 0.5 ns −5 dBm to No RF Input 0.4 ns Output Propagation Delay6 Rising Edge 10 dBm 0.5 ns Falling Edge 10 dBm 1.3 ns 5 dBm 1 ns −5 dBm 0.5 ns Common-Mode Voltage Range Operating input range, VOCM pin 0.9 VPOS/2 V Common-Mode Voltage7 VPOS = 5 V, VOCM is open 2.49 2.51 2.53 V Minimum Output Common-Mode Voltage VOCM (Pin 7) = 0.9 V 0.96 V Maximum Output Common-Mode VOCM = 2.625 V 2.65 V Voltage Short-Circuit Output Current Differential load = 0 Ω, RFIN = 10 dBm 9.7 mA Differential Output Noise Density 200 MHz, RFIN = 3 GHz −145 dBm/Hz Output Offset No signal at RFIN, differential output 0 2 4.5 mV (VENV+) − (VENV−) Rev. 0 | Page 4 of 24 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS MEASUREMENT SETUPS THEORY OF OPERATION BASIC CONNECTIONS RF INPUT ENVELOPE OUTPUT INTERFACE COMMON-MODE VOLTAGE INTERFACE ENABLE INTERFACE DECOUPLING INTERFACE PCB LAYOUT RECOMMENDATIONS SYSTEM CALIBRATION AND MEASUREMENT ERROR APPLICATIONS INFORMATION EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
