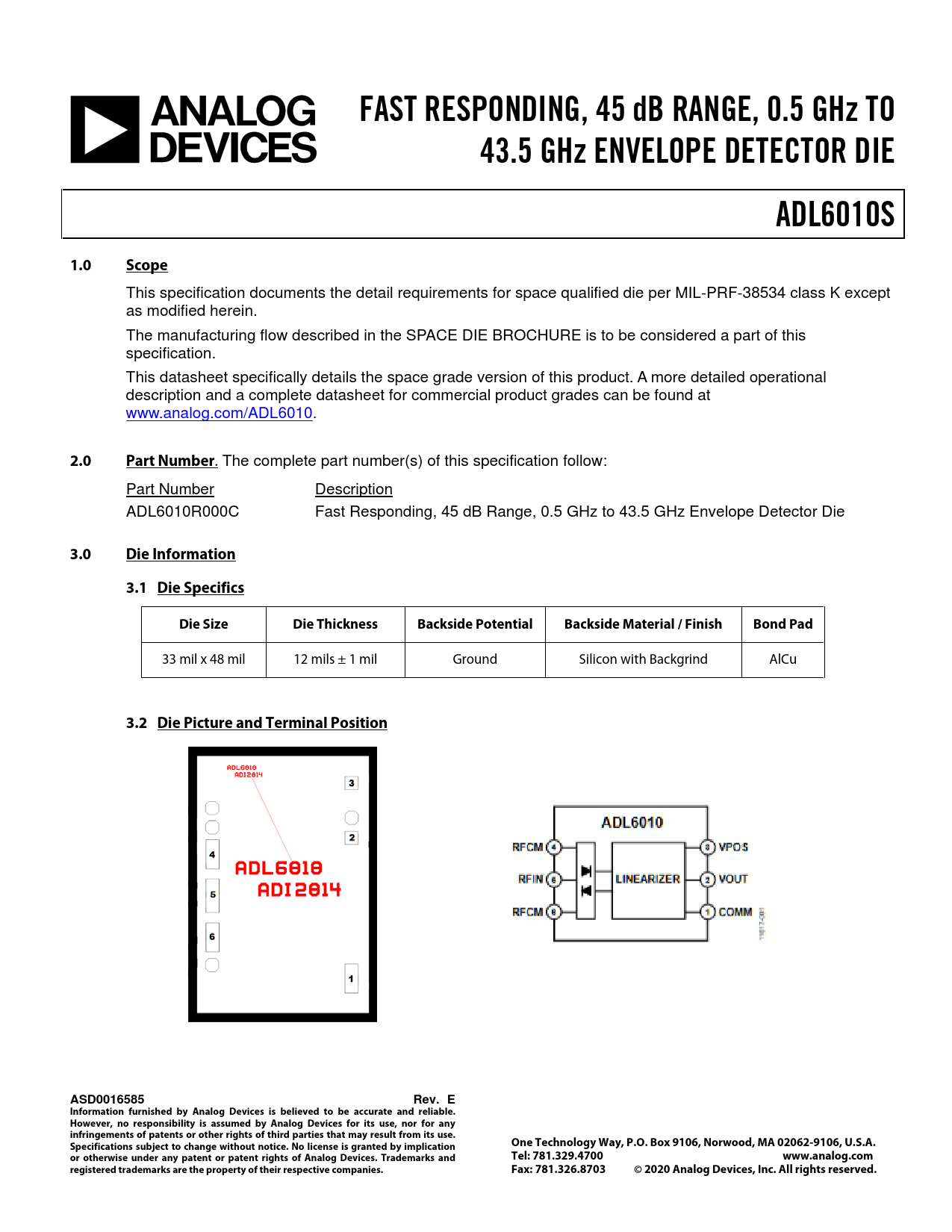

FAST RESPONDING, 45 dB RANGE, 0.5 GHz TO. 43.5 GHz ENVELOPE DETECTOR DIE. ADL6010S. 1.0. Scope. 2.0. Part Number. 3.0. Die Information
Model Line for this Datasheet
Text Version of Document
FAST RESPONDING, 45 dB RANGE, 0.5 GHz TO 43.5 GHz ENVELOPE DETECTOR DIE ADL6010S 1.0 Scope
This specification documents the detail requirements for space qualified die per MIL-PRF-38534 class K except as modified herein. The manufacturing flow described in the SPACE DIE BROCHURE is to be considered a part of this specification. This datasheet specifically details the space grade version of this product. A more detailed operational description and a complete datasheet for commercial product grades can be found at www.analog.com/ADL6010.
2.0 Part Number
. The complete part number(s) of this specification follow: Part Number Description ADL6010R000C Fast Responding, 45 dB Range, 0.5 GHz to 43.5 GHz Envelope Detector Die
3.0 Die Information 3.1 Die Specifics Die Size Die Thickness Backside Potential Backside Material / Finish Bond Pad
33 mil x 48 mil 12 mils ± 1 mil Ground Silicon with Backgrind AlCu
