| Manufacturer | Menlo Micro |
| Description | DC to 26 GHz High Power RF Switch |
| Pages / Page | 22 / 3 — v2.0. Table 2. Parameter. Minimum. Typical. Maximum. Unit. Operating … |
| File Format / Size | PDF / 1.3 Mb |
| Document Language | English |
v2.0. Table 2. Parameter. Minimum. Typical. Maximum. Unit. Operating Frequency Range. CW Power @ 6 GHz3. Peak Power @ 6 GHz4
Model Line for this Datasheet
Text Version of Document

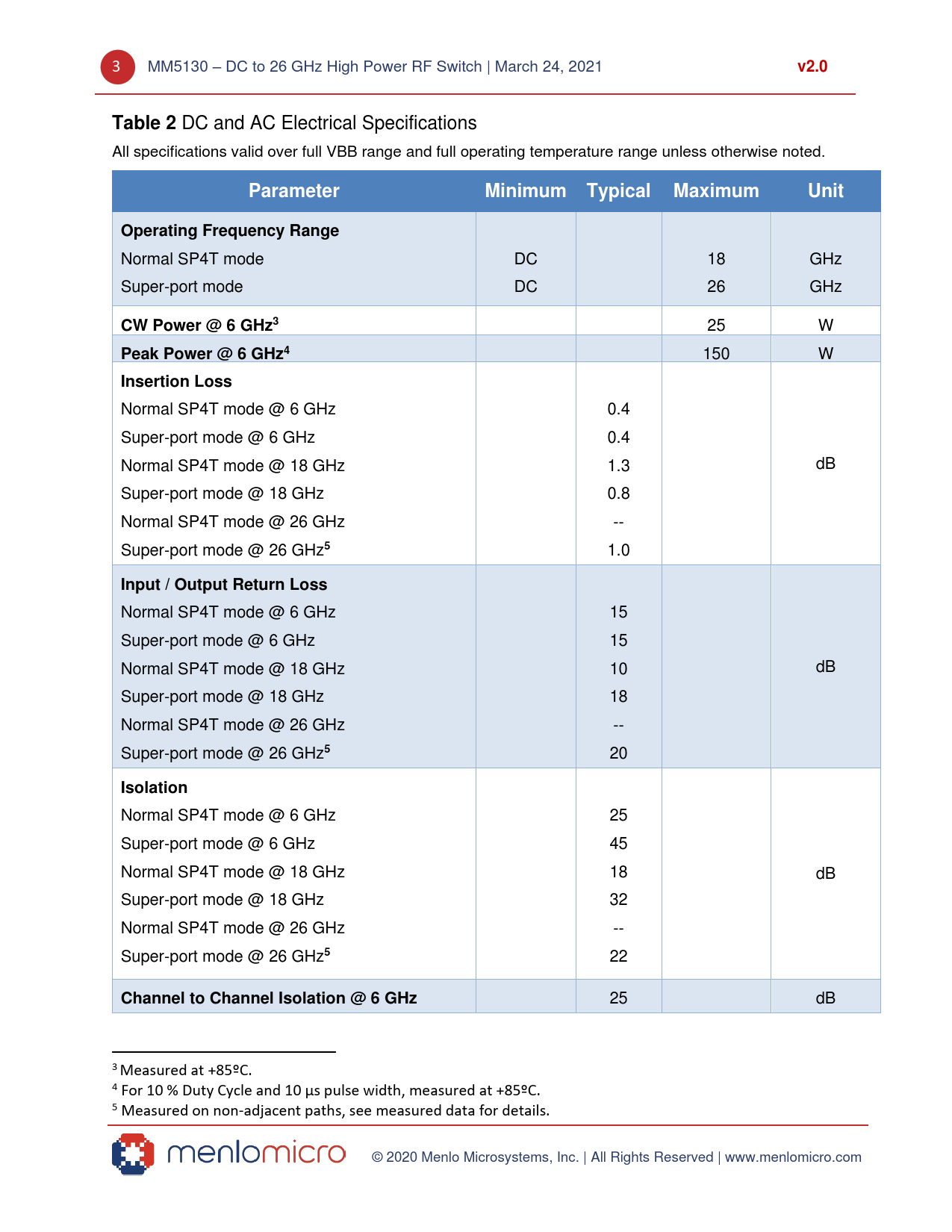

3 MM5130 – DC to 26 GHz High Power RF Switch | March 24, 2021
v2.0 Table 2
DC and AC Electrical Specifications All specifications valid over full VBB range and full operating temperature range unless otherwise noted.
Parameter Minimum Typical Maximum Unit Operating Frequency Range
Normal SP4T mode DC 18 GHz Super-port mode DC 26 GHz
CW Power @ 6 GHz3
25 W
Peak Power @ 6 GHz4
150 W
Insertion Loss
Normal SP4T mode @ 6 GHz 0.4 Super-port mode @ 6 GHz 0.4 Normal SP4T mode @ 18 GHz 1.3 dB Super-port mode @ 18 GHz 0.8 Normal SP4T mode @ 26 GHz -- Super-port mode @ 26 GHz
5
1.0
Input / Output Return Loss
Normal SP4T mode @ 6 GHz 15 Super-port mode @ 6 GHz 15 Normal SP4T mode @ 18 GHz 10 dB Super-port mode @ 18 GHz 18 Normal SP4T mode @ 26 GHz -- Super-port mode @ 26 GHz
5
20
Isolation
Normal SP4T mode @ 6 GHz 25 Super-port mode @ 6 GHz 45 Normal SP4T mode @ 18 GHz 18 dB Super-port mode @ 18 GHz 32 Normal SP4T mode @ 26 GHz -- Super-port mode @ 26 GHz
5
22
Channel to Channel Isolation @ 6 GHz
25 dB 3 Measured at +85ºC. 4 For 10 % Duty Cycle and 10 µs pulse width, measured at +85ºC. 5 Measured on non-adjacent paths, see measured data for details. © 2020 Menlo Microsystems, Inc. | All Rights Reserved | www.menlomicro.com
