Datasheet SQJA81EP (Vishay) - 7
| Manufacturer | Vishay |
| Description | Automotive P-Channel 80 V (D-S) 175 °C MOSFET |
| Pages / Page | 9 / 7 — Package Information. MILLIMETERS. INCHES. DIM. MIN. NOM. MAX. Note |
| File Format / Size | PDF / 235 Kb |
| Document Language | English |
Package Information. MILLIMETERS. INCHES. DIM. MIN. NOM. MAX. Note
Model Line for this Datasheet
Text Version of Document

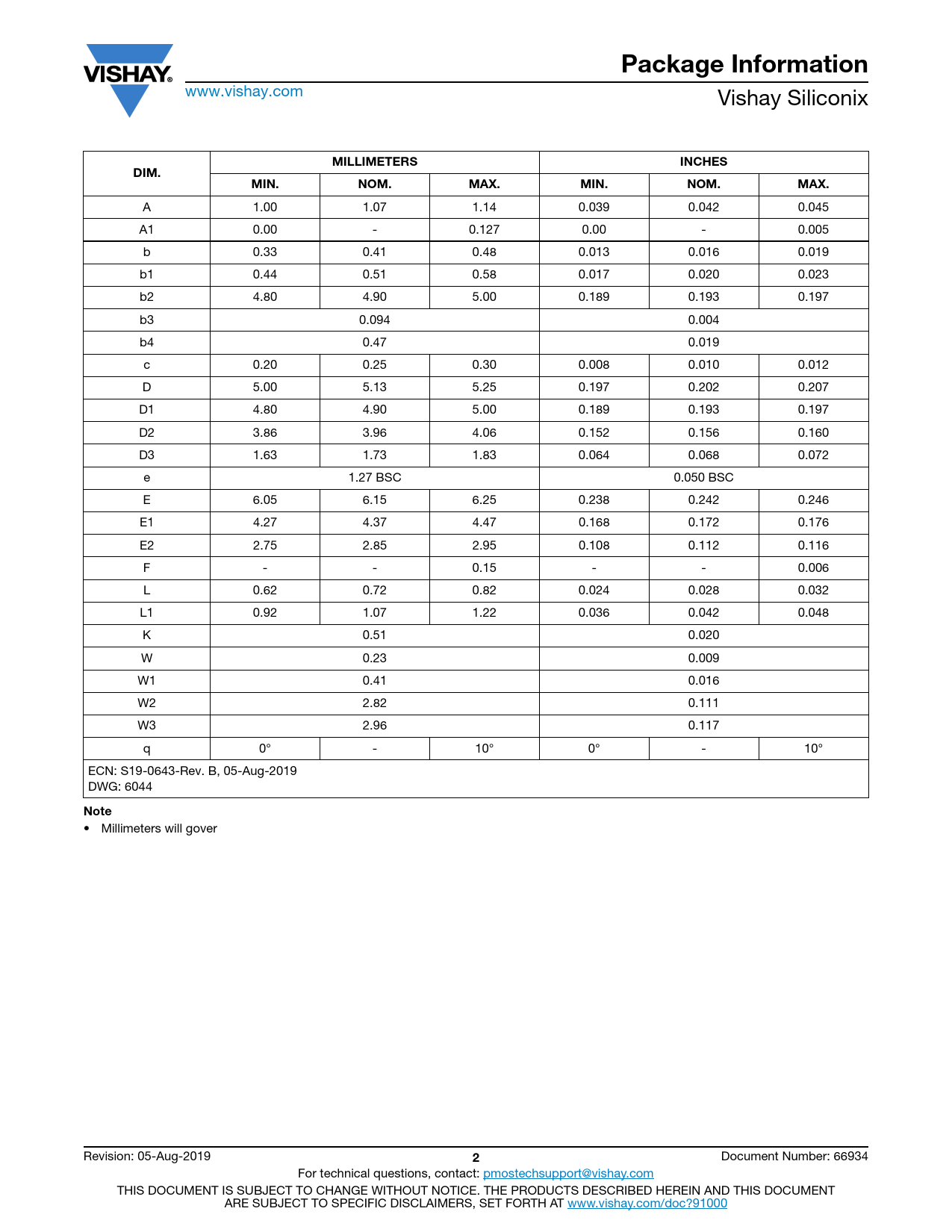

Package Information
www.vishay.com Vishay Siliconix
MILLIMETERS INCHES DIM. MIN. NOM. MAX. MIN. NOM. MAX.
A 1.00 1.07 1.14 0.039 0.042 0.045 A1 0.00 - 0.127 0.00 - 0.005 b 0.33 0.41 0.48 0.013 0.016 0.019 b1 0.44 0.51 0.58 0.017 0.020 0.023 b2 4.80 4.90 5.00 0.189 0.193 0.197 b3 0.094 0.004 b4 0.47 0.019 c 0.20 0.25 0.30 0.008 0.010 0.012 D 5.00 5.13 5.25 0.197 0.202 0.207 D1 4.80 4.90 5.00 0.189 0.193 0.197 D2 3.86 3.96 4.06 0.152 0.156 0.160 D3 1.63 1.73 1.83 0.064 0.068 0.072 e 1.27 BSC 0.050 BSC E 6.05 6.15 6.25 0.238 0.242 0.246 E1 4.27 4.37 4.47 0.168 0.172 0.176 E2 2.75 2.85 2.95 0.108 0.112 0.116 F - - 0.15 - - 0.006 L 0.62 0.72 0.82 0.024 0.028 0.032 L1 0.92 1.07 1.22 0.036 0.042 0.048 K 0.51 0.020 W 0.23 0.009 W1 0.41 0.016 W2 2.82 0.111 W3 2.96 0.117 q 0° - 10° 0° - 10° ECN: S19-0643-Rev. B, 05-Aug-2019 DWG: 6044
