Datasheet SQJA81EP (Vishay) - 8
| Manufacturer | Vishay |
| Description | Automotive P-Channel 80 V (D-S) 175 °C MOSFET |
| Pages / Page | 9 / 8 — PAD Pattern. RECOMMENDED MINIMUM PAD FOR PowerPAK® SO-8L SINGLE |
| File Format / Size | PDF / 235 Kb |
| Document Language | English |
PAD Pattern. RECOMMENDED MINIMUM PAD FOR PowerPAK® SO-8L SINGLE
Model Line for this Datasheet
Text Version of Document
PAD Pattern
www.vishay.com Vishay Siliconix

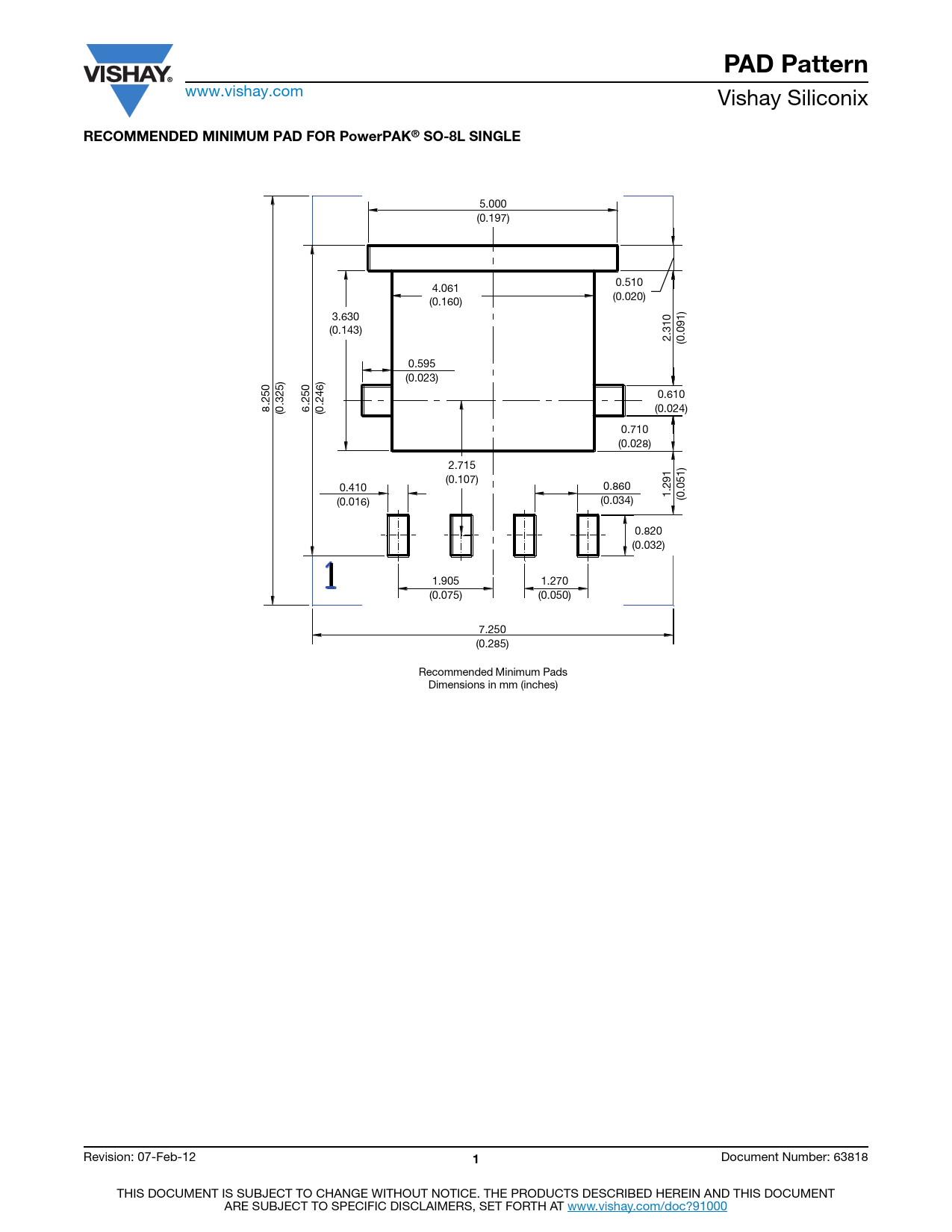

RECOMMENDED MINIMUM PAD FOR PowerPAK® SO-8L SINGLE
5.000 (0.197) 0.510 4.061 (0.020) (0.160) 3.630 (0.143) 2.310 (0.091) 0.595 (0.023) 0.610 8.250 (0.024) (0.325) 6.250 (0.246) 0.710 (0.028) 2.715 (0.107) 0.410 0.860 1.291 (0.051) (0.016) (0.034) 0.820 (0.032) 1.905 1.270 (0.075) (0.050) 7.250 (0.285) Recommended Minimum Pads Dimensions in mm (inches) Revision: 07-Feb-12
1
Document Number: 63818 THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
