MAX17270/MAX17271 nanoPower Triple-Output, Single-Inductor, Multiple-Output (SIMO) Buck-Boost Regulator
Package Information (continued)

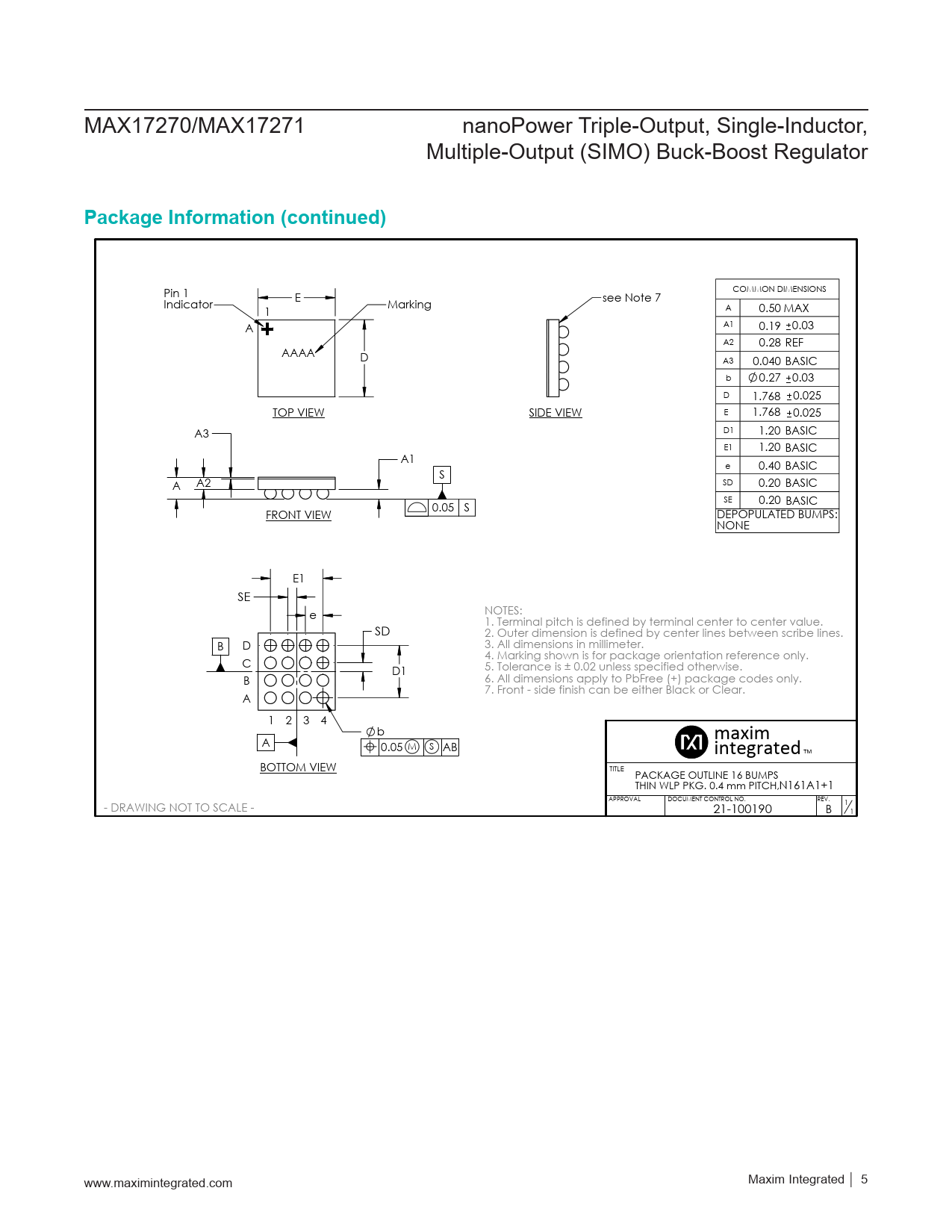

Pin 1 COMMON DIMENSIONS E Indicator Marking see Note 7 1 A 0.50 MAX A A1 0.19 0.03 A2 0.28 REF AAAA D A3 0.040 BASIC b 0.27 0.03 D 1.768 0.025 TOP VIEW SIDE VIEW E 1.768 0.025 A3 D1 1.20 BASIC E1 1.20 BASIC A1 e 0.40 BASIC S A2 A SD 0.20 BASIC SE 0.05 S 0.20 BASIC FRONT VIEW DEPOPULATED BUMPS: NONE E1 SE e NOTES: 1. Terminal pitch is defined by terminal center to center value. SD 2. Outer dimension is defined by center lines between scribe lines. B D 3. All dimensions in millimeter. 4. Marking shown is for package orientation reference only. C D1 5. Tolerance is ± 0.02 unless specified otherwise. B 6. All dimensions apply to PbFree (+) package codes only. 7. Front - side finish can be either Black or Clear. A 1 2 3 4 b maxim A 0.05 M S AB integratedTM BOTTOM VIEW TITLE PACKAGE OUTLINE 16 BUMPS THIN WLP PKG. 0.4 mm PITCH,N161A1+1 APPROVAL DOCUMENT CONTROL NO. REV. 1 - DRAWING NOT TO SCALE - 21-100190 B 1 www.maximintegrated.com Maxim Integrated │ 5
